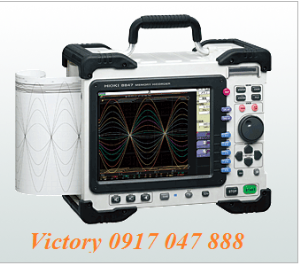

| Number of channels | [8 analog input modules]: 16 analog channels + 16 logic channels (standard) [5 analog input modules + 3 logic input modules]: 10 analog channels + 64 logic channels (standard 16 channels + 48 channels in logic input modules) * For analog modules, channels are insulated vs. each other and vs. unit ground. For logic modules and integrated standard logic channels, all channels use the unit ground. |
||||||
| Measurement ranges (20 div full-scale) |
5mV to 20V/div, 12ranges, resolution : 1/100 of range (using the 8966) 5mV to 20V/div, 12ranges, resolution : 1/1600 of range (using the 8968) |
||||||
| Max. allowable input | 400 V DC (using the 8966/8968) | ||||||
| Frequency characteristics | DC to 5 MHz (-3dB, using the 8966), DC to 100 kHz (-3dB, using the 8968) | ||||||
| Time axis (MEMORY) |
5μs to 5min/div, 26ranges,at 100 points/div resolution, three steps of time-axis magnification from 2× to 10×, and 13 steps of time-axis compression from 1/2× to 1/20,000×. | ||||||
| Measurement functions | MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT |
||||||
| Other functions | Waveform judgment (at Memory, X-Y recorder, or FFT function) | ||||||
| Memory capacity |
|
||||||
| Data storage media | USB memory, CF Card slot × 1 (Up to 2 GB), Hard disk drive (option, 80GB) | ||||||
| Printing | 216mm (8.50in) × 30m (98.43ft), thermal paper roll, Recording speed : Max. 50mm (1.97in)/sec | ||||||
| Display | 10.4 inch TFT color LCD (SVGA, 800×600 dots) | ||||||
| Displayable languages | English, Japanese, Korean, Chinese | ||||||
| External interfaces | [LAN]:100BASE-TX; Functions: DHCP, DNS supported, FTP server, HTTP server [USB]: USB2.0 compliant, series A receptacle 1 port, series B receptacle 1 port (file transfer to PC, remort control from PC) |
||||||
| Power supply | 100 to 240V AC, 50/60Hz (130VA max., when using printer: 220VA max.) 10 to 28V DC (when using the optional factory-installed DC POWER UNIT 9784) |
||||||
| Dimensions, mass | 351mm (13.82in) W × 261mm (10.28in) H × 140mm (5.51in) D, 7.6kg (268.1oz) (main unit only) | ||||||
| Supplied accessories | Instruction Manual×1, Measurement Guide×1, Application Disk (Wave Viewer Wv, Communication Commands table)×1, Power cord×1, Input cord label×1, USB cable×1, Printer paper×1, Roll paper attachment×2 |
