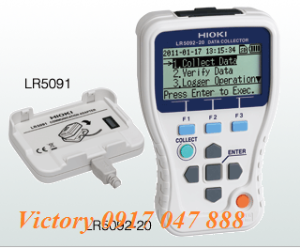

Data Logers HIOKI LR5091-92

Giá bán : Vui lòng gọi

Số lượng:

GỌI NGAY

Features Record load current of 50Hz/60Hz lines Record leak current Measurement items AC Current (2 channels) Measurement range When Using 9669 :1000A range When Using CT6500 :50.00A/ 500.0A range When Using 9695-02 :5.000A/ 50.00A range When Using 9675 :500.0mA/ 5.000A range When Using 9657-10 :500.0mA/ 5.000A range Basic Accuracy ±0.5%rdg. ±5dgt.+Clamp sensor accuracy Waterproof and dustproof Not waterproof Operating temperature and humidity -0°C(32°F) to 50°C(122°F) , 80%rh or less (

	LR5091	LR5092
Interface with Data Logger	Infrared optical communications	Infrared optical communications
Interface with PC	USB2.0, Full Speed, Series Mini B Receptacle	USB2.0, Full Speed, Series Mini B Receptacle
Display	-	Dot-matrix LCD (128 × 64 dots)
Display items	-	Data Logger configurations Collected data
Internal memory capacity of data	-	60,000 data elements ×16ch (instantaneous value mode) 15,000 data elements ×16ch (statistical value mode)
Removable storage media	-	SD Card (SDHC, Max 32GB) Save data and configurations
Power supply	USB bus power	DC3V (LR6 (AA) Alkaline battery 1.5V×2) USB bus power
Battery life	-	Approx. 12 hours or 500 times of data collection
Dimensions & Mass	Approx. 83mm(3.27 in)W×61mm(2.40in) H×19mm(0.75in)D, 43g(1.5oz)	91mm(3.58in)W×141mm(5.55in)H×31mm(1.22in)D 215g(7.6oz) (excluding batteries)
Accessories	USB cable (1m)×1, CD (Application software "LR5000 Utility") × 1	Instruction manual ×1, Operation manual×1, LR6 (AA) Alkaline battery 1.5V×2, USB cable(1m)×1, CD (Application software "LR5000 Utility") × 1
