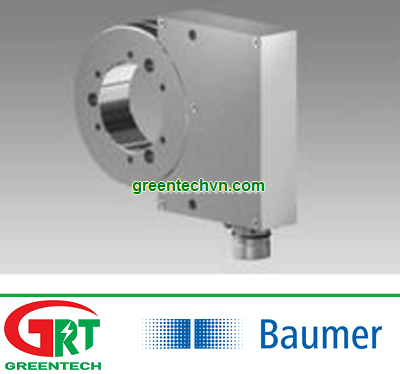

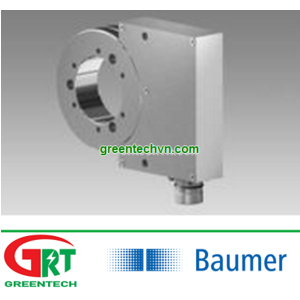

| Technical data - electrical ratings | |
|---|---|
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-3 |
| Approval | CE |
| Technical data - electrical ratings (SSI) | |
| Voltage supply | 4.5...30 VDC |
| Interface | SSI |
| Function | Singleturn |
| Steps per turn | ≤131072 / 17 bit |
| Sensing method | Magnetic |
| Code | Gray or binary |
| Code sequence | CW default |
| Additional outputs | Square-wave TTL (RS422)Square-wave universal HTL/TTL SinCos |
| Technical data - electrical ratings (square-wave) | |
| Voltage supply | 4.5...30 VDC |
| Consumption w/o load | ≤300 mA |
| Pulses per revolution | 1...131072 |
| Phase shift | 90° ±10° |
| Scan ratio | 40...60 % |
| Sensing method | Magnetic |
| Output frequency | ≤2 MHz |
| Output signals | A+, A-, B+, B- |
| Output stages | HTL TTL/RS422 |
| Technical data - electrical ratings (SinCos) | |
| Voltage supply | 4.5...30 VDC |
| Consumption w/o load | ≤300 mA |
| Sinewave cycles per turn | 1...8192 |
| Phase shift | 90° ±5° |
| Sensing method | Magnetic |
| Output signals | A+, A-, B+, B- |
| Output stages | SinCos 1 Vpp |
| Difference of SinCos amplitude | ≤20 mV |
| Harmonics typ. | -40 dB |
| DC offset | ≤20 mV |
| Bandwidth | 400 kHz (-3 dB) |
| Technical data - mechanical design | |
| Sensor head | FPGA signal processing |
| Size (flange) | ø101.3 mm |
| Shaft type | ø16...80 mm (through hollow shaft) |
| Axial tolerance | ±1 mm (wheel/head) |
| Radial tolerance | 0.1...0.5 mm (wheel/head) |
| Protection DIN EN 60529 | IP 67 (head) IP 68 (wheel) |
| Operating temperature | -20...+85 °C |
| Operating speed | ≤8000 rpm |
| Resistance | IEC 60068-2-6 Vibration 30 g, 55-2000 Hz IEC 60068-2-27 Shock 300 g, 2 ms |
| Accuracy of magnetic measure | ±400 ″ |
| Connection | Flange connector M23, 17-pin |
