SNFO01 | Slipring | Senring | Vành trượt cáp quang | Fiber optic slip ring | Senring Vietnam

(0 đánh giá)

Mã SP: SNFO01 | Slipring
Vui lòng gọi

Xuất xứ :Senring Vietnam | Greentech Vietnam

Nơi rao bán :Toàn quốc

Tình trạng :Mới 100%

Ngày cập nhật :14-01-2021 19:05:13

Bảo hành :12 tháng

Anti-interference, low cost Contact resistance is less than the 1mΩ No maintenance, better reliability than traditional slip ring Suitable for signal and power transmitting of any rotating devices

LIÊN HỆ VỚI NGƯỜI BÁN

CÔNG TY TNHH THƯƠNG MẠI DỊCH VỤ GREENTECH

33 Đường DC5, Phường Sơn Kỳ, Quận Tân Phú, Tp.HCM

0935 04 1313

[email protected]

http://greentechvn.com

Ghi chú: GianHangVN không trực tiếp bán sản phẩm, vui lòng liên hệ trực tiếp với người bán bên trên.

SNFO01 single channel fiber optic rotary joint





SNFO01 fiber optic rotary joint, 1 channel fiber(single mode or multi-mode), no any damage of transmit date when 360° any direction of rotation, especially suitable for application which needs transmitting large datas or signals from static device to rotary position when continuous or intermittent rotating. It could improve mechanical performance,simplify operation and avoid the damage due to rotating

Low insertion loss, high speed

No contact, no friction, long life, up to 100 millions rounds more(single channel about 200-300 million rounds)

Small volume, light weight, high grade sealing

Fiber optic transimt signal is secretly,no electromagnetic interference, it also can be remote transmission

Model Wavelength Channel Insertion loss Fiber length Connector
SNFO01-131 1310nm 1 channel single-mode/multi-mode <2.5dB 1000mm FC
SNFO01-155 1550nm 1 channel single-mode <2.5dB 1000mm FC
SNFO01(single channel fiber optic rotary joint) technical specification
Wavelength 1310nm/1550nm insertion loss <2.5dB (normal: <0.8dB)
Insertion loss fluctuation <+/-0.25 dB Return loss (SM/MM) >30 dB(RFC/RST)
Max speed 2000 RPM >Pressure 1000 psi
Traction 10N Torque 0.1N/m
Working life 300 millions Optic power 23 dBm
Work Temperature -40 to 85 °C Storage temperature -50 to 85 °C
Sealing types Pigtail Housing material Stainless steel
Fiber type Single-mode,multi-mode connectors FC
IP grade IP 68 Weight 50g
Fiber length 1000mm

Typical application

  • Robots
  • Material transferring system
  • Rotating tower of chariot
  • Remote control system
  • Radar antenna
  • Optical sensing turntable (rate table) transmission and control of high-speed video, digital, analog signal
  • Medical system
  • Video monitoring system
  • Protection of national or international security system for submarine operating system

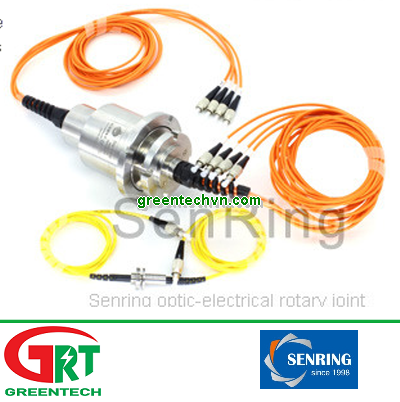

SNFO series fiber optic slip ring(optic-electrical rotary joint)



  • Produced by Senring developed Fiber optic rotary joint also called optic-electrical slip ring, using fiber for transmitting, which provides the best solution for the data transmitting of rotary connections systems. is suitable for application which needs transmitting large datas or signals from static device to rotary position when continuous or intermittent rotating. optic electrical rotary joint could improve mechanical performance, simplify operation and avoid the damage due to rotating. It is optional together with traditional slip ring to transmit power and high speed data. Relying on strong R&D ability and experienced engineers, Senring developed Optic-electrical slip ring successfully, with reliabe performance, excellent quality and 360° any direction of rotation
  • Transmitting power,control signal power,and micro electrical signals from instrument,control automatic of computer
  • Transmitting fiber signal type signal-mode or multi-mode, and more circuits options
  • Optic-electric slip ring can be make customized followed customer's request
  • Combined optic together with traditional slip ring to transmit power and high speed data


Model# PDF Fiber channel Wavelength Combined for power and signal Max Speed More
1 channel 1310nm/1550nm -- 2000RPM
1 channel 1310nm/1550nm 1~72 250RPM
2 channel 1310nm/850nm -- 250RPM
2 channel 1310nm/850nm 1~36 250RPM
4 channel 1310nm/850n -- 250RPM
4 channel 1310nm/850n 1~36 250RPM
6 channels 850nm/1310nm 1~36 300RPM
8 channels 850nm/1310nm 1~36 300RPM
8 channels 850nm/1310nm 1~36 300RPM
6 channels 850nm/1310nm 1~36 300RPM

Mercury slip ring A series (mercury rotary joint)



  • Anti-interference, low cost
  • Contact resistance is less than the 1mΩ
  • No maintenance, better reliability than traditional slip ring
  • Suitable for signal and power transmitting of any rotating devices
  • Mercury slip ring is used with special sealing materials,insulation and conductive technology production
  • Housing material is made of aluminum alloy or stainless steel
  • Applied for any rotating objects of signal transmitting such as:tiny voltage¤t,EMF,thermocouple,strain gauge,audio and video signals, high frequency,computer signal and electric power connections;


Model# PDF Poles Current(A)/Poles Dielectric Strength AC/DC
AC/DC(V)
Max Frequency(MHZ) Contact Resistance Max Speed Work Temperature
Max/Min ℃
Torque
(x10-3Nm)
Insulation Resistance
1 pole 250 -- 200 <1mΩ 1200 -29℃~60℃ 250 --
1 pole 350 -- 200 <1mΩ 800 -29℃~60℃ 300 --
1 pole 250 -- 200 <1mΩ 1200 -29℃~60℃ 250 --
1 pole 650 -- 200 <1mΩ 200 -29℃~60℃ 1000 --
1 pole 1500 -- 200 <1mΩ 100 -29℃~60℃ 2000 --
2 pole 30A 250 200 <1mΩ 1800 -29℃~60℃ 200 >25MΩ
3 pole 30A 250 200 <1mΩ 1200 -29℃~60℃ 400 >25MΩ
4 pole 30A/4 250 200 <1mΩ 1200 -29℃~60℃ 400 >25MΩ
6 pole 30A/4 30A/4 100 <1mΩ 300 -29℃~60℃ 700 >25MΩ
8 pole 30A/6 250 100 <1mΩ 200 -29℃~60℃ 1000 >25MΩ
10 pole 30A/8 250 100 <1mΩ 100 -29℃~60℃ 1500 >25MΩ
12 pole 30A/10 250 100 <1mΩ 60 -29℃~60℃ 2000 >25MΩ
1 pole 10A -- 200 <1mΩ 3600 -29℃~60℃ 35 >25MΩ
1 pole 20A -- 200 <1mΩ 2000 -29℃~60℃ 50 --
1 pole 50A -- 200 <1mΩ 1800 -29℃~60℃ 70 --
2 pole 4A 250 200 <1mΩ 2000 -29℃~60℃ 75 >25MΩ
3 pole 4A 250 200 <1mΩ 1800 -29℃~60℃ 100 >25MΩ
4 pole 30A 250 100 <1mΩ 100 -29℃~60℃ 2000 >25MΩ


a

SNQ series(pneumatic,hydraulic-Electrical slip rings/rotary joints)



  • Senring electronics developed the production of SNQ series(pneumatic,hydraulic-Electrical slip rings/rotary joints)can be rotated 360 degrees while Transmit power,control signal,switch signal,micro signal+fiber+mercury+servo motor signal of instruments and computer automatic control
  • Transmit hydraulic,more channels optional
  • 1、2、3、4、6、8、12 channnels optional
  • 360°transmit compressed air,negative pressure,positive pressure,cooling water,hot oil
  • 360-degree video signal even HD signal transmission
  • Through bore or solid optional
  • Main applications:high-tech auto-equipments,packing machine
  • 50% Ethernet slip rings are customized;


Model# PDF Pneumatic/[email protected] [email protected] Circuits tube siz
1 channel 1~96 4mm-50mm
2 channel 1~96 4mm-25mm
3 channel 1~96 4mm-25mm
4 channel 1~48 4mm-25mm
6 channel 1~48 4mm-15mm
8 channel 1~48 4mm-10mm
12 channel 1~48 4mm-8mm
