CHARACTERISTICS
- Technology
- diaphragm, piston
- Fluid
- for gas
- Protection level
- explosion-proof, ATEX, IP65
- Other characteristics
- compact
- Pressure range
-
Min.: 1 bar (14.5 psi)
Max.: 400 bar (5,801.51 psi)
DESCRIPTION

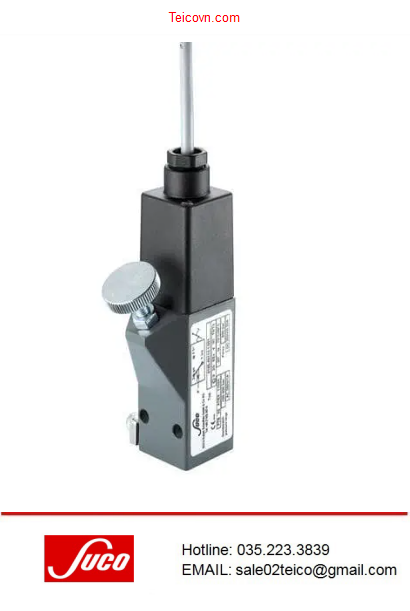

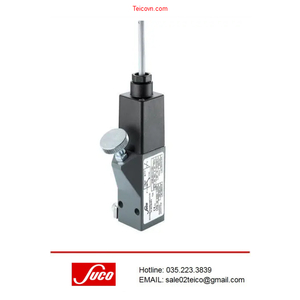

To ATEX standard -ATEX-certification for use in potentially explosive areas -Switching point can be easily adjusted by the user -Whilst system in operation -Compact design -Excellent price/performance ratio Piston pressure switch, Diaphragm pressure switch 0165 - ATEX (Gases and vapours) Product category: Mechanical pressure switch Pressure range: 1 to 6 bar (+/- 0,5) 100 to 400 bar (+/- 9) 20 to 100 bar (+/- 5) 25 to 250 bar (+/- 7) 5 to 50 bar (+/- 3) Overpressure safety: 200 bar, 600 bar Pressure type: Overpressure Adjustable switching point: Yes
