CHARACTERISTICS
- Type
- pulse
- Configuration
- encapsulated
- Electrical characteristics
- high-voltage
- Mounting
- for printed circuit boards
- Other characteristics
- AC
- Primary voltage
-
600 V
- Primary current
-
Max.: 0.5 A
Min.: 0.1 A
DESCRIPTION

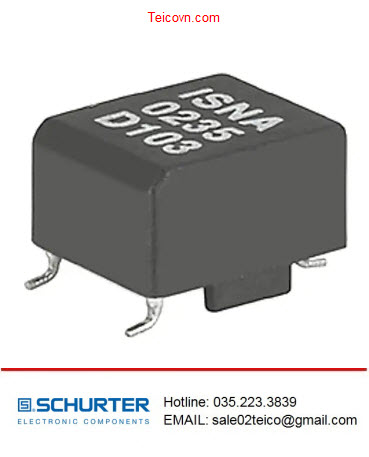

Description IS Description High insulation rating (>3.2 kVAC) between the primary and the secondary windings High insulation rating up to 500V between the secondary windings Small coupling capacitances between primary and secondary windings limit transient feedback from the power supply side to the control electronics The defined partial discharge voltage guarantees an effecively unlimited serviceable live Applications Galvanic separation of drive- and power-circuit Mainly used in ignition circuits with Thyristors, Triacs, power transistors and IGBT's DC/DC Converters Line coupling transformers in high speed data transmission
