CHARACTERISTICS

Other characteristics

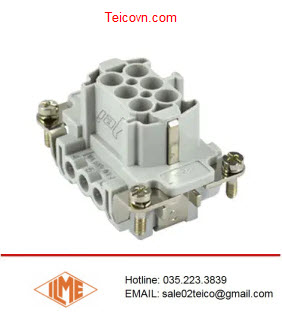

female, 6-pole

DESCRIPTION

for non-prepared conductors - inserts with plate for section conductors: 0.5 ÷ 4 mm2 - AWG 20 ÷ 12 - conductors stripping lenght: 7 mm - terminal screw torque: 0.5 Nm TECHNICAL DETAILS Product description ModelFemale insert VersionScrew terminal connections SeriesJNE Product typeWith female contacts VariantWith plate FamilyJEI® inserts SizeSize "44.27" N. of poles6 poles + Technical data Current16 A Voltage500 V Rated impulse withstand voltage6 kV Pollution degree3 FrequencyD.c. Wire cross-section0,50 mm² - 4,00 mm² AWG size20 - 12 Operating temperature range (min, max)-40°C … +125°C Contact materialTin plated Mating cycles≥ 200 IP degree of protectionIP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure PE wire cross-section0,14 - 4 mm2; AWG 20 - 12
