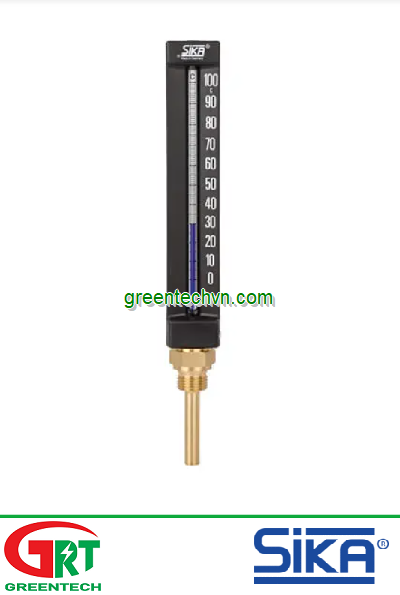

110 - 200 mm | sika thermometer | Nhiệt kế | Liquid dilation thermometer

CHARACTERISTICS

Technology

liquid dilation

Display

direct-reading

Configuration

insertion

Applications

machine, industrial

Temperature

Min.: -30 °C (-22 °F)

Max.: 200 °C (392 °F

DESCRIPTION

Possible areas of application SIKA thermometer, HVAC version with polyamide casing Long service and measurement accuracy without wear for large-scale heating systems, district heating, and cold-water circulation systems in air conditioning. OEM version, only for volume quantities. Description Casing Nominal size 110, 150 or 200 mm, plastic casing, top section made from polyamide PA6, black-coloured. The numbers of the display range are printed on the right side and are long-lasting. Connection of casing and immersion tube through grooved adapter piece and locking screw. Advantage: When mounting the thermometer, it is not necessary to turn the casing. Max. ambient temperature 160 °C. Glass inserts (Capillaries) Capillary tube of solid glass, bar-shaped, prismatic, diameter approx. 6 to 8 mm, with white background for blue fluid column. Scale is deeply burnt in black, thus being absolutely resistant. The main graduations, which correspond with the printing on the casing, are especially clearly outlined Thermometric liquid In the standard version up to 200 °C blue wetting fluid („Fü“). Immersion tube Standard version made from brass, type B with connection thread G½. The diameter of this immersion tube is 10 mm, with a wall thickness of 1 mm. Stainless steel available as an option.

Industrial thermometers

Since 1901 we at SIKA - Dr. Siebert and Kühn have produced precision measuring and control instruments. The original “SIKA” thermometer was developed and brought to production stage by the engineer Hans Siebert. For its basic mechanical design, Dr. Siebert and Kuehn finally received the patent no. 767477 in 1939. From those early days on, we have been manufacturing these thermometers solely in Kassel / Kaufungen – that is real quality “made in Germany”.

Since their invention, SIKA thermometers have been the very embodiment of robustness, reliability and accuracy. They harbour knowledge of many details and the experience of thousands of applications. For this reason, they are now completely indispensable in marine engineering, mechanical and plant engineering, as well as heating and air conditioning technology. Over 15 million reliable temperature monitors have already been produced in Kaufungen.

The advantages of a glass thermometer over other thermometers such as dial thermometers or electronic versions, are obvious: no mechanically moving parts, no material fatigue, no electrical energy requirement, but a high level of accuracy and a very long service life. In other words, as long as a glass thermometer is not mechanically destroyed, it remains accurate
for the duration of its service life.

Children categories

SIKA thermometers for industry and marine sector

View items...

Special versions and accessories

View items...

SIKA thermometers for heating, air conditioning and ventilation (HVAC)

View items...

Spare part order industrial thermometers

View items...

Industrial thermometers

Since 1901 we at SIKA - Dr. Siebert and Kühn have produced precision measuring and control instruments. The original “SIKA” thermometer was developed and brought to production stage by the engineer Hans Siebert. For its basic mechanical design, Dr. Siebert and Kuehn finally received the patent no. 767477 in 1939. From those early days on, we have been manufacturing these thermometers solely in Kassel / Kaufungen – that is real quality “made in Germany”.

Since their invention, SIKA thermometers have been the very embodiment of robustness, reliability and accuracy. They harbour knowledge of many details and the experience of thousands of applications. For this reason, they are now completely indispensable in marine engineering, mechanical and plant engineering, as well as heating and air conditioning technology. Over 15 million reliable temperature monitors have already been produced in Kaufungen.

The advantages of a glass thermometer over other thermometers such as dial thermometers or electronic versions, are obvious: no mechanically moving parts, no material fatigue, no electrical energy requirement, but a high level of accuracy and a very long service life. In other words, as long as a glass thermometer is not mechanically destroyed, it remains accurate
for the duration of its service life.
