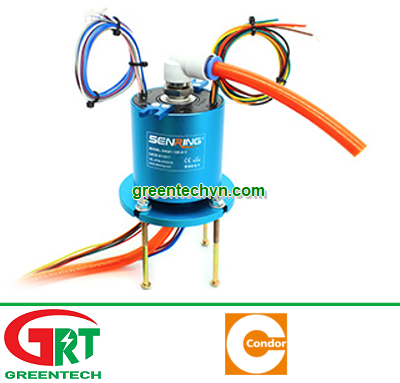

3002006 Series Two Passages Rotary Unions
2 Gas & flow Passage,Passage Size G1/8",Support 6~8mm Pipes,Can be Combine To Transfer 6~56 Circuits Electrical Power/Signal
Senring two passages rotary unions 3002006 series,support G1/8 port for 6~8mm pipes,can transfer various mediums including compressed air, steam, vacuum,liquid...etc. when 360° rotating, Advantages : compact size, light weight , low torque, each channel works independently without mixture. It also can combine to transmit 6 to 56 circuits of electrical power and signal. 3002006 series are widely appplied in industrial equipments such as printing machine,machining equipment,packing machines ...etc
- Features
- Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
- 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure,cooling water,hot oil...etc;
- Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；
- Support 2 G1/8" port for 6~8mm pipes;
- Product Manual
- 3D model
- Installation
- @Technical Inquiry
Drawing
3002006 (Rotary Union Only) Drawing,2 Passage(6~8mm pipe)
Part No. description
Model list
| Model | Passages(Gas/Flow) | Port Size | Pipe Size |
| 3002006 | 2 passages | G1/8" | 6~8mm |
Drawing
3002006-X4S 2 Passage(6~8mm pipe)+6~56 circuits electrical signal@2A（Suitable for Solenoid valve or Sensor switch Signals)
Model list
| Model | Passages(Gas/Flow) | Port Size | Pipe Size | Signal Circuits(2A) | Length L(mm) |
| 3002006-06S | 2 passages | G1/8" | 6~8mm | 6 | 14 |
| 3002006-12S | 2 passages | G1/8" | 6~8mm | 12 | 21 |
| 3002006-24S | 2 passages | G1/8" | 6~8mm | 24 | 35 |
| 3002006-36S | 2 passages | G1/8" | 6~8mm | 36 | 52.3 |
| 3002006-56S | 2 passages | G1/8" | 6~8mm | 56 | 82 |
Drawing
3002006-X3AX4S 2 Passage(6~8mm pipe)+electrical power/signal(5A,10A option)
Model list
| Model | Passages(Gas/Flow) | Port Size | Pipe Size | Power Circuits(10A) | Signal Circuits(2A) | Length L(mm) |
| 3002006-06S | 2 Passages | G1/8" | 6~8mm | 0 | 6 | 38 |
| 3002006-0610 | 2 Passages | G1/8" | 6~8mm | 6 | 0 | 38 |
| 3002006-12S | 2 Passages | G1/8" | 6~8mm | 0 | 12 | 55 |
| 3002006-0610-06S | 2 Passages | G1/8" | 6~8mm | 6 | 6 | 55 |
| 3002006-1210 | 2 Passages | G1/8" | 6~8mm | 12 | 0 | 55 |
| 3002006-0610-12S | 2 Passages | G1/8" | 6~8mm | 6 | 12 | 71.5 |
| 3002006-1210-06S | 2 Passages | G1/8" | 6~8mm | 12 | 6 | 71.5 |
| 3002006-18S | 2 Passages | G1/8" | 6~8mm | 0 | 18 | 71.5 |
| 3002006-1810 | 2 Passages | G1/8" | 6~8mm | 18 | 0 | 71.5 |
| 3002006-0610-18S | 2 Passages | G1/8" | 6~8mm | 6 | 18 | 88.5 |
| 3002006-24S | 2 Passages | G1/8" | 6~8mm | 0 | 24 | 88.5 |
| 3002006-30S | 2 Passages | G1/8" | 6~8mm | 0 | 30 | 106 |
| 3002006-36S | 2 Passages | G1/8" | 6~8mm | 0 | 36 | 125 |
Technical Specification
| Rotary Unions & Joints Spec. | ||||
| Passages(Gas/Flow) | 2 passages | Max. Operating Pressure | Positive Pressure 1Mpa, Vacuum -1.5kPa | |
| Pipe Size | 6~8mm pipe, G1/8" Port | torque | <0.2N.m | |
| Mechanical Data | Electrical Data | |||
| spec. | data | spec. | data | |
| Working life | 20millions for ref(depends on working conditions) | Power | Signal | |
| Max. Operating Speed | 250RPM continously, 1000RPM intermittently | Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Working temp. | -30°C~80°C | Insolution resistance | <500MΩ/300VDC | <500MΩ/300VDC |
| Work humidity | 0~85% RH | Lead wire spec. | AWG17# Silver-plated teflon wire | AWG22# Silver-plated teflon wire |
| Contact Materia | Precious Metal | Lead wire length | standard 250mm（can be customized） | |
| Housing Material | aluminum alloy | Insolution resistance | 500VAC@50Hz,6s | |
| IP Grade | IP51 | Electrical noise | <0.01Ω | |
Color code of Lead Wire
| ring no. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| color | black | brown | red | orange | yellow | green | blue | purple | grey | white | pink | lightblue |
