| Ordering details | |
| Product type description | AZ 16-02ZVRK-ST - |
| Article number | 101143125 |
| EAN code | 4030661127224 |
| eCl@ss | 27-27-26-02 |
| Approval | |
| Approval |
BG
USA/CAN
CCC
|
| Classification | |
| Standards | EN ISO 13849-1 |
| B10d Normally-closed contact (NC) | 2.000.000 |
| Mission time | 20 Years |
| notice |
|
| Global Properties | |
| Product name | AZ 16 |
| Standards | EN 60947-5-1, BG-GS-ET-15 |
| Compliance with the Directives (Y/N)
| Yes |
| Materials | |
| - Material of the housings | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| - Material of the contacts | Silver |
| Housing coating | None |
| Weight | 120 g |
| Mechanical data | |
| Design of electrical connection | Connector M12 |
| Mechanical life | > 1.000.000 operations |
| higher Latching force (Y/N) | Yes |
| Latching force | 30 N |
| With ejection force (Y/N) | No |
| Positive break force | 20 N |
| positive break travel | 8 mm |
| Actuating speed | max. 2 m/s |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −30 °C |
| - Max. environmental temperature | +80 °C |
| Protection class | IP67 to IEC/EN 60529 |
| Electrical data | |
| Design of control element | Opener (NC) |
| Switching principle | Snap action with self-cleaning contact |
| Number of auxiliary contacts | 0 piece |
| Number of safety contacts | 2 piece |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated insulation voltage Ui | 500 V |
| Thermal test current Ithe | 10 A |
| Utilisation category | AC-15: 230 V / 4 A,DC-13: 24 V / 4 A |
| Max. fuse rating | 6 A gG D-fuse |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Width of sensor | 52 mm |
| - Height of sensor | 90 mm |
| - Length of sensor | 30 mm |
| Included in delivery | |
| Actuators must be ordered separately. | |
| Diagram | |
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact | |
| Switch travel diagram | |
Notes Switch travel diagram
Contact closed
Contact open
Setting range
Break point
Positive opening sequence/- angleVS adjustable range of NO contactVÖ adjustable range of NC contactN after travel | |
| Ordering suffix | |
| The applicable ordering suffix is added at the end of the part number of the safety switch.Order example: AZ 16-02ZVRK-ST-2254 | |
| ...-2254 | Latching force 5 N |
| ...L | Plug-in connection M12 left |
| ...R | Plug-in connection M12 right |
| ...-M20 | cable entries M20 |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 11.06.2017 - 13:52:50h Kasbase 3.2.6.F.64I | |

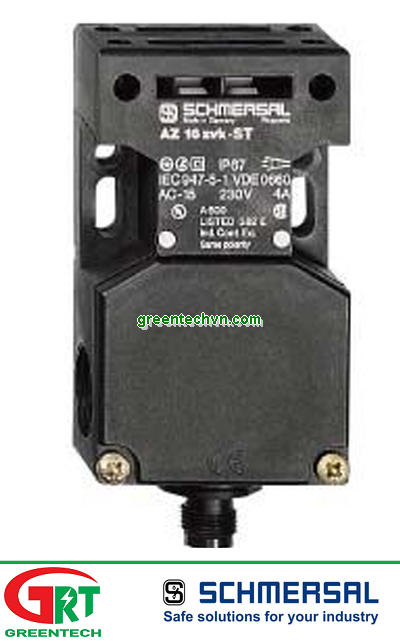

AZ 16ZVK-ST | Schmersal | Công tắc, cảm biến cửa an toàn | Schmersal Việt Nam
Mã SP: AZ 16ZVK
Giá bán : Vui lòng gọi
Số lượng:
• Thermoplastic enclosure
• Double-insulated
• Large wiring compartment
• 52 mm x 90 mm x 30 mm
• Multiple coding
• Long life
• High level of contact reliability with low voltages and currents
• Insensitive to soiling
• Slotted holes for adjustment, circular holes for location
Thông tin người bán
Công ty TNHH Thương mại dịch vụ GREENTECH
33 Đường DC5, Phường Sơn Kỳ, Quận Tân Phú, Tp.HCM
Hotline: 0935 04 1313
Email: sales@greentechvn.com
CHI TIẾT
THÔNG SỐ KỸ THUẬT
| LIMITSWITCHCông tắc giới hạn | ui 500V, ip 65, uimp 6KV | ZS 335-11Z | SCHMERSAL |
| PNEUMATIC ON/OFF VALVE Cơ cấu đóng/mở van khí nén | Pressure Conection: G1/8" 90⁰ Rotation | VT522 | AirTorque |
| COALESCING FILTER Bộ lọc hệ thống CEMS | Pmax= 4 bar, Nhiệt độ môi trường 150 độ C, trọng lượng 570g | Model: 7F4759 | ASE |
| Pressure Control valve Bộ điều khiển áp suất khí điều khiển van | Pmax=784 kpa, P làm việc=40-60 kpa, nhiệt độ 0 đến 60 độ C, trọng lương 500 g | Model: RU5-435 | ASE |
| BELT TRACKING SWITCH Công tắc chuyển đổi hệ thống nhiên liệu | Input: AC230V, NO | ELAP-20N | MATSUSHIMA |
| TRAVEL LIMIT SWITCH Công tắc giới hạn | 15-34 VDC/J=200 mA, EN 50 008-A23 sn 15mm | 3RG40 24-0JB00- | Siemens |
| TRAVEL LIMIT SWITCH Công tắc giới hạn | AC 15 230V, 3A IP66,67 | 3SE5 112-0CH51 | Siemens |
| Limit switch Công tắc giới hạn | AC 15 230V, 3A IP66,67 | 3SE5 112-0CT011 | Siemens |
| Under speed Cảm biến giới hạn tốc độ | 250VAC/5A. Speed 1399 RPM | ESRDP-200KN | MASUSHIMA |
| Trip wire switch | 10A-125/250 VAC,1/2A- 125VDC | ELAW-31 | MASUSHIMA |
| LIMIT SWITCH Công tắc giới hạn | AC 15, NC | T2L-035-11Z-M20 | SCHMERSAL |
| POSITION LIMIT SWITCH Cảm biến giới hạn | 120VA/W, max 3A 250VAC/DC | BN2011RZM16 | SCHMERSAL |
| BELT TRACKING SWITCH Công tắc giới hạn | TM250-11Z-242 | SCHMERSAL | |
| Travel limitswitch Công tắc giới hạn | ui 500V, ip 65, uimp 6KV, AC15 | Z4V7H335-11Z-2272/2654 | SCHMERSAL |
