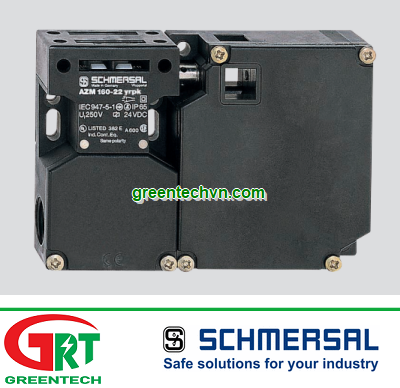

Ordering details | |
Product type description | AZM 161SK-12/12RKA-024 - |
Article number | 101166285 |
Strobe lamp | 4030661213972 |
eCl@ss | 27-27-26-03 |
Approval | |
Approval | |
Classification | |
Standards | EN ISO 13849-1 |
B10d Normally-closed contact (NC) | 2.000.000 |
Mission time | 20 Years |
notice | |
Global Properties | |
Permanent light | AZM 161 |
Standards | EN 60947-5-1, BG-GS-ET-19 |
Compliance with the Directives (Y/N) | Yes |
Number of actuating directions | 3 |
Active principle | electromechanical |
Duty cycle | Magnet 100 |
Materials | |
- Material of the housings | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
- Material of the contacts | Silver |
Housing coating | None |
Weight | 460 |
Mechanical data | |
Actuating play in direction of actuation | 5.5 |
Design of electrical connection | Screw connection |
Cable section | |
- Min. Cable section | 1 x 0,25 |
- Max. Cable section | 1 x 1.5 |
Mechanical life | > 1.000.000 operations |
notice | All indications about the cable section are including the conductor ferrules. |
Emergency unlocking device (Y/N) | No |
Manual release (Y/N) | Yes |
Emergency release (Y/N) | No |
Latching force | 30 |
Positive break force | 20 |
positive break travel | 10 |
Clamping force | 2000 |
Max. Actuating speed | 2 |
Actuating frequency | 1000 / |
Ambient conditions | |
Ambient temperature | |
- Min. environmental temperature | −25 |
- Max. environmental temperature | +60 |
Protection class | IP67 to IEC/EN 60529 |
Electrical data | |
Design of control element | Normally open contact (NO), Opener (NC) |
Switching principle | Creep circuit element |
Number of auxiliary contacts | 2 |
Number of safety contacts | 4 |
Power to unlock | No |
Power to lock | Yes |
Rated control voltage | 24 |
Power consumption | 10 |
Rated impulse withstand voltage | 4 |
Rated insulation voltage | 250 |
Thermal test current | 6 A |
Utilisation category | AC-15: 230 V / 4 A,DC-13: 24 V / 2,5 A |
Required rated short-circuit current | 1000 A |
Max. fuse rating | 6 A gG D-fuse To DIN EN 60269-1 |
ATEX | |
Explosion protection categories for gases | None |
Explosion protected category for dusts | None |
Miscellaneous data | |
Applications | sliding safety guard, removable guard, hinged safety guard |
Dimensions | |
Dimensions of the sensor | |
- Width of sensor | 130 |
- Height of sensor | 90 |
- Length of sensor | 30 |
notice | |
Manual release | |
• For maintenance, installation, etc. | |
• For manual release using M5 triangular key, available as accessory | |
Diagram | |
Note Diagram positive break NC contact active no active Normally-open contact Normally-closed contact | |
Switch travel diagram | |
Notes Switch travel diagram Contact closed Contact open Setting range Break point Positive opening sequence/- angleVS adjustable range of NO contactVÖ adjustable range of NC contactN after travel | |
Ordering suffix | |
The applicable ordering suffix is added at the end of the part number of the safety switch.Order example: AZM 161SK-12/12RKA-024G | |
...G | Protected against incorrect polarity and voltage spikes.limited terminating space 0,75 mm²Diagram14 guard open13 +24 VDC63 0 VDC64 unlocked |
