Bàn trộn hình ảnh và âm thanh Roland V-02HD PAC1 Video Mixer Bundle

(0 đánh giá)

Mã SP: Roland V-02HD
17,900,000 VND

Xuất xứ :Roland

Nơi rao bán :Toàn quốc

Tình trạng :Mới 100%

Ngày cập nhật :14-09-2019 21:03:59

Bảo hành :6 tháng

V-02HD Switcher 2 x HDMI Inputs, 1 x HDMI Output Discrete Scalers on Inputs and Output 14 x Real-Time Adjustable Effects 5 x Compositing Effects Picture-in-Picture Effect Stores Single Still Image/Graphic FS-5U Foot Pedal 2 x 16' HDMI Cables Phono Cable

Số lượng:
Mua ngay Thêm vào giỏ hàng

LIÊN HỆ VỚI NGƯỜI BÁN

VNM CO.,LTD

897 Lê Thanh Nghị - TP. Hải Dương

0946112556

[email protected]

http://dienmayviet.com.vn

Ghi chú: GianHangVN không trực tiếp bán sản phẩm, vui lòng liên hệ trực tiếp với người bán bên trên.

>> Hướng dẫn đặt hàng trực tuyến

Giá có thể thay đổi chưa kịp cập nhật, xin vui lòng liên hệ trực tiếp để biết giá

Tên thiết bị:  Bàn trộn hình ảnh và âm thanh Roland V-02HD PAC1 Video Mixer Bundle

Model:   V-02HD PAC1

Thương hiệu:  Roland

Tình trạng:  hàng mới

  • V-02HD Switcher
  • 2 x HDMI Inputs, 1 x HDMI Output
  • Discrete Scalers on Inputs and Output
  • 14 x Real-Time Adjustable Effects
  • 5 x Compositing Effects
  • Picture-in-Picture Effect
  • Stores Single Still Image/Graphic
  • FS-5U Foot Pedal
  • 2 x 16' HDMI Cables
  • Phono Cable

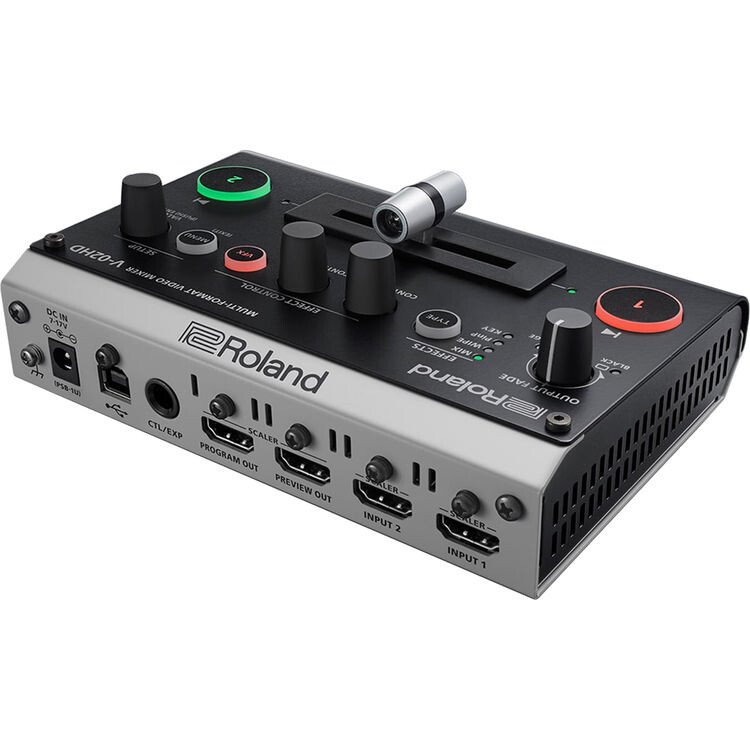

This Roland V-02HD PAC1 Video Mixer Bundle is assembled to provide you with a portable micro switcher, a BOSS momentary unlatching footswitch pedal, one phono cable, and two HDMI cables. The V-02HD micro switcher handles HD footage and is small enough to fit in your gear bag. It can be mounted onto a standard tripod, so it doesn't require a rack arrangement to use it on location. Its small size and lightweight design make it well suited for use on mobile video productions. Switching is accomplished on the unit or by the included foot pedal and Phono cable.

Although small-in-size, the V-02HD is loaded with features. The inputs and both the program and preview outputs feature discrete scalers. The V-02HD seamlessly switches between two HDMI sources and features a T-bar for smooth transitions, a graphics select knob, effects select, effects control, and a menu button. The switcher powers from an included AC power supply.



Switcher Features

The V-02HD is a single unit that incorporates a simple switcher, high-quality scaler, input expander, audio solution, and inline video effects/compositor.
The V-02HD takes the HDMI output from two cameras and seamlessly switches to a connected recorder or live streaming encoder. You can switch between cameras using the dedicated controls or the included footswitch.
Audio from both cameras and external sources can be mixed together within the V-02HD and monitored through a dedicated headphone output.
The switched output is embedded in real time and output over HDMI for reliable recording or live streaming.
A preview output enables you to view the menu without the overlay appearing on the program output.
The switcher operates with 10-bit 4:4:4 processing.
Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions.
You can embed and de-embed audio, both analog and digital.
The V-02HD has built-in three-band EQ and dynamics.

Effects

Video
  • Transition: Cut, mix (dissolve), wipe (9 types)
  • Composition: PiP (square, circle, diamond), key (luminance key, chroma key)
  • Visual effects (14 types): mosaic, wave, RGB replace, colorpass, negative, colorize, posterize, silhouette, emboss, findedge, monocolor, hue offset, saturation offset, value offset
  • Others: Flip horizontal, flip vertical, still image capture, still image playback, output fade (audio/video: white or black), test pattern output
Audio
  • Delay
  • High-pass filter
  • Compressor
  • Noise gate
  • Equalizer
  • Multi-band compressor
  • Limiter
  • Test tone output
Other Functions
  • Preset memory (8 types)
  • Panel lock function
  • EDID emulator
  • Auto scan
  • Auto input detect

Footswitch

This is a momentary unlatching footswitch/pedal that works with either electronic keyboards as a sustain pedal, or for quickly engaging and disengaging effects processors. The pedal is only active for the duration of time that it is depressed, and an example of its creative application would be the emphatic punctuation of specific musical phrases during an instrumental solo, with a dramatic delay, or reverb effect setting.


Roland V-02HD Specs

Video
Video Processing 4:4:4 (YPbPr), 10-bit
Connectors Input
2 x HDMI type A

Output
Program: 1 x HDMI type A
Preview: 1 x HDMI type A
Broadcast System NTSC
PAL
Input Formats Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576i/p: 50
480i/p: 59.94

Computer (60 Hz)
WUXGA (1920 x 1200)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)
VGA (640 x 480)

- The refresh rate is the maximum value of each resolution
- Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
- 1920 x 1200/60 Hz: Reduced blanking
Output Formats Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576p: 50
480p: 59.94

Computer (60 Hz)
WUXGA (1920 x 1200)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)

- Conforms to VESA DMT Version 1.0 Revision 11
- Output refresh rates of 800 x 600 to 1400 x 1050 are 75 Hz when unit's frame rate setting is 50 Hz
- 1920 x 1200/60 Hz: Reduced blanking
Audio
Audio Processing Sampling Rate: 24-bit, 48 kHz
Audio Formats Linear PCM, 24-bit, 48 kHz, 2-ch
Connectors Input
2 x HDMI type A (shared with video)
1 x 3.5 mm stereo mini

Output
Program: 1 x HDMI type A (shared with video)
Preview: 1 x HDMI type A (shared with video)
1 x 3.5 mm stereo mini
Other Specs Input Level
-10 dBu (+8 dBu max)

Output Level
Phones: 92 mW + 92 mW (32 Ohms)

Input Impedance
45 kOhms

Output Impedance
Phones: 10 Ohms
General
Mounting Tripod: 1/4"-20 threaded mounting hole
Desktop: 4 x Rubber feet
Interface USB Memory: USB Type-B (for backup from PC)
CTL/EXP: 1/4" TRS phone type
Power Supply: AC adapter
Current Draw: 1.1 A
Power Consumption: 10 W
Operating Temperature 32 to 104°F / 0 to 140°C
Dimensions 6.30 x 4.25 x 2.01" / 16 x 10.8 x 5.1 cm
Weight 1.3 lb / 0.6 kg
Packaging Info
Package Weight 7.0 lb
Box Dimensions (LxWxH) 15.1 x 11.7 x 7.6"



In the Box
Roland V-02HD PAC1 Video Mixer Bundle
  • V-02HD Mixer
  • AC Adapter
  • Power Cord
  • Cord Hook
  • 2 x HDMI Cable (16')
  • Phono Cable
  • Limited 1-Year Warranty
