Xuất xứ :Roland
Nơi rao bán :Toàn quốc
Tình trạng :Mới 100%
Ngày cập nhật :07-01-2021 20:06:23
Bảo hành :6 tháng
897 Lê Thanh Nghị - TP. Hải Dương

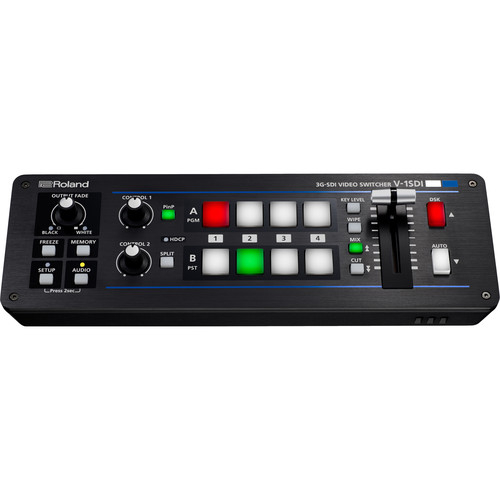

Tên thiết bị: Bàn trộn hình ảnh và âm thanh Roland V-1SDI 4-Channel HD Video Switcher
Model: Roland V-1SDI
Thương hiệu: Roland
Tình trạng: hàng mới
Roland's V-1SDI 4-Channel HD Video Switcher supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multiview output, you can easily monitor all your inputs at once on the multiview while isolating your preview and program screens.
The HDMI inputs and multiview output are HDCP compliant, while the SDI inputs and SDI preview and program outputs support SMPTE 424M (SMPTE 425M-AB), 292M, and 259M-C. You can control the unit via the built-in RS-232 port, or via a PC using the USB connection. Eight memory functions enable you to recall specific setups, which makes it easier to get up and running when the switcher is shared among different productions. Built-in features include image freeze and output fades.
Processing | |
---|---|
Video Processing | 8-bit 4:2:2 (YPbPr) |
Audio Processing | 24-bit at 48 kHz |
Input Signal Formats | |
---|---|
SDI | Inputs 1 to 3 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C |
HDMI | Input 3 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 HDCP supported Input 4 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 480p: 59.94 576p: 50 480i: 59.94 576i: 50 WUXGA: 1920 x 1200 @ 60 Hz UXGA: 1600 x 1200 @ 60 Hz SXGA+: 1400 x 1050 @ 60 Hz FWXGA: 1366 x 768 @ 60 Hz SXGA: 1280 x 1024 @ 60 Hz WXGA: 1280 x 768 @ 60 Hz XGA: 1024 x 768 @ 60 Hz SVGA: 800 x 600 @ 60 Hz VGA: 640 x 480 @ 60 Hz HDCP supported |
Output Signal Formats | |
---|---|
Program & Preview Output | SDI 1080p: 59.94/50 1080i: 59.94/50 720p: 59.94/50 Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C |
MultiView | HDMI HDCP supported |
Input Level | Audio In: -10 dBu (Maximum: +8 dBu) Mic: -41 to -13 dBu (Maximum: -1 dBu) |
Output Level | Audio Out: -10 dBu (Maximum: +8 dBu) Phones: 92 mW + 92 mW (32 Ohms) |
Connectors | |
---|---|
Input | Video 3 x SDI, BNC 2 x HDMI Type-A Audio Analog: RCA phono Mic: Stereo mini jack |
Output | Program 1 x SDI, BNC Preview 1 x SDI, BNC Multiview 1 x HDMI Type-A Audio Analog: RCA phono Headphones: Stereo mini jack |
Remote | USB Type-B (for remote control from PC) RS-232: DB-9 |
Audio Impedance | Input Audio: 15 kOhms Mic: 10 kOhms Output Audio: 1 kOhms Phones: 10 Ohms |
General | |
---|---|
Power Supply (AC) | AC adapter |
Current Draw | 2.1 A |
Power Consumption | 25 W |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Dimensions (H x W x D) | 12.3 x 4.3 x 2.3" / 31.3 x 10.8 x 5.9 cm |
Weight | 2.6 lb / 1.2 kg (excluding AC adapter) |
Packaging Info | |
---|---|
Package Weight | 4.65 lb |
Box Dimensions (LxWxH) | 16.2 x 9.8 x 5.3" |
