Thông số kỹ thuật:

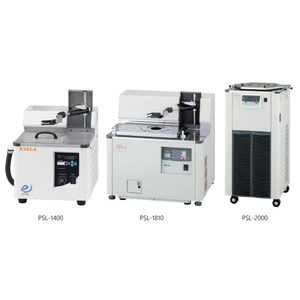

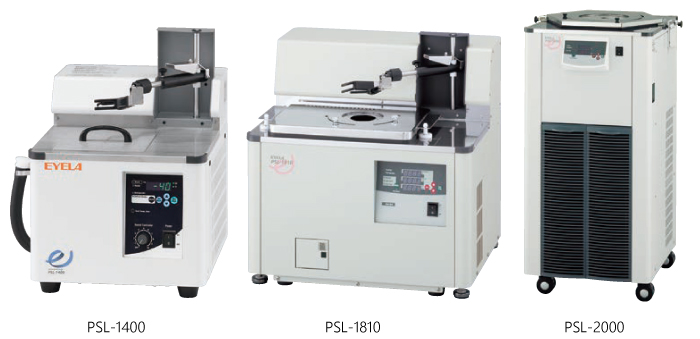

Product name Constant Temperature Bath with Magnetic Stirrer
Model PSL-1400 PSL-1810 PSL-2000
Cat. No. 182218 226348 220948
Temperature control range －40 to 0°C －80 to 0°C －80 to 20°C
Temperature control accuracy ±0.5°C or better (center of tank) ±1℃ or better (center of tank)
Temperature control Heater: PID control, Refrigerator: continuous operation
Rotation speed range 100 to 800rpm
Temperature setting・display Membrane keypad input digital setting・display
Timer function － Auto start, Auto stop －

Safety features		 Earth leakage・overcurrent breaker, Independent overheat protector, Refrigerator high pressure switch, Overload relay holding circuit, Float switch (PSL-1810)
Self-diagnostic function (heater disconnection, sensor abnormality, upper and lower limit temperature alarm, SSR abnormality, motor error, memory error, power failure alarm, low water level), Refrigerator protection timer Self-diagnostic function (heater disconnection, sensor error, upper and lower temperature limit alarm)
Temperature sensor T thermocouple Platinum resistance thermometer Pt100Ω
Heater 250Ｗ 450Ｗ 750W
Magnet Neodymium magnet
Motor Speed control motor, Output 15W Speed control motor, Output 25Ｗ
Stirring bar Teflon® (20mm)  1 pc Teflon® (40mm) 1 pc
Bath material Stainless steel
Inner bath dimensions (mm) 140 ID x 135H 180 ID x 140H 250 ID x 180H
Bath capacity 2.1L 3.5L 8L
Maximum diameter of vessel used (mm) 95 diameter 165 diameter
Compatible vessel Vessels with neck diameters ranging from 20 to 85mm Pear shaped sample flask, Erlenmeyer flask, Round bottom reaction vessel (max. capacity 300mL), Small separable flask 2Ｌ・165mm diameter
Refrigerator・refrigerants Air-cooled・output 450W・R404A Air-cooled・output 450W x 2・R507A・R23 Air-cooled・output 500W x 2・R404A・R23
Ambient temperature range 5 to 35°C
Power input・supply voltage 3.0A, 670VA・220VAC 50Hz 7A, 1.5kVA・220VAC 50Hz 8.7A, 1.9kVA・220VAC 50/60Hz
Outer dimensions (mm) 350(380)W x 490D x 380(480)H 530(537)W x 450D x 522(554)H 450W x 515(560)D x 945(1475)H
Weight Approx. 29kg Approx. 74kg Approx. 100kg
Accessories
 		 Teflon® stirring bar (20mm) 1pc,
Clamp (tightening 20 to 85mm diameter）		 Teflon® stirring bar (40mm) 1 pc, pole (15 diameter x 650mm), cover with shutter (variable 20 to 180mm diameter)
Bath cover Cover with shutter (variable 10 to 150mm diameter)
