| Number of channels |
4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND |
Measurement ranges
(10 div full-scale) |
4 channels of voltage measurement; mode switchable between instantaneous waveform, or RMS value
10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range
RMS value mode: 30 Hz to 10 kHz, Crest factor: 2 |
| Max. rated voltage |
Between terminals: 600 VAC, DC
Between terminal to earth: 600 VAC, DC CAT III, 300 VAC, DC CAT IV |
| Frequency characteristics |
DC to 100 kHz (±3dB) |
| Time axis (High-speed function) |
100 μs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range |
| Recording intervals (Real-time function) |
100 μs to 1 minute, 19 selections (simultaneous sampling in all channels) |
| Measurement functions |
High-speed function (high speed recording)
Real-time function (actual time recording) |
| Memory capacity |
14-bits × 1M-Words/ch (1 word = 2 bytes) |
| Removable storage |
CF Card slot ×1 (Up to 2 GB), USB 2.0 memory ×1 |
| Printing |

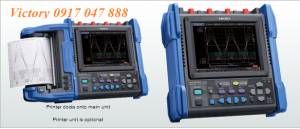

[Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec
Note: Printing is not supported when using alkaline batteries |
| Display |
5.7-inch VGA-TFT color LCD (640 × 480 dots) |
| Displayable languages |
English, Japanese, Chinese |
| Communication interfaces |
USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control |
| Power supply |
AC ADAPTER Z1002: 100 to 240 VAC (50/60 Hz), 11 VA (when Real-time recording) , 40 VA (when Real-time recording and printing)
BATTERY PACK Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (at back-light ON)
LR6 (AA) alkaline batteries × 8, Continuous use 40 minutes, (with back-light ON, cannot be used with the PRINTER UNIT)
DC power supply: 10 to 28 VDC (cable available by special order) |
| Dimensions and mass |
205 mm (8.07 in) W × 199 mm (7.83 in) H × 67 mm (2.64 in) D, 1.66 kg (58.6 oz) (with the BATTERY PACK installed)
When printer is combined - with main unit: 303 mm (11.93 in) W × 199 mm (7.83 in) H × 67 mm (2.64 in) D, 2.16 kg (76.2 oz) (with the BATTERY PACK installed) |
| Accessories |
Instruction Manual × 1, AC ADAPTER Z1002 × 1, Alkaline battery box × 1, Strap × 1, USB cable × 1, Application Disk (Wave Viewer Wv, Communication Commands table) × 1 |
