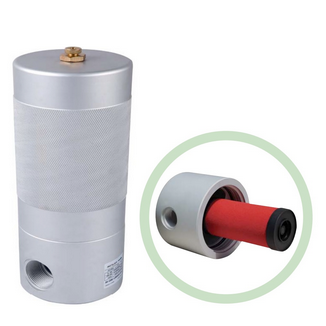

BỘ LỌC KHÍ CAO ÁP HERTZ, HHGO2500

create and produce products of the highest quality at a reasonable price for worldwide customer satisfaction.

Filters
The compressed air coming from the compressor may contain unwanted elements such as oil, dust and humidity. The air in the external environment will also affect the quality of the final product. This air must be filtered prior to the final stage of production.

High Pressure Range Compressed Air Filters Features

Hertz manufactures a line of High Performance Compressed Air Filters, Moisture Separators in two different range;

1. 50 bar Range made of Aluminum, No welding, strong and reliable design.
2. 350 bar Range made of Steel. No welding, and very reliable for High Pressure appilications.

Hertz High Pressure Range Compressed Air Filters are no welded design. As a result it is very strong and robust. Very thick wall thickness and In-house high pressure test facilities assure the performance. All inner and outer surfaces of 50 bar Aluminum design Filters are Anodised, where 350 bar Carbon Steel design Filters are epoxy electro powder painted.

NOTES

1. Grade A must not operate in oil saturated conditions.
2. Grade A elements should be replaced periodically to suit the applications but must be changed at least every six months.
3. Grade A will not remove certain gases including carbon monoxide and carbon dioxide. Please refer to works if in doubt.
4. All filters are suitable for use with mineral and synthetic oils.
5. The above housings require only one filter element.
6. Direction of air flow, inside to out, through filter element. Except grade A
7. Manual drain is standard. Electronic timer is optional.

ORDERING

The complete filter model number contains the size and grade, Example - 1/4” general purpose filter model HHGO100MX with replacement filter element model M100X.
