Model Number Structure

Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.

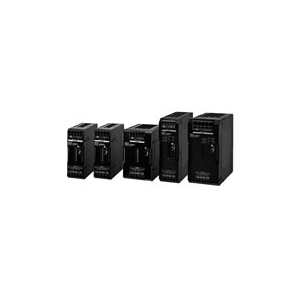

S8VK-S Lineup 2



Power ratings Rated input voltage Rated output
voltage		 Rated output
current		 Maximum
boost current		 Model number
30 W 100 to 240 VAC
allowable range:
85 to 264 VAC or
90 to 350 VDC)		 24 V 1.3 A 1.56 A S8VK-S03024
60 W 24 V 2.5 A 3 A S8VK-S06024
120 W 24 V 5 A 6 A S8VK-S12024
240 W 24 V 10 A 15 A S8VK-S24024
480 W 24 V 20 A 30 A S8VK-S48024
