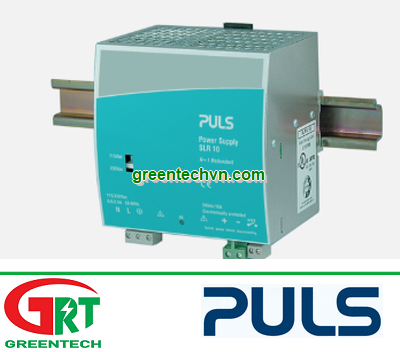

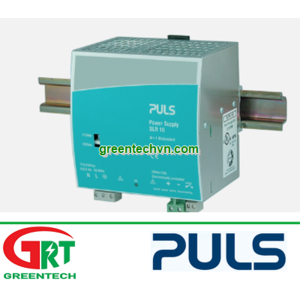

SLR10.100

Power supply with integrated decoupling function
24V, 10A

115 / 230V Switchable input
Efficiency up to 88,5%
Redundancy unit
20% Power reserves for loads with a higher short-term power requirement
Full output power between 0 and +60°C

DC Output	24Vdc
	10A
	240W
Input	AC 100-120/210-240V

Size (WxHxD)	120 x 124 x 102mm
Weight	980g
Product Status	Stock item

Datasheet (390 KB)

SLR10.100 - Power supply with integrated decoupling function

Approvals - Links or Downloads

Show

	UL 508 Listed USA
	UL 508 Listed Canada
	UL 60950-1 USA
	UL 60950-1 Canada
	IEC 60950 CB Scheme (189 KB)
	EU Declaration of Conformity (33 KB)
	EAC (Russia, Kazakhstan and Belarus) (2 MB)

Technical Data

Input Data

Show

AC-Input Voltage	AC 100-120/210-240V
DC-Input Voltage
EN61000-3-2(PFC-Norm)	not fulfilled

Output Data

Show

nominal Voltage	24Vdc
Adjustment Range	24
Output Current Range	10A
Output Current	10A at 24V
Output Power	240W
max. Ripple and Noise Voltage	30mVpp

Overview

Show

Size (WxHxD)	120mm x 124mm x 102mm
Weight per Piece (excluding packing)	980g

Operat. Temperature Range	0°C ... +70°C
Derating	12W/°C at >+60°C

Mounting Method	DIN-Rail
Efficiency, typ.	89,0%
Power Losses, typ.	26,7W
MTBF SN 29500 @ 40°C (h)	390.000h

Connection method

plug connector

Commercial Information

Overview

Show

Article Number	SLR10.100
UPC Code	875404000617
Country of origin	CZ
Product Status	Stock item
E Classification	eClass 5.1 27049002eClass 6.x 27049002 eClass 7.x 27049002 eClass 8.0 27049002 eClass 9.0 27040701 ETIM 4.0 EC000599 ETIM 5.0 EC002540 HS Code HS 85044082
Warranty Period (Month)	36
Packaging Unit	1pc

Downloads

Datasheet (390 KB)
Functional Diagram (28 KB)
DRC Conflict Minerals Declaration & EICC-GeSI Reporting Template (3 MB)
Material Certificate of Conformity (RoHS, REACH, China-RoHS, …) (615 KB)
Instruction manual (341 KB)
2-D Dimensional Mechanical CAD Drawing DXF (36 KB)
2-D Dimensional Mechanical Drawing DWG (67 KB)
3-D Dimensional Mechanical CAD Model STEP (2 MB)
3-D Dimensional Mechanical Model DWF (263 KB)

Accessories / Complementary Units

Wall / panel mount bracket

SLZ02

Datasheet

Adapter for Siemens S7-300 rail

SLZ14

Datasheet

Buffer module

SLV20.200

Datasheet

THÔNG SỐ KỸ THUẬT

Model	Output		Range	Power	Input	W x H x D
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm	no DC-OK contact
Puls		24V	10A	24-28Vdc	240W	220-240Vac	49 x 124 x 124mm
Puls		12V	30A	12-15Vdc	450W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	3.3A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Spring-clamp terminals
Puls		24V	5A	24-28Vdc	120W	100-120Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	200-240Vac	32 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Spring-clamp terminals
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	200-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	3.4A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm	ATEX Version
Puls		24V	3.8A	24Vdc	91.2W	100-240Vac	40 x 124 x 117mm	DeviceNet®
Puls		12V	15A	12-15Vdc	180W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	ATEX Version
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Conformal coated
Puls		30V	8A	28-32Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	8A	24-24.5Vdc	196W	100-240Vac	60 x 124 x 117mm	DeviceNet®
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	ATEX Version
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	200-240Vac	70 x 124 x 127mm
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	24Vdc	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm
Puls		24V	3.8A	24Vdc	92W	24Vdc	32 x 124 x 102mm	NEC Class 2
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm	Signal contacts
Puls		24V	5A	24-28Vdc	120W	48Vdc	32 x 124 x 102mm
Puls		24V	4A	24-28Vdc	96W	12Vdc	32 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		24V	20A	24-28Vdc	480W	600Vdc	65 x 124 x 127mm
Puls		24V	15A			6kWs EDLC Buffer module	126 x 124 x 117mm
Puls		24V	15A			12kWs EDLC Buffer module	198 x 124 x 117mm
Puls		24V	20A			Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls		48V	20A			Buffer unit, typ 150ms at 48V, 20A	64 x 124 x 102mm
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 3.9 to 40Ah batteries
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 17 to 130Ah batteries
Puls		24V	10A			DC-UPS Control unit, 24V and 12V	49 x 124 x 117mm	Additional 12V output
Puls		24V	20A			DC-UPS Control unit	46 x 124 x 117mm
Puls		24V	10A			DC-UPS with integrated battery	123 x 124 x 119mm	Battery included
Puls		24V	10A			UBC10.241, battery not assembled	123 x 124 x 119mm	Battery not assembled
Puls		12V	5Ah			Battery replacement	90 x 106 x 70mm
Puls		12V	7Ah			Battery replacement	151 x 98 x 65mm
Puls		12V	12Ah			Battery replacement	151 x 98 x 98mm
Puls		12V	26Ah			Battery replacement	175 x 125 x 166mm
Puls		12V	7Ah			Battery module with battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module with battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module with battery	137 x 186 x 120mm
Puls		24V	12AH			Battery module with battery	203 x 186 x 120mm
Puls		12V	7Ah			Battery module without battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module without battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module without battery	137 x 186 x 120mm
Puls		24V	12Ah			Battery module without battery	203 x 186 x 120mm
Puls		24V	40A			960W	3x 400Vac	96 x 124 x 157mm
Puls		24V	40A			960W	3x 480Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 400Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 480Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 400Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 480Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 400Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 480Vac	96 x 124 x 157mm
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 102mm
Puls		24V	40A			Dual Diode Redundancy Module	36 x 124 x 127mm
Puls		24V	40A			Dual Mosfet Redundancy Module	36 x 124 x 127mm	not for QT20, QTD20
Puls		24V	40A			Single Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		48V	40A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 117mm	with alarm contacts
Puls		410V	2.5A	360-460Vdc	1025W	220-240Vac	310 x 158 x 80mm
Puls						4-Channel Protection Module; Outputs: 4x1A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x2A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x3A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x4A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x6A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x10A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x3A & 2x6A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x6A & 2x12A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4xNEC CLASS 2	45 x 75 x 91mm
Puls						Sensor Board for Battery Modules	110.5 x 23 x 15mm
Puls						Wall mounting bracket UBC10	123 x 156 x 13mm
Puls						Wall mounting bracket	8 x 143 x 7mm
Puls						Wall / panel mount bracket	18 x 145 x 28mm
Puls						Side mounting bracket CS3, CS5, QS3, YR2, YRM2	145 x 65 x 37mm
Puls						Side mounting bracket QS5	145 x 65 x 44mm
Puls						Side mounting bracket CS10, QS10	145 x 65 x 63mm
Puls						Side mounting bracket QT20, QTD20, UF20	145 x 65 x 76mm
Puls						Side mounting bracket QS20.241, QS20.361, QS20.481	145 x 65 x 85mm
Puls		5V	3A	5-5.5Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		12V	1.3A	12-15Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	0.63A	24-28Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		5V	5A	5-5.5Vdc	25W	100-240Vac	45 x 75 x 91mm
Puls		12V	2.5A	10-12Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		±12V	2A	±12-15Vdc	36W	100-240Vac	45 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Parallel mode
Puls		12V	4.2A	12-15Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		48V	1.05A	48-56Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Conformal coated
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 98mm	Plug connector
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	3A	24-28Vdc	72W	100-120 / 220-240Vac	45 x 75 x 91mm
Puls		24V	3.9A	24-28Vdc	95W	100-120 / 220-240Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		12V	7.5A	12-15Vdc	90W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		48V	2.1A	48-56Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	5A	24Vdc	120W	200-240Vac	72.5 x 75 x 103mm
Puls		24V	3.8A	24Vdc	91.2W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	3.75A	24-28Vdc	90W	2x 380-480Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	2x 380-480Vac	72.5 x 75 x 103mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls						Wall / panel mount bracket for 45mm wide MiniLine units, bulk package with 25 pcs	45 x 35 x 7.5mm
Puls		24V	2.5A	24Vdc	60W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		12V	3A	12-15Vdc	40W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		24V	4A	24Vdc	96W	100-120 / 200-240Vac	64 x 124 x 103mm	NEC Class 2
Puls		24V	5A	24Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Adjustable output voltage
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		12V	15A	12-15Vdc	180W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		36V	13.3A	36-43Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm	Remote shut-down
Puls		24V	30A	24-28Vdc	720W	208-240Vac	240 x 124 x 112mm
Puls		24V	5A	24-28Vdc	120W	3x 400-500Vac	73 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 480Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 400-500Vac	150 x 124 x 121mm
Puls		24V	30A	24-28Vdc	720W	3x 400-500Vac	240 x 124 x 112mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm	Various signals included
Puls		30V	2.8A	30.5Vdc	85W	100-120 / 220-240Vac	49 x 124 x 102mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	100-120 / 220-240Vac	73 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	100-120 / 220-240Vac	91 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	3x 400-500Vac	129 x 124 x 117mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	24Vdc	40 x 124 x 102mm	for AS-Interface®
Puls		5V	8A	5-5.5Vdc	40W	24Vdc	49 x 124 x 102mm
Puls		24V	40A	Decoupling module 24-28V, 1x40A	48 x 124 x 117mm
Puls		24V	30A	Decoupling module 24-28V, 2x30A	48 x 124 x 102mm
Puls		24V	2.5A	Decoupling diode	49 x 124 x 102mm	Redundancy unit
Puls		24V	5A	Decoupling diode	64 x 124 x 102mm	Redundancy unit
Puls		24V	10A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	8A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	20A	Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls						Adaptor for wall mounting (SilverLine)	30 x 42 x 14mm
Puls						Mounting adapter for S7-300 rail	42 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	51 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	66 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	90 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	121 x 125 x 18mm

Model	Output		Range	Power	Input	W x H x D
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm	no DC-OK contact
Puls		24V	10A	24-28Vdc	240W	220-240Vac	49 x 124 x 124mm
Puls		12V	30A	12-15Vdc	450W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	3.3A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Spring-clamp terminals
Puls		24V	5A	24-28Vdc	120W	100-120Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	200-240Vac	32 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Spring-clamp terminals
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	200-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	3.4A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm	ATEX Version
Puls		24V	3.8A	24Vdc	91.2W	100-240Vac	40 x 124 x 117mm	DeviceNet®
Puls		12V	15A	12-15Vdc	180W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	ATEX Version
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Conformal coated
Puls		30V	8A	28-32Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	8A	24-24.5Vdc	196W	100-240Vac	60 x 124 x 117mm	DeviceNet®
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	ATEX Version
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	200-240Vac	70 x 124 x 127mm
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	24Vdc	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm
Puls		24V	3.8A	24Vdc	92W	24Vdc	32 x 124 x 102mm	NEC Class 2
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm	Signal contacts
Puls		24V	5A	24-28Vdc	120W	48Vdc	32 x 124 x 102mm
Puls		24V	4A	24-28Vdc	96W	12Vdc	32 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		24V	20A	24-28Vdc	480W	600Vdc	65 x 124 x 127mm
Puls		24V	15A			6kWs EDLC Buffer module	126 x 124 x 117mm
Puls		24V	15A			12kWs EDLC Buffer module	198 x 124 x 117mm
Puls		24V	20A			Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls		48V	20A			Buffer unit, typ 150ms at 48V, 20A	64 x 124 x 102mm
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 3.9 to 40Ah batteries
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 17 to 130Ah batteries
Puls		24V	10A			DC-UPS Control unit, 24V and 12V	49 x 124 x 117mm	Additional 12V output
Puls		24V	20A			DC-UPS Control unit	46 x 124 x 117mm
Puls		24V	10A			DC-UPS with integrated battery	123 x 124 x 119mm	Battery included
Puls		24V	10A			UBC10.241, battery not assembled	123 x 124 x 119mm	Battery not assembled
Puls		12V	5Ah			Battery replacement	90 x 106 x 70mm
Puls		12V	7Ah			Battery replacement	151 x 98 x 65mm
Puls		12V	12Ah			Battery replacement	151 x 98 x 98mm
Puls		12V	26Ah			Battery replacement	175 x 125 x 166mm
Puls		12V	7Ah			Battery module with battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module with battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module with battery	137 x 186 x 120mm
Puls		24V	12AH			Battery module with battery	203 x 186 x 120mm
Puls		12V	7Ah			Battery module without battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module without battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module without battery	137 x 186 x 120mm
Puls		24V	12Ah			Battery module without battery	203 x 186 x 120mm
Puls		24V	40A			960W	3x 400Vac	96 x 124 x 157mm
Puls		24V	40A			960W	3x 480Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 400Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 480Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 400Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 480Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 400Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 480Vac	96 x 124 x 157mm
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 102mm
Puls		24V	40A			Dual Diode Redundancy Module	36 x 124 x 127mm
Puls		24V	40A			Dual Mosfet Redundancy Module	36 x 124 x 127mm	not for QT20, QTD20
Puls		24V	40A			Single Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		48V	40A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 117mm	with alarm contacts
Puls		410V	2.5A	360-460Vdc	1025W	220-240Vac	310 x 158 x 80mm
Puls						4-Channel Protection Module; Outputs: 4x1A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x2A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x3A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x4A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x6A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x10A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x3A & 2x6A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x6A & 2x12A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4xNEC CLASS 2	45 x 75 x 91mm
Puls						Sensor Board for Battery Modules	110.5 x 23 x 15mm
Puls						Wall mounting bracket UBC10	123 x 156 x 13mm
Puls						Wall mounting bracket	8 x 143 x 7mm
Puls						Wall / panel mount bracket	18 x 145 x 28mm
Puls						Side mounting bracket CS3, CS5, QS3, YR2, YRM2	145 x 65 x 37mm
Puls						Side mounting bracket QS5	145 x 65 x 44mm
Puls						Side mounting bracket CS10, QS10	145 x 65 x 63mm
Puls						Side mounting bracket QT20, QTD20, UF20	145 x 65 x 76mm
Puls						Side mounting bracket QS20.241, QS20.361, QS20.481	145 x 65 x 85mm
Puls		5V	3A	5-5.5Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		12V	1.3A	12-15Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	0.63A	24-28Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		5V	5A	5-5.5Vdc	25W	100-240Vac	45 x 75 x 91mm
Puls		12V	2.5A	10-12Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		±12V	2A	±12-15Vdc	36W	100-240Vac	45 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Parallel mode
Puls		12V	4.2A	12-15Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		48V	1.05A	48-56Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Conformal coated
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 98mm	Plug connector
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	3A	24-28Vdc	72W	100-120 / 220-240Vac	45 x 75 x 91mm
Puls		24V	3.9A	24-28Vdc	95W	100-120 / 220-240Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		12V	7.5A	12-15Vdc	90W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		48V	2.1A	48-56Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	5A	24Vdc	120W	200-240Vac	72.5 x 75 x 103mm
Puls		24V	3.8A	24Vdc	91.2W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	3.75A	24-28Vdc	90W	2x 380-480Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	2x 380-480Vac	72.5 x 75 x 103mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls						Wall / panel mount bracket for 45mm wide MiniLine units, bulk package with 25 pcs	45 x 35 x 7.5mm
Puls		24V	2.5A	24Vdc	60W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		12V	3A	12-15Vdc	40W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		24V	4A	24Vdc	96W	100-120 / 200-240Vac	64 x 124 x 103mm	NEC Class 2
Puls		24V	5A	24Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Adjustable output voltage
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		12V	15A	12-15Vdc	180W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		36V	13.3A	36-43Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm	Remote shut-down
Puls		24V	30A	24-28Vdc	720W	208-240Vac	240 x 124 x 112mm
Puls		24V	5A	24-28Vdc	120W	3x 400-500Vac	73 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 480Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 400-500Vac	150 x 124 x 121mm
Puls		24V	30A	24-28Vdc	720W	3x 400-500Vac	240 x 124 x 112mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm	Various signals included
Puls		30V	2.8A	30.5Vdc	85W	100-120 / 220-240Vac	49 x 124 x 102mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	100-120 / 220-240Vac	73 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	100-120 / 220-240Vac	91 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	3x 400-500Vac	129 x 124 x 117mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	24Vdc	40 x 124 x 102mm	for AS-Interface®
Puls		5V	8A	5-5.5Vdc	40W	24Vdc	49 x 124 x 102mm
Puls		24V	40A	Decoupling module 24-28V, 1x40A	48 x 124 x 117mm
Puls		24V	30A	Decoupling module 24-28V, 2x30A	48 x 124 x 102mm
Puls		24V	2.5A	Decoupling diode	49 x 124 x 102mm	Redundancy unit
Puls		24V	5A	Decoupling diode	64 x 124 x 102mm	Redundancy unit
Puls		24V	10A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	8A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	20A	Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls						Adaptor for wall mounting (SilverLine)	30 x 42 x 14mm
Puls						Mounting adapter for S7-300 rail	42 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	51 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	66 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	90 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	121 x 125 x 18mm

SẢN PHẨM TƯƠNG ĐƯƠNG

Model	Output		Range	Power	Input	W x H x D
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm	no DC-OK contact
Puls		24V	10A	24-28Vdc	240W	220-240Vac	49 x 124 x 124mm
Puls		12V	30A	12-15Vdc	450W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	3.3A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Spring-clamp terminals
Puls		24V	5A	24-28Vdc	120W	100-120Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	200-240Vac	32 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Spring-clamp terminals
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	200-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	3.4A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm	ATEX Version
Puls		24V	3.8A	24Vdc	91.2W	100-240Vac	40 x 124 x 117mm	DeviceNet®
Puls		12V	15A	12-15Vdc	180W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	ATEX Version
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Conformal coated
Puls		30V	8A	28-32Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	8A	24-24.5Vdc	196W	100-240Vac	60 x 124 x 117mm	DeviceNet®
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	ATEX Version
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	200-240Vac	70 x 124 x 127mm
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	24Vdc	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm
Puls		24V	3.8A	24Vdc	92W	24Vdc	32 x 124 x 102mm	NEC Class 2
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm	Signal contacts
Puls		24V	5A	24-28Vdc	120W	48Vdc	32 x 124 x 102mm
Puls		24V	4A	24-28Vdc	96W	12Vdc	32 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		24V	20A	24-28Vdc	480W	600Vdc	65 x 124 x 127mm
Puls		24V	15A			6kWs EDLC Buffer module	126 x 124 x 117mm
Puls		24V	15A			12kWs EDLC Buffer module	198 x 124 x 117mm
Puls		24V	20A			Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls		48V	20A			Buffer unit, typ 150ms at 48V, 20A	64 x 124 x 102mm
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 3.9 to 40Ah batteries
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 17 to 130Ah batteries
Puls		24V	10A			DC-UPS Control unit, 24V and 12V	49 x 124 x 117mm	Additional 12V output
Puls		24V	20A			DC-UPS Control unit	46 x 124 x 117mm
Puls		24V	10A			DC-UPS with integrated battery	123 x 124 x 119mm	Battery included
Puls		24V	10A			UBC10.241, battery not assembled	123 x 124 x 119mm	Battery not assembled
Puls		12V	5Ah			Battery replacement	90 x 106 x 70mm
Puls		12V	7Ah			Battery replacement	151 x 98 x 65mm
Puls		12V	12Ah			Battery replacement	151 x 98 x 98mm
Puls		12V	26Ah			Battery replacement	175 x 125 x 166mm
Puls		12V	7Ah			Battery module with battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module with battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module with battery	137 x 186 x 120mm
Puls		24V	12AH			Battery module with battery	203 x 186 x 120mm
Puls		12V	7Ah			Battery module without battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module without battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module without battery	137 x 186 x 120mm
Puls		24V	12Ah			Battery module without battery	203 x 186 x 120mm
Puls		24V	40A			960W	3x 400Vac	96 x 124 x 157mm
Puls		24V	40A			960W	3x 480Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 400Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 480Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 400Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 480Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 400Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 480Vac	96 x 124 x 157mm
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 102mm
Puls		24V	40A			Dual Diode Redundancy Module	36 x 124 x 127mm
Puls		24V	40A			Dual Mosfet Redundancy Module	36 x 124 x 127mm	not for QT20, QTD20
Puls		24V	40A			Single Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		48V	40A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 117mm	with alarm contacts
Puls		410V	2.5A	360-460Vdc	1025W	220-240Vac	310 x 158 x 80mm
Puls						4-Channel Protection Module; Outputs: 4x1A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x2A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x3A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x4A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x6A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x10A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x3A & 2x6A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x6A & 2x12A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4xNEC CLASS 2	45 x 75 x 91mm
Puls						Sensor Board for Battery Modules	110.5 x 23 x 15mm
Puls						Wall mounting bracket UBC10	123 x 156 x 13mm
Puls						Wall mounting bracket	8 x 143 x 7mm
Puls						Wall / panel mount bracket	18 x 145 x 28mm
Puls						Side mounting bracket CS3, CS5, QS3, YR2, YRM2	145 x 65 x 37mm
Puls						Side mounting bracket QS5	145 x 65 x 44mm
Puls						Side mounting bracket CS10, QS10	145 x 65 x 63mm
Puls						Side mounting bracket QT20, QTD20, UF20	145 x 65 x 76mm
Puls						Side mounting bracket QS20.241, QS20.361, QS20.481	145 x 65 x 85mm
Puls		5V	3A	5-5.5Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		12V	1.3A	12-15Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	0.63A	24-28Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		5V	5A	5-5.5Vdc	25W	100-240Vac	45 x 75 x 91mm
Puls		12V	2.5A	10-12Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		±12V	2A	±12-15Vdc	36W	100-240Vac	45 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Parallel mode
Puls		12V	4.2A	12-15Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		48V	1.05A	48-56Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Conformal coated
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 98mm	Plug connector
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	3A	24-28Vdc	72W	100-120 / 220-240Vac	45 x 75 x 91mm
Puls		24V	3.9A	24-28Vdc	95W	100-120 / 220-240Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		12V	7.5A	12-15Vdc	90W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		48V	2.1A	48-56Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	5A	24Vdc	120W	200-240Vac	72.5 x 75 x 103mm
Puls		24V	3.8A	24Vdc	91.2W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	3.75A	24-28Vdc	90W	2x 380-480Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	2x 380-480Vac	72.5 x 75 x 103mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls						Wall / panel mount bracket for 45mm wide MiniLine units, bulk package with 25 pcs	45 x 35 x 7.5mm
Puls		24V	2.5A	24Vdc	60W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		12V	3A	12-15Vdc	40W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		24V	4A	24Vdc	96W	100-120 / 200-240Vac	64 x 124 x 103mm	NEC Class 2
Puls		24V	5A	24Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Adjustable output voltage
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		12V	15A	12-15Vdc	180W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		36V	13.3A	36-43Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm	Remote shut-down
Puls		24V	30A	24-28Vdc	720W	208-240Vac	240 x 124 x 112mm
Puls		24V	5A	24-28Vdc	120W	3x 400-500Vac	73 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 480Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 400-500Vac	150 x 124 x 121mm
Puls		24V	30A	24-28Vdc	720W	3x 400-500Vac	240 x 124 x 112mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm	Various signals included
Puls		30V	2.8A	30.5Vdc	85W	100-120 / 220-240Vac	49 x 124 x 102mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	100-120 / 220-240Vac	73 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	100-120 / 220-240Vac	91 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	3x 400-500Vac	129 x 124 x 117mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	24Vdc	40 x 124 x 102mm	for AS-Interface®
Puls		5V	8A	5-5.5Vdc	40W	24Vdc	49 x 124 x 102mm
Puls		24V	40A	Decoupling module 24-28V, 1x40A	48 x 124 x 117mm
Puls		24V	30A	Decoupling module 24-28V, 2x30A	48 x 124 x 102mm
Puls		24V	2.5A	Decoupling diode	49 x 124 x 102mm	Redundancy unit
Puls		24V	5A	Decoupling diode	64 x 124 x 102mm	Redundancy unit
Puls		24V	10A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	8A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	20A	Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls						Adaptor for wall mounting (SilverLine)	30 x 42 x 14mm
Puls						Mounting adapter for S7-300 rail	42 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	51 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	66 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	90 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	121 x 125 x 18mm

Model	Output		Range	Power	Input	W x H x D
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm
Puls		24V	5A	24-28Vdc	120W	220-240Vac	39 x 124 x 124mm	no DC-OK contact
Puls		24V	10A	24-28Vdc	240W	220-240Vac	49 x 124 x 124mm
Puls		12V	30A	12-15Vdc	450W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	100-240Vac	65 x 124 x 127mm
Puls		24V	3.3A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	32 x 124 x 117mm	Spring-clamp terminals
Puls		24V	5A	24-28Vdc	120W	100-120Vac	32 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	200-240Vac	32 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Spring-clamp terminals
Puls		24V	10A	24-28Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	200-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	100-120 / 200-240Vac	60 x 124 x 117mm
Puls		24V	3.4A	24-28Vdc	80W	100-240Vac	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	100-240Vac	40 x 124 x 117mm	ATEX Version
Puls		24V	3.8A	24Vdc	91.2W	100-240Vac	40 x 124 x 117mm	DeviceNet®
Puls		12V	15A	12-15Vdc	180W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	ATEX Version
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Conformal coated
Puls		30V	8A	28-32Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm
Puls		24V	8A	24-24.5Vdc	196W	100-240Vac	60 x 124 x 117mm	DeviceNet®
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	ATEX Version
Puls		24V	20A	24-28Vdc	480W	100-240Vac	82 x 124 x 127mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	200-240Vac	70 x 124 x 127mm
Puls		36V	13.3A	36-42Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	100-240Vac	82 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	100-240Vac	125 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	200-240Vac	125 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	5A	24-28Vdc	120W	2x 380-480Vac	40 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		48V	5A	48-56Vdc	240W	3x 380-480Vac	62 x 124 x 117mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	20A	24-28Vdc	480W	3x 380-480Vac	65 x 124 x 127mm	Conformal coated
Puls		36V	13.3A	36-42Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		48V	10A	48-55Vdc	480W	3x 380-480Vac	65 x 124 x 127mm
Puls		24V	40A	24-28Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		36V	26.7A	36-42Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		48V	20A	48-54Vdc	960W	3x 380-480Vac	110 x 124 x 127mm
Puls		12V	8A	12-15Vdc	96W	24Vdc	32 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm
Puls		24V	3.8A	24Vdc	92W	24Vdc	32 x 124 x 102mm	NEC Class 2
Puls		24V	5A	24-28Vdc	120W	24Vdc	32 x 124 x 102mm	Signal contacts
Puls		24V	5A	24-28Vdc	120W	48Vdc	32 x 124 x 102mm
Puls		24V	4A	24-28Vdc	96W	12Vdc	32 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		48V	10A	48-56Vdc	480W	110-300Vdc	65 x 124 x 127mm
Puls		24V	10A	24-28Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		48V	5A	48-56Vdc	240W	100-240Vac	60 x 124 x 117mm	Extended DC-Input
Puls		24V	20A	24-28Vdc	480W	600Vdc	65 x 124 x 127mm
Puls		24V	15A			6kWs EDLC Buffer module	126 x 124 x 117mm
Puls		24V	15A			12kWs EDLC Buffer module	198 x 124 x 117mm
Puls		24V	20A			Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls		48V	20A			Buffer unit, typ 150ms at 48V, 20A	64 x 124 x 102mm
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 3.9 to 40Ah batteries
Puls		24V	10A			DC-UPS Control unit	49 x 124 x 117mm	for 17 to 130Ah batteries
Puls		24V	10A			DC-UPS Control unit, 24V and 12V	49 x 124 x 117mm	Additional 12V output
Puls		24V	20A			DC-UPS Control unit	46 x 124 x 117mm
Puls		24V	10A			DC-UPS with integrated battery	123 x 124 x 119mm	Battery included
Puls		24V	10A			UBC10.241, battery not assembled	123 x 124 x 119mm	Battery not assembled
Puls		12V	5Ah			Battery replacement	90 x 106 x 70mm
Puls		12V	7Ah			Battery replacement	151 x 98 x 65mm
Puls		12V	12Ah			Battery replacement	151 x 98 x 98mm
Puls		12V	26Ah			Battery replacement	175 x 125 x 166mm
Puls		12V	7Ah			Battery module with battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module with battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module with battery	137 x 186 x 120mm
Puls		24V	12AH			Battery module with battery	203 x 186 x 120mm
Puls		12V	7Ah			Battery module without battery	155 x 124 x 112mm
Puls		12V	26Ah			Battery module without battery	214 x 158 x 179mm
Puls		24V	7Ah			Battery module without battery	137 x 186 x 120mm
Puls		24V	12Ah			Battery module without battery	203 x 186 x 120mm
Puls		24V	40A			960W	3x 400Vac	96 x 124 x 157mm
Puls		24V	40A			960W	3x 480Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 400Vac	96 x 124 x 157mm
Puls		36V	26.6A			960W	3x 480Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 400Vac	96 x 124 x 157mm
Puls		48V	20A			960W	3x 480Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 400Vac	96 x 124 x 157mm
Puls		72V	13.3A			960W	3x 480Vac	96 x 124 x 157mm
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 102mm
Puls		24V	40A			Dual Diode Redundancy Module	36 x 124 x 127mm
Puls		24V	40A			Dual Mosfet Redundancy Module	36 x 124 x 127mm	not for QT20, QTD20
Puls		24V	40A			Single Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		48V	40A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm
Puls		24V	80A			Dual Mosfet Redundancy Module	46 x 124 x 127mm	not for QT40
Puls		24V	20A			Dual Diode Redundancy Module	32 x 124 x 117mm	with alarm contacts
Puls		410V	2.5A	360-460Vdc	1025W	220-240Vac	310 x 158 x 80mm
Puls						4-Channel Protection Module; Outputs: 4x1A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x2A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x3A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x4A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x6A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4x10A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x3A & 2x6A	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 2x6A & 2x12A; max. 20A in total	45 x 75 x 91mm
Puls						4-Channel Protection Module; Outputs: 4xNEC CLASS 2	45 x 75 x 91mm
Puls						Sensor Board for Battery Modules	110.5 x 23 x 15mm
Puls						Wall mounting bracket UBC10	123 x 156 x 13mm
Puls						Wall mounting bracket	8 x 143 x 7mm
Puls						Wall / panel mount bracket	18 x 145 x 28mm
Puls						Side mounting bracket CS3, CS5, QS3, YR2, YRM2	145 x 65 x 37mm
Puls						Side mounting bracket QS5	145 x 65 x 44mm
Puls						Side mounting bracket CS10, QS10	145 x 65 x 63mm
Puls						Side mounting bracket QT20, QTD20, UF20	145 x 65 x 76mm
Puls						Side mounting bracket QS20.241, QS20.361, QS20.481	145 x 65 x 85mm
Puls		5V	3A	5-5.5Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		12V	1.3A	12-15Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	0.63A	24-28Vdc	15W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		5V	5A	5-5.5Vdc	25W	100-240Vac	45 x 75 x 91mm
Puls		12V	2.5A	10-12Vdc	30W	100-240Vac	45 x 75 x 91mm
Puls		±12V	2A	±12-15Vdc	36W	100-240Vac	45 x 75 x 91mm
Puls		24V	1.3A	24-28Vdc	30W	100-240Vac	22.5 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Parallel mode
Puls		12V	4.2A	12-15Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		48V	1.05A	48-56Vdc	50W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 91mm	Conformal coated
Puls		24V	2.1A	24-28Vdc	50W	100-240Vac	45 x 75 x 98mm	Plug connector
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm
Puls		12V	4.5A	12-15Vdc	54W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm
Puls		24V	2.5A	24-28Vdc	60W	100-240Vac	45 x 75 x 91mm	-40°C operation
Puls		24V	3A	24-28Vdc	72W	100-120 / 220-240Vac	45 x 75 x 91mm
Puls		24V	3.9A	24-28Vdc	95W	100-120 / 220-240Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		12V	7.5A	12-15Vdc	90W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		48V	2.1A	48-56Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	4.2A	24-28Vdc	100W	100-120 / 220-240Vac	72.5 x 75 x 103mm	Conformal coated
Puls		24V	5A	24-28Vdc	120W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	5A	24Vdc	120W	200-240Vac	72.5 x 75 x 103mm
Puls		24V	3.8A	24Vdc	91.2W	100-120 / 220-240Vac	72.5 x 75 x 103mm
Puls		24V	3.75A	24-28Vdc	90W	2x 380-480Vac	72.5 x 75 x 103mm	NEC Class 2
Puls		24V	4.2A	24-28Vdc	100W	2x 380-480Vac	72.5 x 75 x 103mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls		24V	10A			Decoupling module 10-60V, 2x5A or 1x10A	45 x 75 x 91mm
Puls						Wall / panel mount bracket for 45mm wide MiniLine units, bulk package with 25 pcs	45 x 35 x 7.5mm
Puls		24V	2.5A	24Vdc	60W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		12V	3A	12-15Vdc	40W	100-120 / 200-240Vac	49 x 124 x 102mm
Puls		24V	4A	24Vdc	96W	100-120 / 200-240Vac	64 x 124 x 103mm	NEC Class 2
Puls		24V	5A	24Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Adjustable output voltage
Puls		24V	5A	24-28Vdc	120W	100-120 / 200-240Vac	64 x 124 x 102mm	Passive PFC
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		12V	15A	12-15Vdc	180W	100-120 / 210-240Vac	120 x 124 x 102mm
Puls		24V	10A	24-28Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		48V	5A	48-56Vdc	240W	100-120 / 210-240Vac	120 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	200-240Vac	220 x 124 x 102mm	Passive PFC
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		36V	13.3A	36-43Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	100-120 / 220-240Vac	220 x 124 x 102mm	Remote shut-down
Puls		24V	30A	24-28Vdc	720W	208-240Vac	240 x 124 x 112mm
Puls		24V	5A	24-28Vdc	120W	3x 400-500Vac	73 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		48V	5A	48-52Vdc	240W	3x 400-500Vac	89 x 124 x 117mm
Puls		24V	10A	24-28Vdc	240W	3x 400-500Vac	89 x 124 x 117mm	Conformal coated
Puls		24V	20A	24-28Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 480Vac	220 x 124 x 102mm
Puls		48V	10A	48-56Vdc	480W	3x 400Vac	220 x 124 x 102mm
Puls		24V	20A	24-28Vdc	480W	3x 400-500Vac	150 x 124 x 121mm
Puls		24V	30A	24-28Vdc	720W	3x 400-500Vac	240 x 124 x 112mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm
Puls		24V	40A	24-28Vdc	960W	3x 400-500Vac	275 x 124 x 117mm	Various signals included
Puls		30V	2.8A	30.5Vdc	85W	100-120 / 220-240Vac	49 x 124 x 102mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	100-120 / 220-240Vac	73 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	100-120 / 220-240Vac	91 x 124 x 102mm	for AS-Interface®
Puls		30V	8A	30.5Vdc	240W	3x 400-500Vac	129 x 124 x 117mm	for AS-Interface®
Puls		30V	4A	30.5Vdc	120W	24Vdc	40 x 124 x 102mm	for AS-Interface®
Puls		5V	8A	5-5.5Vdc	40W	24Vdc	49 x 124 x 102mm
Puls		24V	40A	Decoupling module 24-28V, 1x40A	48 x 124 x 117mm
Puls		24V	30A	Decoupling module 24-28V, 2x30A	48 x 124 x 102mm
Puls		24V	2.5A	Decoupling diode	49 x 124 x 102mm	Redundancy unit
Puls		24V	5A	Decoupling diode	64 x 124 x 102mm	Redundancy unit
Puls		24V	10A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	8A	Decoupling diode	120 x 124 x 102mm	Redundancy unit
Puls		24V	20A	Buffer unit, typ 310ms at 24V, 20A	64 x 124 x 102mm
Puls						Adaptor for wall mounting (SilverLine)	30 x 42 x 14mm
Puls						Mounting adapter for S7-300 rail	42 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	51 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	66 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	90 x 125 x 18mm
Puls						Mounting adapter for S7-300 rail	121 x 125 x 18mm

LIÊN HỆ

GREENTECH Việt Nam - Công ty TNHH TM DV GREENTECH là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay

Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.

[ Email ] nhan@greentechvn.com | sales@greentechvn.com | ltnhan.gh@gmail.com
Online contact========

Yahoo: nhan.luongthe
Skype: luongthenhan
===================

Greentech Trading Service Company Limited

[ Main Office ] 33 Street DC5, Son Ky Ward, Tan Phu District, HCM City, Vietnam

[ Branch Office ] 92/8 Huynh Thuc Khang Street, Tam Ky City, Quang Nam Province, Viet Nam

[ Tel & Fax ] + 84 (0) 28 3816 1314
[ Website ] http://greentechvn.com | http://greentechvn.net

[ Face Page ] https://www.facebook.com/greentechvietnam/

-------------------------------

Ø Flow, pressure and level measurement | Temperature and humidity measurement | Position measurement | Force measurement

Ø Optical and acoustic measurement | Electrical measurement | Hydraulics – Pneumatic

Ø Valve - Pipes, tubes and fittings

Ø Building Management System

aØ Smarthome

µ FAST - FLEXIBLE - FLASH µ

-------------------------------------------------------------------

-----------------------------------------------

Bình chọn sản phẩm: (5.0 / 1 Bình chọn)

+59.312.595 sản phẩm từ 3.200+ Web gian hàng

Bộ nguồn Puls SLR10.241 | Puls SLR10.241 | Bộ nguồn 220VAC/24VDC 10A SLR10.241 | Puls Vietnam

SLR10.100

Thẻ nhớ PLC FATEK FBS PACK

CẦU CHÌ HINODE 660GH-160S

Chuông không dây trong nhà - Tương thích với chuông cửa Video thông minh

Màn hình Fatek P2070SA

Màn hình Fatek C2070SA

📌 KÍNH CƯỢNG LỰC QUẪN TÂN BÌNH HCM | CITYBUILDING THI CÔNG CHUYÊN NGHIỆP, GIÁ GỐC

📌 GIÁ KÍNH CƯờNG LỰC QUẪn PHÚ NHUẬN HCM | BÁO GIÁ THI CÔNG MỚI NHẤT TẠI CITYBUILDING

👉 KÍNH CƯỜNG LỰC QUẬN PHÚ NHUẬN HCM | THI CÔNG CHUYÊN NGHIỆP – GIÁ XƯỞNG CITYBUILDING

📌 GIÁ KÍNH CƯỜNG LỰC QUẬN 12 HCM | LẮP ĐẶT NHANH – GIÁ TẬN XƯỞNG – CITYBUILDING

🔖 KÍNH CƯỜNG LỰC QUẬN 12 HCM | THI CÔNG CHUYÊN NGHIỆP – GIÁ GỐC TẠI CITYBUILDING ✨

📌 GƯƠNG NHÀ TẮM KHUNG INOX MẠ VÀNG CITYBUILDING – THIẾT KẾ BO CONG SANG TRỌNG

Màn hình Proface PFXSTM6400WADE 7inch

🎯 BẠN LÀ CÔNG TY NỘI THẤT – THIẾT KẾ ĐANG CẦN TÌM ĐỐI TÁC SẢN XUẤT GƯƠNG THEO YÊU CẦU?

💥 KÍNH CƯỜNG LỰC QUẬN 11 HCM | CITYBUILDING THI CÔNG UY TÍN – GIÁ TẠI XƯỞNG

📌 SẢN XUẤT GƯƠNG TREO TƯỜNG THEO YÊU CẦU HÀ NỘI, HCM | CITYBUILDING

📌 SẢN XUẤT GƯƠNG BÀN TRANG ĐIỂM THEO YÊU CẦU HÀ NỘI, TPHCM | CITYBUILDING

📌 SẢN XUẤT GƯƠNG NHÀ TẮM THEO YÊU CẦU – CITYBUILDING | CẮT KÍCH THƯỚC – MẪU MÃ ĐA DẠNG

Máy nén lạnh Tecumseh model FH4532Z-XC3A

Gas lạnh Honeywell R-452A- Giải pháp thay thế bền vững cho hệ thống lạnh

Gioăng (ron) cao su cửa kho lạnh
