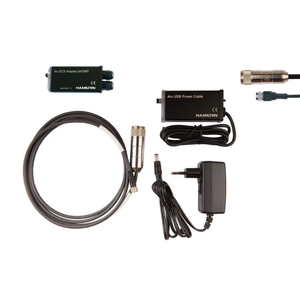

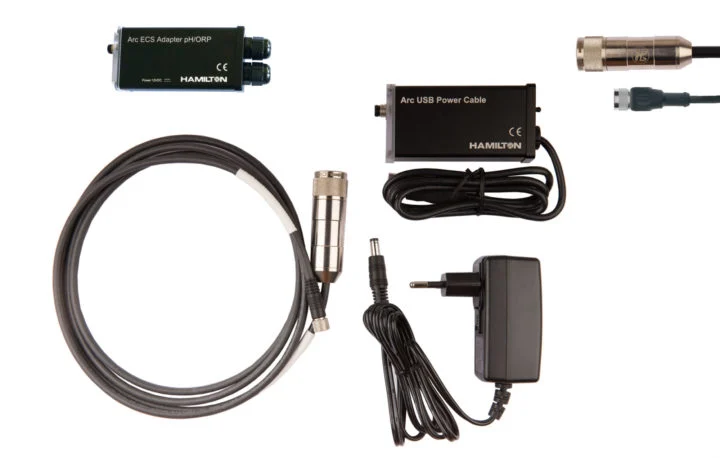

• Arc Power Cables (ArcAir to PC or passive hard-wired connections)

    Part # / Ref      Electrical Connector      Digital Interface         Power Supply   Operating Temperature Range
    355194-xx

    VP8 / Open End / Power Plug

    		 --

    110 to 240 VAC to 24 VDC

    		 --
    243490-01

    USB / VP8

    USB 2.0

    USB powered (5 VDC / 500 mA)

    5 to 50 °C
    243490-02

    USB / M12-8 Pole A-Coded

    USB 2.0

    USB powered (5 VDC / 500 mA)

    5 to 50 °C
    10143091

    M12-8 / Open End / Power Plug

    		 --

    110 / 220 VAC to 24 DC

    		 --
    10143092

    M12-8 / Open End / Power Plug

    		 --

    110 / 220 VAC to 24 DC

    		 --



  • Arc VP8 Data Cables (Modbus or 4-20mA connection to powered devices)

    Part # / Ref          Electrical Connector           Length    Operating Temperature Range
    355263

    VP8 / Open End

    1 m

    -30 to 80 °C
    355264

    VP8 / Open End

    3 m

    -30 to 80 °C
    355265

    VP8 / Open End

    5 m

    -30 to 80 °C
    355266

    VP8 / Open End

    10 m

    -30 to 80 °C
    355267

    VP8 / Open End

    15 m

    -30 to 80 °C
    355268

    VP8 / Open End

    20 m

    -30 to 80 °C



  • Arc VP8 Data Cables (Modbus communication only)

    Part # / Ref   Electrical Connector   Length    Operating Temperature Range
    10109026

    VP8 / Open End

    1 m

    -25 to 80 °C
    10109250

    VP8 / Open End

    3 m

    -25 to 80 °C
    10109251

    VP8 / Open End

    2 m

    -25 to 80 °C

  • Arc M12 / Open 8-Pole Data Cables

    Part # / Ref  Length   Electrical Connector                        Operating Temperature Range
    355320

    3 m

    M12-8 Pole A-Coded / Open End

    -20 to 85 °C
    355321

    5 m

    M12-8 Pole A-Coded / Open End

    -20 to 85 °C
    355322

    10 m

    M12-8 Pole A-Coded / Open End

    -20 to 85 °C

  • Arc M12 / VP8 Data Cables (OEM bioreactor applications)

    Part # / Ref   Electrical Connector       Length      Material Outer Cover    Operating Temperature Range
    10067844

    VP8 / M12 8-Pole Male

    5 m

    PUR

    -25 to 80 °C
    10067846

    VP8 / M12 8-Pole Male

    10 m

    PUR

    -25 to 80 °C
    10070910

    VP8 / M12 8-Pole Male

    1 m

    PUR

    -25 to 80 °C
    10071905

    VP8 / M12 8-Pole Male

    3 m

    PUR

    -25 to 80 °C

  • Arc pH / ORP ECS Adapters (analog bioreactor and transmitter applications)

    Part # / Ref                Electrical Connector                    Length          Power Supply
    243169-xx

    VP8 / Open End / Power Plug

    2 m

    110/240 VAC
    243168-xx

    VP8 / BNC / Power Plug

    2 m

    110/240 VAC

  • Arc Biocontroller Specific Cables

    Part # / Ref        Sensor Connectors                                    Process Connection Length
    10153523

    M12 8 Pole A coded F (intended for use with Arc Wi 2G REF: 243470)

    M12 8 Pole A coded M (intended for use with selected Sartorious Biostat systems)

    3 m
