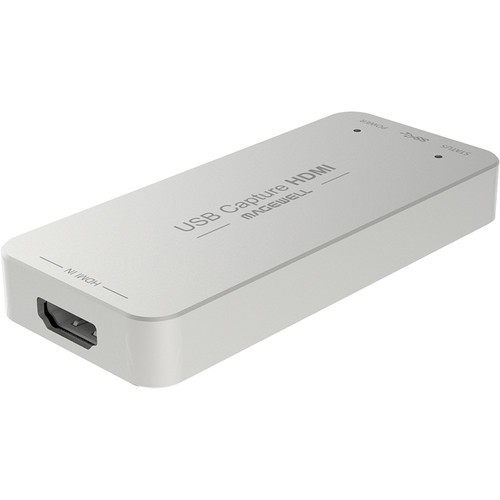

Tên thiết bị: Card ghi hình Magewell USB Capture HDMI Gen 2 live stream video Facebook, youtube

Model:   Magewell USB Capture HDMI Gen 2

Thương hiệu:  Magewell

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Hình ảnh thiết bị như hình chụp



Magewell 32060 Overview

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution. It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer's CPU.

Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.

No drivers needed for Windows, Mac, or Linux
Automatically determines input video format and converts it to the specified output size and frame rate
Automatically converts input audio formats to 48 kHz PCM stereo audio
64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied


Magewell 32060 Specs

Host Connection USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)
Input
Video Input Connectors 1 x HDMI (HDMI 1.4a / DVI) Female
Input Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
2048 x 2160
1080p: 60/75 fps
Audio Input Connectors None
Embedded Audio Input HDMI: 2-Channel
Hardware
OS Compatibility Windows 7 or Later
macOS 10.9 or Later
Linux
Chrome OS
Power
Power Connector None
Power Consumption 5 VDC at 0.5 A (2.5 W)
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 5 to 90%
General
Dimensions 3.63 x 1.58 x 0.48" / 92.2 x 40.2 x 12.3 mm
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 0.4 lb
Box Dimensions (LxWxH) 5.1 x 4.8 x 1"



In the Box

  • Magewell USB Capture HDMI Gen 2
  • USB 3.0 Cable
  • Limited 1-Year Warranty
