| Ordering details | |
| Product type description | CSS 11-30S-D-M-ST |
| Article number | 101204612 |
| EAN code | 4030661381664 |
| eCl@ss | 27-27-24-01 |
| Approval | |
| Approval |
TÜV
USA/CAN |
| Classification | |
| Standards | EN ISO 13849-1, IEC 61508, IEC 60947-5-3 |
| PL | up e |
| Control category | bis 4 |
| PFH | 3.6 x 10 -9/h |
| SIL | bis 3 |
| Mission time | 20 Years |
| Classification | PDF-M |
| Global Properties | |
| Product name | CSS 30S |
| Standards | IEC 60947-5-3, IEC 61508 |
| Compliance with the Directives (Y/N)
| Yes |
| Suitable for safety functions (Y/N) | Yes |
| Protection rating | II |
| Function | Sensor for series wiring |
| Series-wiring | up to 31 components |
| Length of the sensor chain | max. 200 m |
| Active principle | inductive |
| Materials | |
| - Material of the housings | Stainless steel |
| Housing construction form | cylinder, thread |
| Weight | 245 g |
| Diagnostic output (Y/N) | Yes |
| Reaction time | < 60 ms |
| Duration of risk | < 60 ms |
| Cascadable (Y/N) | Yes |
| Recommended actuator | CST 30S-1 |
| Mechanical data | |
| mechanical installation conditions | not flush |
| Actuating planes | Actuation from top |
| Active area | front |
| Switch distance Sn | 11 mm |
| Ensured switch distance ON Sao | 8 mm |
| Ensured switch distance OFF Sar | 15 mm |
| hysteresis | < 2 mm |
| Repeat accuracy R R | < 1 mm |
| restistance to shock | 30 g / 11 ms |
| Resistance to vibration | 10 ... 55 Hz, Amplitude 1 mm |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −25 °C |
| - Max. environmental temperature | +65 °C |
| Storage and transport temperature | |
| - Min. Storage and transport temperature | −25 °C |
| - Max. Storage and transport temperature | +85 °C |
| Protection class | IP65, IP67 to IEC/EN 60529IP69K to DIN 40050-9 |
| Air clearances and creepage distances To IEC/EN 60664-1 | |
| - Rated impulse withstand voltage Uimp | 0,8 kV |
| - Overvoltage category | III |
| - Degree of pollution | 3 |
| Electromagnetic compatibility (EMC) | |
| EMC rating | to IEC 61000-6-2 |
| Interfering radiation | to IEC 61000-6-4 |
| Electrical data | |
| Cross circuit/short circuit recognition possible (Y/N) | Yes |
| Voltage type | DC |
| Switch frequency | 3 Hz |
| Rated insulation voltage Ui | 32 VAC/DC |
| Rated operating voltage Ue (stabilised PELV) | |
| - Min. Rated operating voltage | 20.4 VDC |
| - Max. Rated operating voltage | 26.4 VDC |
| Operating current Ie | 0,6 A |
| No-load current I0 | 0,1 A |
| Required rated short-circuit current | 100 A |
| Device insulation (Circuit breaker) | 2 A |
| notice | The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current |
| Electrical data - Safety inputs | |
| Safety inputs | X1 and X2 |
| Electrical data - Safety outputs | |
| Safety outputs | Y1 and Y2 |
| Fuse rating | short-circuit proof |
| Design of control output | p-type |
| Number of secure semi-conductor outputs | 2 piece |
| Max. output current at secured output | 0,25 A |
| Rated operating voltage | min. (Ue − 1 V) |
| Residual current Ir | < 0,5 mA |
| Operating current Ie | max. 0,25 A |
| Minimum operating current Im | 0,5 mA |
| Utilisation category | DC-12: 24 V / 0,25 ADC-13: 24 V / 0,25 A |
| Voltage drop Ud | < 1 V |
| Electrical data - Diagnostic output | |
| Serial diagnostics (Y/N) | No |
| Fuse rating | short-circuit proof |
| Design of control output | p-type |
| Number of semi-conductor outputs with signaling function | 1 piece |
| Rated operating voltage | min. (Ue − 5 V) |
| Operating current Ie | max. 0,05 A |
| Voltage drop Ud | < 5 V |
| Utilisation category | DC-12: 24 V / 0,05 ADC-13: 24 V / 0,05 A |
| LED switching conditions display | |
| LED switching conditions display (Y/N) | Yes |
| Number of LED´s | 2 piece |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Length of sensor | 99.5 mm |
| - Diameter of sensor | M30 |
| Pin assignment | |
| 1 - A1 Ue | (1) |
| 2 - X1 Safety input 1 | (2) |
| 3 - A2 GND | (3) |
| 4 - Y1 Safety output 1 | (4) |
| 5 - OUT Diagnostic output | (5) |
| 6 - X2 Safety input 2 | (6) |
| 7 - Y2 Safety output 2 | (7) |
| 8 - IN without function | (8) |
| notice | |
| Requirements for the safety monitoring module | The safety monitoring module must tolerate internal functional tests of the safety outputs for 250 μs –1500 μs.The 250 μs switch-off time of the safety sensor additionally will be extended depending on the cable length and the capacity of the cable used. Typically, a switch-off time of 500 μs is reached with a 100 m connecting cable. |
| Included in delivery | |
| Actuators must be ordered separately. | |
| Mounting accessories Nuts M 18 x 1 | 2 piece |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 13.08.2017 - 14:49:08h Kasbase 3.2.7.F.64I | |

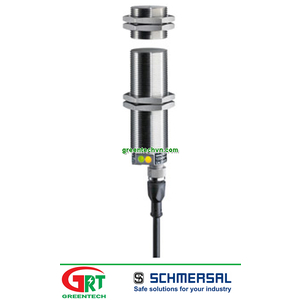

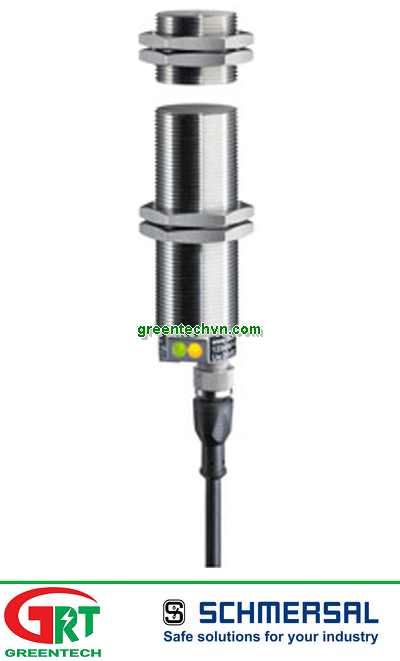

CSS 11-30S-D-M-ST | Schmersal | Công tắc, cảm biến cửa an toàn | Schmersal Việt Nam
