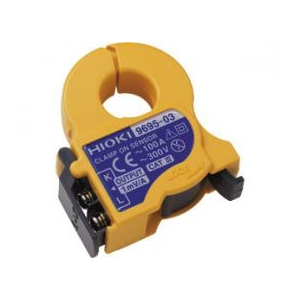

Dải đo: 100 A AC
- Dòng lớn nhất cho phép: 130A rms (45-66 Hz)
- Điện áp đầu ra: AC 1 mV / A
- Độ chính xác biên độ: ± 0,3% RDG. ± 0.02% f.s. (45-66 Hz)
- Độ chính xác Phase: ± 1 ° (45-5 kHz)
- đặc trưng tần số 40 Hz đến 5 kHz: ± 1.0%
- Đường kính kìm: φ 15 mm (0,59 in)
- Kích thước và khối lượng 50,5 mm (1,99 in) W × 58 mm (2,28 in) H × 18,7 mm (0,74 in) D, 50 g (1.8 oz)
- Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter)
- Tùy chọn: cáp kết nối 9219 (chiều dài 3m)
CONNECTION CABLE 9219
Connect with the 9695-02/ -03, Output BNC terminal, 3m (9.84ft) length
CLAMP SENSOR CABLE 9238
For the 9695, 3 m twisted-pair cable with round clipping terminal
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)f.s. is the sensor’s rated measurement current value.
| Rated measurement current |
100 A AC |
| Max. measurement current |
Continuous 130 A (45 to 66 Hz) |
| Output rate |
1 mV AC/ A |
| Amplitude accuracy (45 to 66 Hz) |
±0.3 % rdg. ±0.02 % f.s. |
| Phase accuracy |
±1° (45 Hz to 5 kHz) |
| Amplitude frequency characteristics |
Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy) |
| Max. rated voltage to earth |
300 V AC rms or less (Insulated conductor) |
| Measurable conductor diameter |
φ 15 mm (0.59 in) or less |
| Operating temperature and humidity |
0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation) |
| Dimensions and mass |
50.5 mm (1.99 in)W × 58 mm (2.28 in)H × 18.7 mm (0.74 in)D, 50 g (1.8 oz)
Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter)
Option: Connection cable 9219 (3 m, 9.84 ft length) |
CONNECTION CABLE 9219
Connect with the 9695-02/ -03, Output BNC terminal, 3m (9.84ft) length
CLAMP SENSOR CABLE 9238
For the 9695, 3 m twisted-pair cable with round clipping terminal
