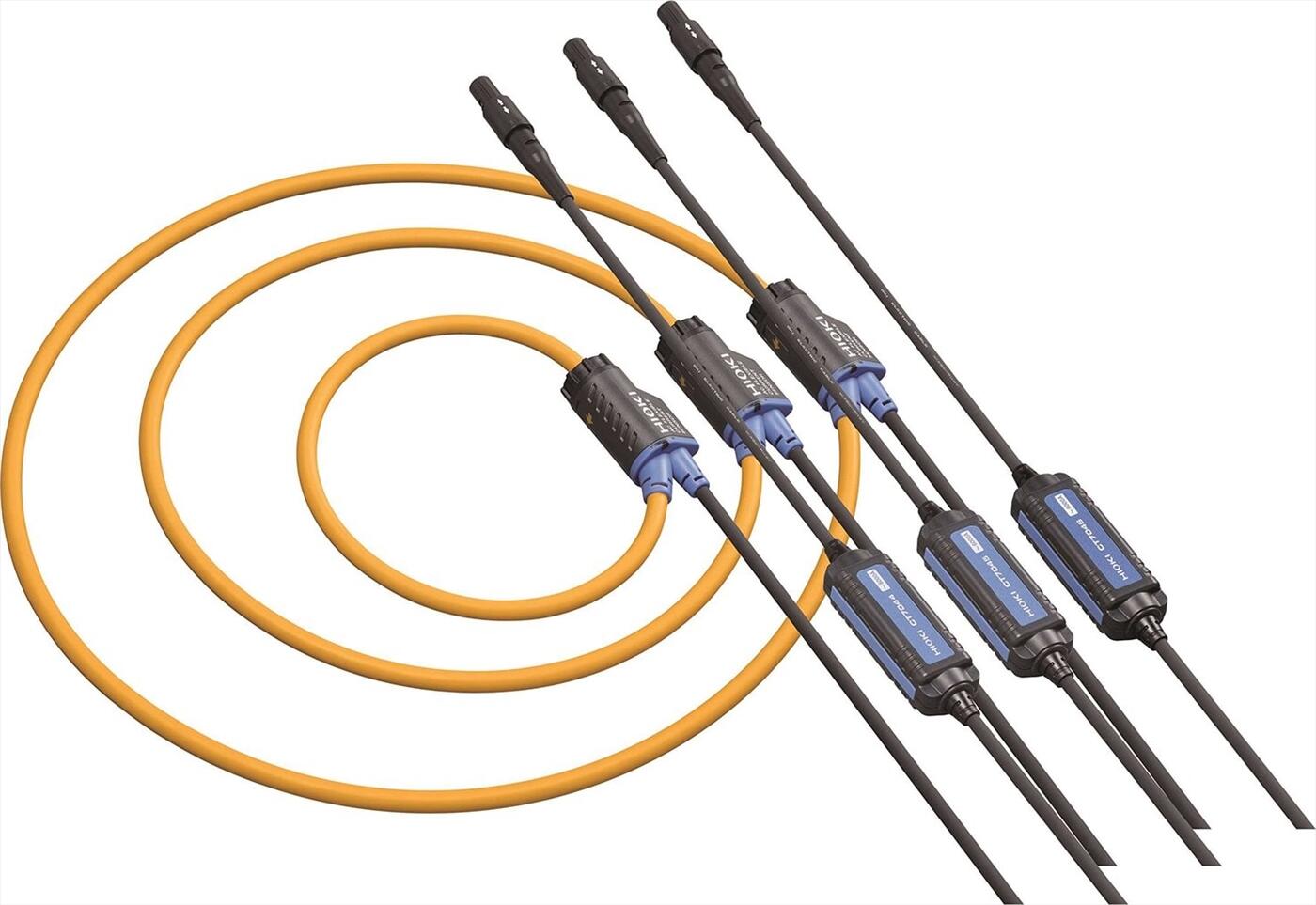

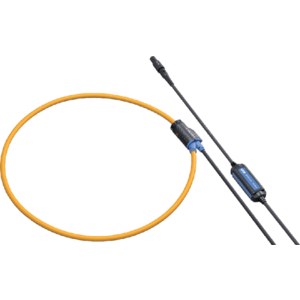

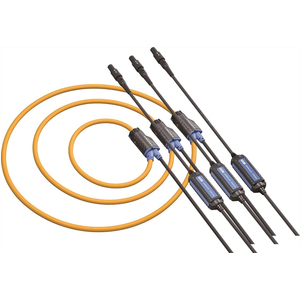

Đầu đo dòng điện CT7040s ( 6000/600A AC)

(0 đánh giá)

Mã SP: CT7040
Vui lòng gọi

Xuất xứ :HIOKI - Nhat Ban

Nơi rao bán :Toàn quốc

Tình trạng :Mới 100%

Ngày cập nhật :22-09-2020 15:51:14

Bảo hành :12 tháng

CAT IV 600 V, CAT III 1000 V Key Features • Thinner cables are easier to use in confined spaces and with complicated wiring • Supports large current measurements up to 6000 A • Wide 10 Hz to 50 kHz band with excellent frequency characteristics • Choose from three conductor diameter sizes • Ideal for site inspections by using detachable Display Unit • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz

LIÊN HỆ VỚI NGƯỜI BÁN

SOLUTION - TEST EQUIPMENT / CALIBRATION - SERVICE

Hai Bà Trưng - Hà Nội

090.200.6658

Hiokivietnam.hn6@gmail.com

http://hiokivietnam.com.vn

Ghi chú: GianHangVN không trực tiếp bán sản phẩm, vui lòng liên hệ trực tiếp với người bán bên trên.

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)* Waterproof characteristics intended to maintain measurement function; measuring energized parts while instrument is wet will increase risk of electric shock.

  CT7046 CT7045 CT7044
Rated measurement current 6000 A AC
Internal Measurement range 600A AC/ 6000A AC (Range is controlled by main device)
Max. allowable input 10000 A continuous (at 6000 A range, 45 to 66 Hz, requires derating )
Bandwidth 10 Hz to 50 kHz (±3dB)
(When used in combination with CM7290 or CM7291: 10 Hz to 1 kHz)
Amplitude and phase accuracy ±1.5 % rdg. ±0.25 % f.s. (f.s. is internal range, 45 to 66 Hz) ±1 deg
Output rate 1 mV/A (600 A*), 0.1 mV/A (6000 A)
*Selectable only when used with CM7290, CM7291, PQ3100
Max. rated voltage to earth AC 600 V (CAT IV), AC 1000 V (CAT III)
Loop diameter φ 254 mm (10.00 in) or less φ 180 mm (7.09 in) or less φ 100 mm (3.94 in) or less
Dust and water resistance * IP54 (when connected to a supported instrument, Do not make measurements when wet.)
Output connectors HIOKI PL 14
Operating temperature range -25 °C to 65 °C (-13 °F to 149 °F)
Dimensions Flexible loop cable diameter: φ7.4 mm (0.29 in), Cable length: Between flexible loop and battery box: 2.3 m (7.55 ft), Output cable: 20 cm (0.66 ft), Battery box25 mm (0.98 in)W × 72 mm (2.83 in)H × 20 mm (0.79 in)D
Mass 186 g (6.6 oz) 174 g (6.1 oz) 160 g (5.6 oz)
Accessories Instruction manual ×1



Options

Display, Output

DISPLAY UNIT CM7290

• Pair with CT7000 series • DCA, ACA, (DC+AC)A, frequency • WAVE, RMS, PEAK, Hz output

Learn more



DISPLAY UNIT CM7291 (Bluetooth®)

• Bluetooth(R) wireless technology • Pair with CT7000 series • DCA, ACA, (DC+AC)A, frequency • WAVE, RMS, PEAK, Hz output

Learn more

Output cord

OUTPUT CORD L9094

φ 3.5 mm (0.14 in) dia. mini plug to banana, 1.5 m (4.92 ft) length



OUTPUT CORD L9095

Connect to BNC terminal, 1.5 m (4.92 ft) length



OUTPUT CORD L9096

Connect to terminal block, 1.5 m (4.92 ft) length
