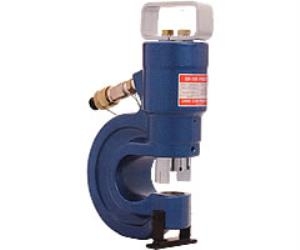

Đầu đột lỗ thanh cái thủy lực IZUMI SH-70B
Mã đầu ép |
SH-70B |
Chiều dày của tấm đột (mm) |
13 |
Lực đột (T) |
30 tấn (304 kN) |
Chiều sâu họng đột (mm) |
70 |
Size mũi đột |
10.5, 13.5, 17.5, 20.5mm |
Trọng lượng ( kg) |
14 kg |
Kích thước thân đột |
360 (H) x 210 (W) x 95 (D) mm
|
Hydraulic Punches |
|
MODEL No : SH-70B |
Punching capacity : 20.5 mm diameter hole on 13 mm thickness mild steel |
|
 |
|
|
|
SPECIFICATIONS |
Thorat depth |
: |
70 mm |
Oil volume required |
: |
82 cc |
Output force |
: |
304 kN at 68.5 Mpa pressure |
|
|
|
SIZE |
360 (H ) x 210 (W) x 95 (D) mm |
|
|
|
|
|
|
ACCESSORIES |
Punch & Die for mild steel : 10.5, 13.5, 17.5, 20.5mm diameter, Hand pin, Steel carrying case |
|
|
|
REMARKS |
* |
Powerful perforation up to 13 mm thick mild steel with a 20.5 mm maximum hole |
* |
Recommended for angle iron, plates, beams and bus bars |
* |
Stripper guide extends to grip material before punching so that bending and binding or slippage can be avoided |
* |
Stripper guide clamps punch in place to free operator's hands |
* |
70 mm throat depth allows commonly used angle iron |
* |
New fixed Support stand. |
|
|
|
FEATURES |
The portable SH-70B punch was designed to punch holes through 13 mm mild steel, aluminum and copper. |
A stripper guide extends on either side of the ram to strip the material after punching. This powerful punch will operate from any 68.5Mpa (10,000 PSI) hydraulic pump. |
The SH-70B comes complete with four sets of punch and die sizes for 3/8", 1/2", 5/8" and 3/4" bolts, hand pin, carrying case.
|
|
