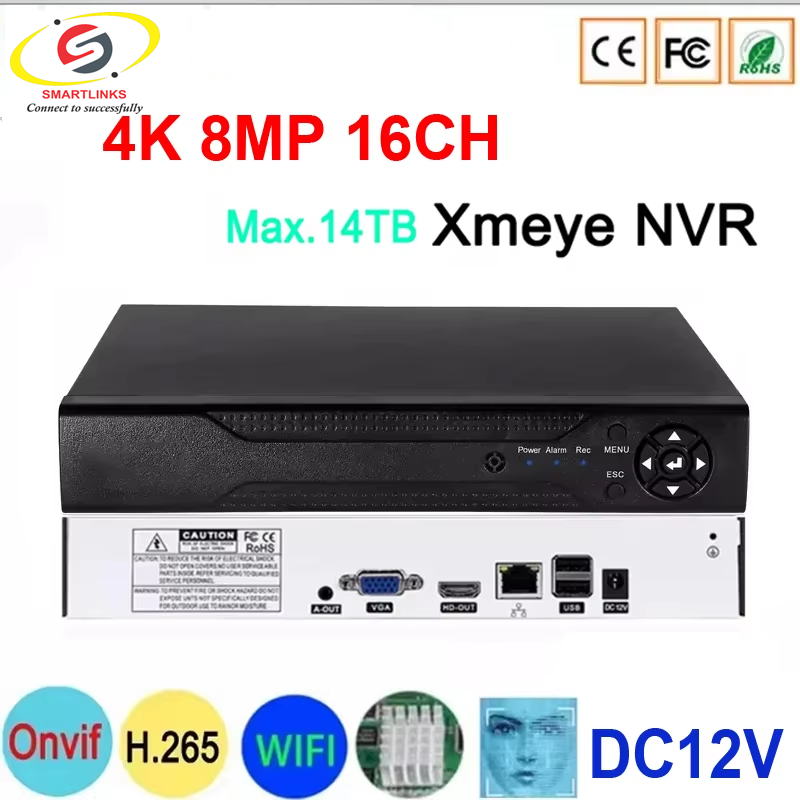

DC12V Auido H.265+ 8MP 4K 16CH 16 Channel Face Detection Onvif CCTV DVR NVR Surveillance Video Recorder Security System

(2 đánh giá)

Mã SP: TSL-16CHX376 1HDD

Giá bán : Vui lòng gọi

Số lượng:

GỌI NGAY

● Model : TSL-16CHX376 1HDD (H.265+)
● Đầu ghi hình 4K camera IP 16 kênh.
● Ngõ vào hình ảnh tùy chọn :
* 16 IP 4K : Xem lại 1 kênh
● Hỗ trợ 01 ổ cứng dung lượng tối đa 6TB
● Ngõ ra : VGA/HMDI
● Audio :1out
● 01 cổng RJ45, 2 cổng USB
● Phần mềm xem camera trên điện thoại : XMEye
● Phần mềm xem camera trên PC, Laptop : VMS
● Kích thước : 255mm x 210mm x 41mm
● Nguồn 12V/2.5A

16*8MP(4K)

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:How to use face detection function?

A:It is work with AI Camera ,and click link for see operation video, link in description.(if the nvr not have the face detection function,please upgrade to newest version)

Q:Is it support other brand IP camera?

A:This nvr have NETIP protocol (XM:Xmeye and ICsee System ),onvif protocol and so on...,so if your IP camera,wifi camera ,PTZ IP camera is Tvpsii brand ,XM brand and other onvif brand ip camera,it work well.

Feature:

Support HDMI output VGA HD output;
Support ONVIF;access third party;
Support web,CMS,center platform management software MYEYE,provide SDK development;
Support multiple cloud technology,network penetration,alarm information pushed to your phone and other functions;
Support multiple network services (support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP searches,Alarm Center,etc.);

	Model	8016NVR
System	Main processor	XM8536E
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Interface	Preview	1/2/4/6/8/9/16
Video	Video input (IP)	*164K（Access bandwidth 60Mbps）**
	Video compression	H.265AI/H.265+(compatible H.265/H.264)
	Display quality	Max:4K
	Playback quality	4K/5M/4M/3M/1080P
	Decode	1ch 4k/2ch 5M/2ch 4M/3ch 3M/5ch 1080P
	VR	support
	human shape / Face	Support(depend on camera)
Audio	Audio compression	G.711A
Audio	Intercom	support
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local payback	1ch 4k/2ch 5M/2ch 4M/3ch 3M/5ch 1080P
	Search mode	Search by Time/Calendar/Event/Channel/Face
	Record storage	HDD,Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner

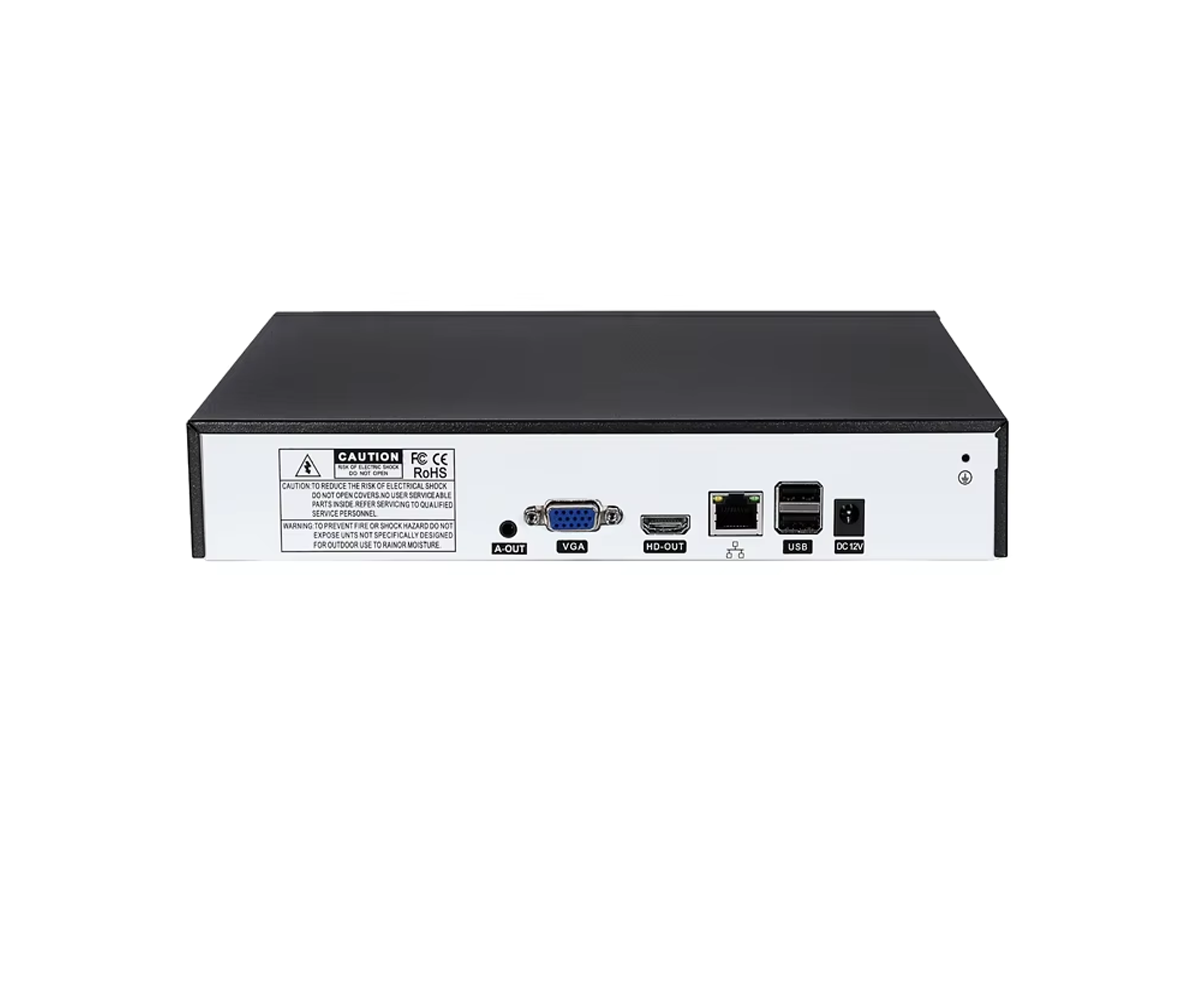

External interface	Video output	1ch VGA,1ch HDMI HD output
	Audio I/O	1/1(3.5mm)
	Alarm I/O	0/0
	Network interface	*1RJ45 10M/100M Adaptive Ethernet port**
	USB interface	*2USB 2.0 ports(one USB extension interface is reserved)**
	HDD	*1 SATA(Up to 14TB for each disk)**
	ESATA	No
	Serial interface	No
Other	ONVIF	Support
	Power supply	12V/2A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃－55℃, Humidity:10%－90%RH , Atm:86kpa－106kp
	Dimension	*255mm215mm45mm*
	Weight	A total of about 1.4kg

Our Surveillance Video Recorder NVR have heat sink,metal material (long life),remote control,3G(4G)function and so on, quality assurance.

● Model : TSL-16CHX376 1HDD (H.265+)
● Đầu ghi hình 4K camera IP 16 kênh.
● Ngõ vào hình ảnh tùy chọn :
* 16 IP 4K : Xem lại 1 kênh
● Hỗ trợ 01 ổ cứng dung lượng tối đa 6TB
● Ngõ ra : VGA/HMDI
● Audio :1out
● 01 cổng RJ45, 2 cổng USB
● Phần mềm xem camera trên điện thoại : XMEye
● Phần mềm xem camera trên PC, Laptop : VMS
● Kích thước : 255mm x 210mm x 41mm
● Nguồn 12V/2.5A
