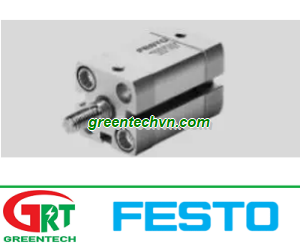

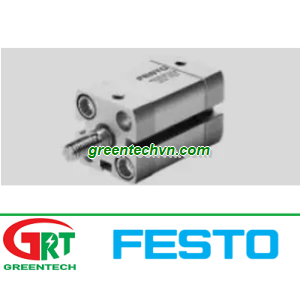

Feature Value
Stroke 10 mm
Piston diameter 32 mm
Piston rod thread M8
Cushioning Elastic cushioning rings/pads at both ends
Mounting position Any
Conforms to standard ISO 21287
Piston rod end Internal thread
Position sensing For proximity sensor
Symbol 00991217
Variants Piston rod at one end
Operating pressure 0.06 MPa ... 1 MPa
Operating pressure 0.6 bar ... 10 bar
Mode of operation Double-acting
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20 °C ... 80 °C
Impact energy in the end positions 0.4 J
Theoretical force at 6 bar, retracting 415 N
Theoretical force at 6 bar, advancing 483 N
Moving mass at 0 mm stroke 60 g
Additional moving mass per 10 mm stroke 9 g
Basic weight with 0 mm stroke 265 g
Additional weight per 10 mm stroke 30 g
Type of mounting Optionally:
With through-hole
With internal thread
With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Flange screws material Steel
Cover material Wrought aluminum alloy, anodized
Seals material TPE-U(PUR)
Piston rod material High-alloy steel
Material of cylinder barrel Wrought aluminum alloy, smooth-anodized
