CHARACTERISTICS
- Type
- electric
- Construction
- through-bore
- Other characteristics
- compact, standard
- Rotational speed
-
Min.: 1 rpm (6 rad.min-1)
Max.: 1,200 rpm (7,540 rad.min-1)
- Current
-
Min.: 0 A
Max.: 30 A
- Voltage
-
Min.: 0 V
Max.: 690 V
DESCRIPTION

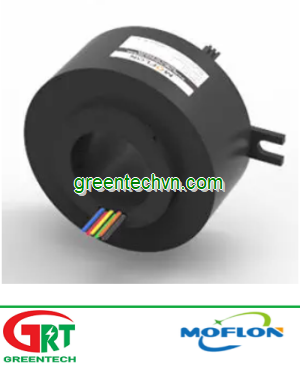

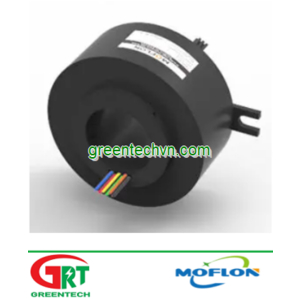

Bore size 70mm, OD 158mm, 2~108 rings Standard compact series slip ring with bore size 158mm (used for<=70mm),OD 158mm. *Attention：if required through bore <70mm，this can be solved by adding a sleeve inside the bore. Working Life - 100 Million Revs Working Temp. - -30℃~80℃ Operating Humidity - 0~85% RH Contact Material - Precious Metal Housing Material - Aluminium Alloy Torque - 0.1N.m;+0.03/6ring Protection grade - IP51
