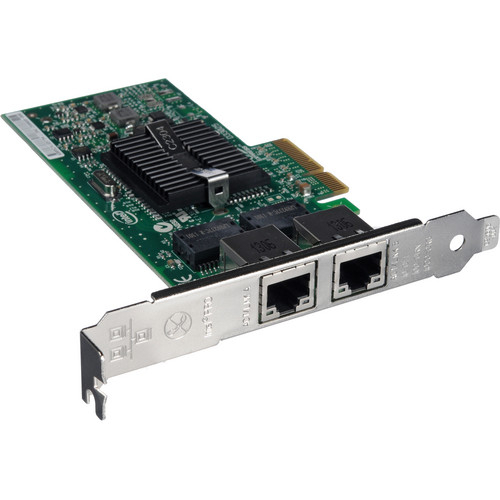

Tên thiết bị:  Intel PRO/1000 PT EXPI9402PT 82571 Dual Port Server Adapter

Model:   Intel EXPI9402PT

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Thời gian đặt hàng: 1 - 2 ngày

Hình ảnh thiết bị như hình chụp

Product Highlights

  • 2 x PCI Express 10/100/1000 Mbps
  • Multi-Gigabit Scalability
  • Increased Uptime
  • Advanced Server Features
  • Built on Intel Lead-Free Technology



Overview:



The PRO/1000 PT Dual Port Server Adapter from Intel represents the fifth generation of Intel network adapters for Gigabit Ethernet and features 10/100/1000 Mbps self-configuration for compatibility with mixed-speed network devices. With the Dual Port Server Adapter you can conserve PCIe server slots while adding multi-port Gigabit Ethernet capability. The dedicated input/output (I/O) bandwidth of PCIe ensures priority performance on each port-without bus sharing-for Gigabit Ethernet connectivity in Category-5 networks. Additionally, the Dual Port Server Adapter is designed to provide high performance in multi-processor systems by efficiently balancing network loads across multiple Central Processing Units when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux.

For easy installation and management, all Intel PRO Network Connections are supported by Intel PRO Intelligent Install and the new Intel PROSet Utility for Microsoft Device Manager. Intel PROSet simplifies adapter installation and gives you point-and-click power to configure and manage all your Intel PRO Network Connections for connectivity you can count on.



Intel 8257 1 GB Gigabit Controller
Enables two Gigabit connections in a single adapter, delivering increased bandwidth for slot-constrained servers and providing high performance, reliability, and low power use in a single, integrated, dual port PCI Express Gigabit Ethernet controller chip
Load Balancing on Multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux
Interrupt Moderation
Delivers increased performance while significantly reducing CPU utilization
Compatible with x4, x8, and x16 Full-Height
Allows dual-port operation in almost any PCI Express server slot, except x1 slots, PCI Express slots and allows each port to operate without interfering with the other
Support for Most Network Operating Systems
Enables widespread deployment
Remote Management Support
Reduces support costs with remote management based on industry-wide standards
Category-5 Unshielded Twisted Pair, 4-Pair Cabling
Uses existing 4-pair cabling and saves re-wiring costs
RoHS Compliant*, Lead-Free** Technology
Compliant with the new European Union directive to reduce the use of hazardous materials
Intel PROSet Utility for Microsoft Device Manager
Provides point-and-click power over individual adapters, advanced adapter features, connection teaming, and virtual local area network configuration
Advanced Cable Diagnostics
Dynamically tests and reports network problems (error rate, cable length) and automatically compensates for cable issues (cross-over cable, wrong pin-out/polarity)



Specifications:Connectors

  2 x RJ-45
Wiring Category-5, unshielded twisted pair (UTP), 4-pair
Network Management
  • Wired for Management (WfM) baseline v2.0 enabled for servers
  • DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable
  • SMBus support
  • Remote Installation Services (RIS)
  • Diagnostics (loopback, testability, PHY register access)
  • Advanced configuration and power interface (ACPI) 1.0 power management
  • Wake on LAN support over PCI Express
  • PXE 2.0 enabled through boot read-only memory (ROM)
Network Systems Software Support
  • Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit)
  • Microsoft Windows 2000
  • Red Hat Linux 2.4 x or later (32- and 64-bit)
  • FreeBSD 4.x or later
  • Novell Netware 5.x, 6.x
  • Sun Solaris x86, OS 8 and later
  • SCO Open Server 5, OpenUNIX 8
Advanced Software Features
  • Adapter fault tolerance (AFT)
  • Switch fault tolerance (SFT)
  • Adaptive load balancing (ALB)
  • Fast EtherChannel*(FEC)
  • Gigabit EtherChannel 5 (GEC)
  • Teaming support: Scales up to 8 connections
  • Multiple teams: Supports 4 separate teams, maximum
  • IEEE 802.3ad (link aggregation control protocol) 5
  • Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
  • PCIe Hot Plug/Active peripheral component interconnect (PCI)
  • IEEE 802.1Q VLANs
  • IEEE 802.3 (z, ab, u, x) flow control support
  • TCP checksum offload — transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP)
  • IEEE 802.1p
  • TCP segmentation/large send offload
  • Interrupt moderation
Data Rate Data rate(s) supported per port: 10, 100, and 1000 Mbps
Bus Type PCI Express 1.0a
Bus Width x4, lane PCI Express, operable in x4, x8, x16 slots
Bus Speed x4, encoded rate 10 Gbps uni-directional; 20 Gbps bi-directional
EEPROM-SPI & Single EEPROM Support Yes
Interrupt Levels INTA, INTB
IEEE Support 802.3 ab
Hardware Certifications FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
Controller-Processor Intel 82571 GB
Power Consumption 4.95 W (3.3 V @ 1.5 A)
Operating Temperature 32 to 131°F (0 to 55°C)
LEDs 4 (1/port, link and speed) solid and blinking
Dimensions 5.10 x 0.85 x 4.73" (12.95 x 2.16 x 12 cm)
Weight Not specified by manufacture
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 8.0 x 5.0 x 5.0"



In the Box:

Intel PRO/1000 PT Dual Port Server Adapter
  • Limited Lifetime Warranty
  • 90-Day, Money-Back Guarantee (U.S. & Canada)
