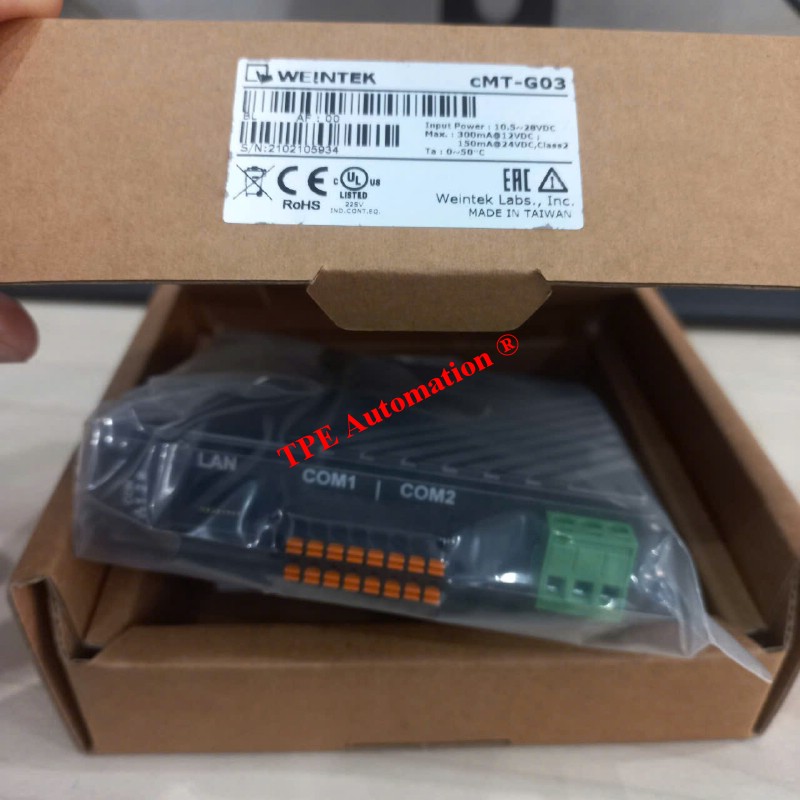

Weintek cMT-G03
Memory
Flash : 256 MB
RAM : 256 MB
Processor : 32-bit RISC 528MHz
I/O Port
Ethernet 10/100 Base-T x 1
COM Port
COM1: RS-232 2W, RS-485 2W/4W
COM2: RS-232 2W, RS-485 2W/4W
RTC: Built-in
Power
Input Power: 10.5~28VDC
Power Isolation: Built-in
Power Consumption: 300mA@12VDC;150mA@24VDC
Voltage Resistance: 500VAC (1 min.)
Isolation Resistance: Exceed 50M at 500VDC
Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Specification
PCB Coating: Yes
Enclosure: Plastic
Dimensions: 27 x 109 x 81 mm
Weight Approx: 0.14 kg
Mount 35 mm: DIN rail mounting
Environment
Protection Structure : IP20
Storage Temperature: -20° ~ 60°C (-4° ~ 140°F)
Operating Temperature: 0° ~ 50°C (32° ~ 122°F)
Relative Humidity: 10% ~ 90% (non-condensing)
Software
EasyBuilder : Pro V6.01.02 or later versions
Weincloud: EasyAccess 2.0 (Optional)
