Thông Số Kỹ Thuật:
|
Product name |

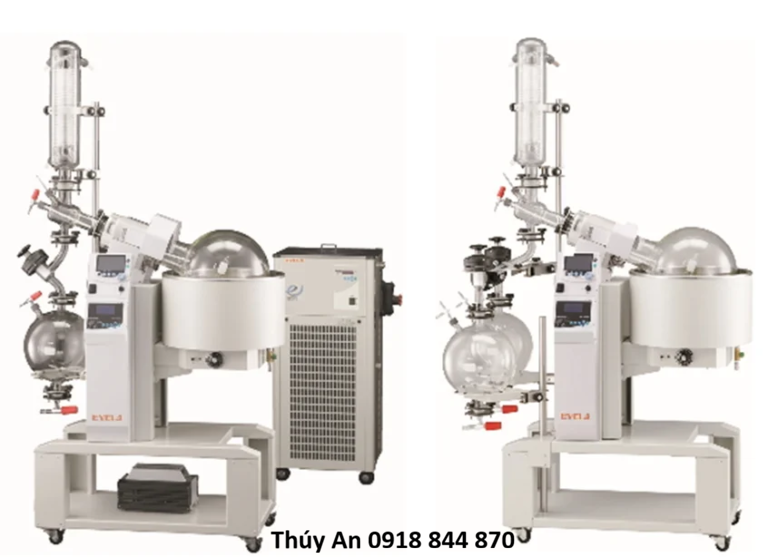

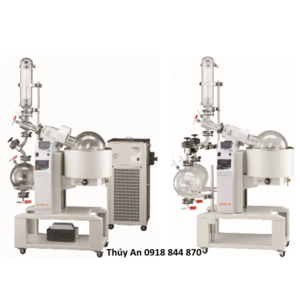

Rotary Evaporator (20L) | ||
| Model | N-4100 | N-4100W | N-4100H |
| Cat. No. | 281208 | 281218 | 281650 |
| Stand | Standard accessory | – | |
| Rotation speed range | 10 to 140rpm Stepless speed control | ||
| Evaporation capacity | Max.4L/h (Water evaporation) | ||
| Ultimate vacuum | 2.6hPa (2Torr) or less | 4.6hPa (3.5Torr) or less | 2.6hPa (2Torr) or less |
| Bath temperature control range | RT＋10 to 180°C（For water/oil） | ||
| Bath temperature accuracy | ±1°C（When using water and rotating the sample flask) ±3°C（When using oil and rotating the sample flask) |
||
| Temperature control | PID control | ||
| Temperature setting / display | Digital setting (Membrane keypad input, minimum setting digit 1°C), LCD display (Bath temperature, vacuum, vapor temperature: optional) | ||
| Rotation setting / display | Speed control method, LCD | ||
| Vacuum control function | Fixed value control (1 to 760 mmHg/1 to 1013hPa), Program control (Pre-set internally for each representative solvent), Auto control (When vapor sensor is used: option), Step control | ||
| Safety features | Rotating motor overcurrent protection, Liquid expansion type independent overload protector, Earth leakage breaker, Jack overload protection, Heat-sensitive dry-heating protector, One-touch clamp section safety cover | ||
| Bath jack mechanism | Electric automatic jack (Automatic descent function during power failure: factory option N-4100J) | ||
| Heater | For temperature control 3.5kW | ||
| Motor | Induction motor output 90W (Inverter control) | ||
| Condenser | Vertical triple spiral, Cooling surface 0.5m2 (Suction/cooling water threaded connection, S65 ball taper joint) | ||
| Sample flask | 20L round shaped flask (Flange diameter 100mm) | ||
| Receiving flask | 10L round shaped flask x 1pc with drain valve | 10L round shaped flask x 2pcs with drain valve (3-way valve for atmosphere, vacuum, drain) | 10L round shaped flask x 1pc with drain valve |
| Vacuum seal | Teflon® seal | ||
| Bath dimensions / capacity / material | 430 ID x 240H (mm) / 34L / Stainless steel | ||
| Connection port diameter | Condenser (Cooling water nozzle 16mm OD / Cooling water nozzle 16mm OD) Vacuum control valve (Connection nozzle 13 mm OD / Release valve nozzle 10mm OD) |
||
| Ambient temperature range | 5 to 35°C | ||
| Outer dimensions (mm) | 1060W x 570D x 1910H | 1170W x 700D x 1910H | 1060W x 570D x 1570H |
| Weight | Approx. 141kg | Approx. 152kg | Approx. 118kg |
| Power input | 17-18A, 3.9-4.3kVA, 230-240VAC, single phase, 50/60Hz | 19-20A, 3.8-4.4kVA, 200- 220VAC, single phase, 50/60Hz | |
