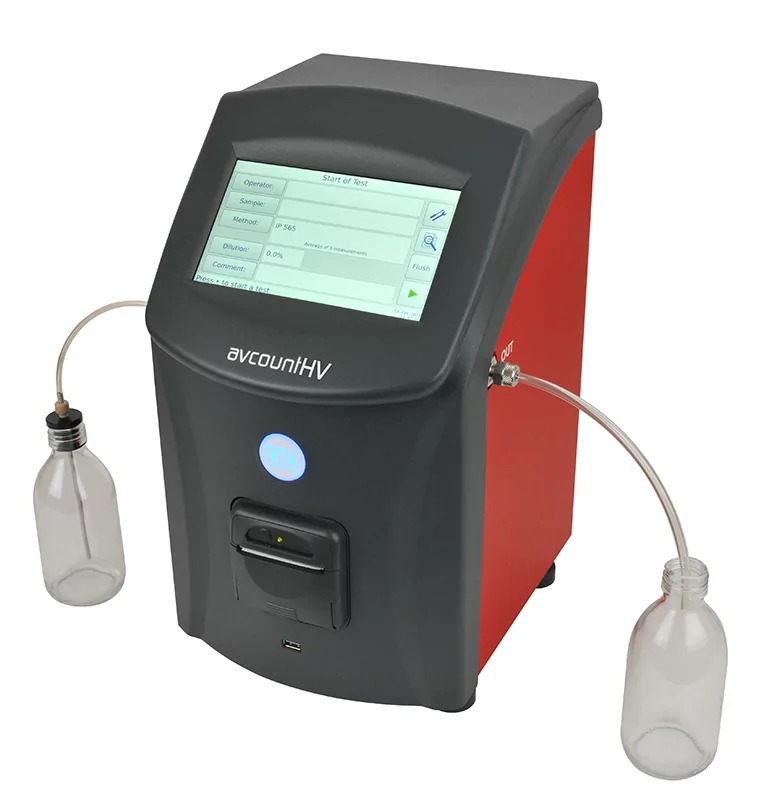

AvCountHV Particle Counter - SA1110-0
Hãng : Stanhope Seta - Anh
Model : SA1110-0U
The AvCountHV is a compact bench-top automatic particle counter, used to measure the size and distribution of particles and water droplets in lubricants and hydraulic oils with viscosities up to 1500 mm2/s at 20 °C.
Featuring a simple user interface with touch screen display, the fully-automated test means extensive operator training is not required before using the instrument. The simplicity of test set up and automation, gives operators the time to work on something else, helping to reduce labour costs.
Details
| Particle size range | 4µm(c) to 70µm(c) (ISO 11171), 1µm to 100µm (ISO 4402), 1 to 200µm (ISO 21501-3 available on request) |
|---|---|
| Number of measuring channels | 16 size channels displayed on instrument |
| Counts per measurement (mx) | 30,000 per ml |
| Sample viscosity (max) | 1500 mm2/s at 20 °C |
| Sample temperature range | Ambient 0 to 70 °C |
| Results | 500,000 result memory. Print via internal printer, export to LIMS, USB or QR code |
| Sample flow rate | 30 ml/min ±5 ml/min |
| Total sample volume | 150 ml (includes 10 flush cycles and 5 measures) |
| Power | 100/240 V, 50/60 Hz, Auto-sensing universal power supply |
| Size (HxWxD) | 37 cm x 23 cm x 27 cm |
| Weight | 6 kg |
