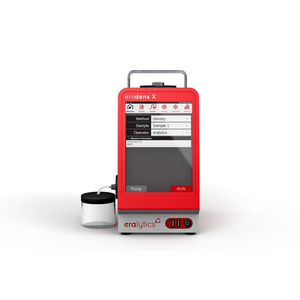

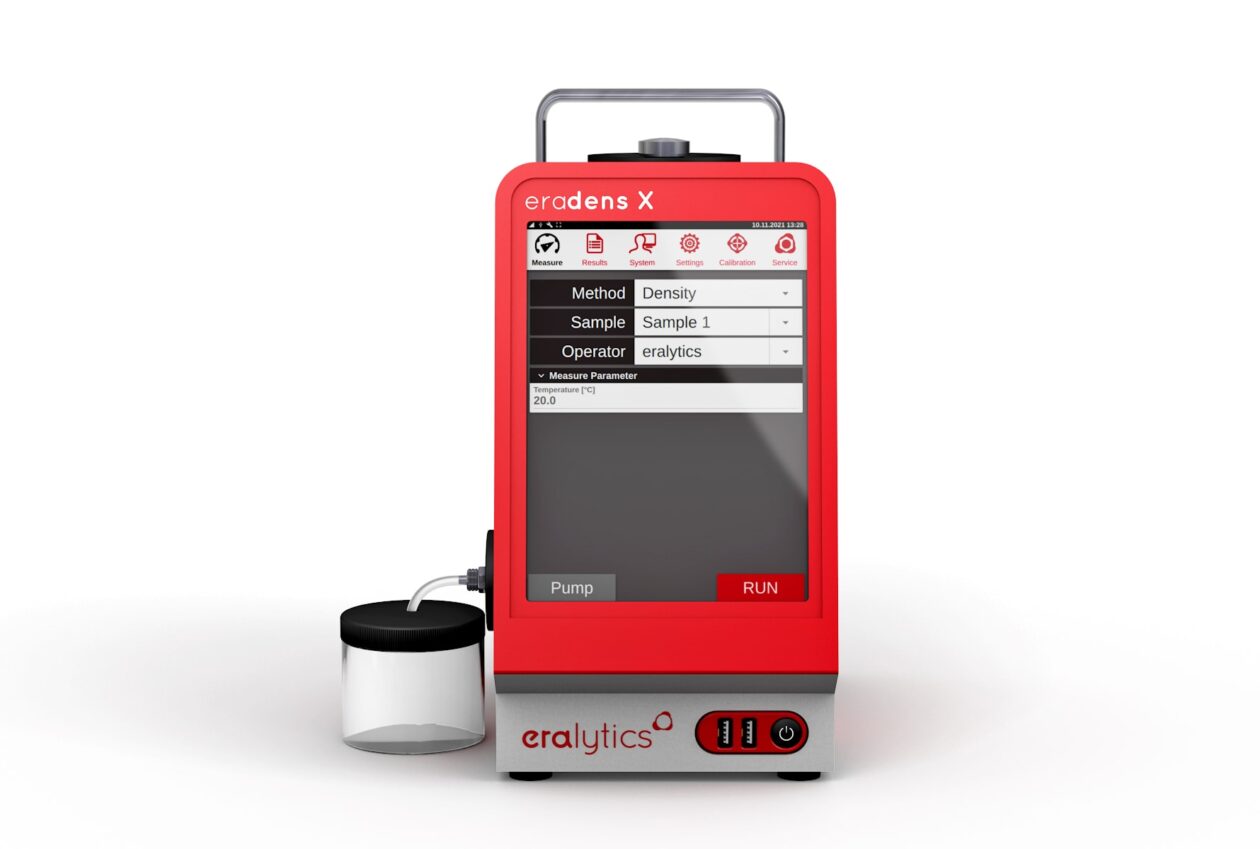

Eradens X is the world’s smallest and lightest high-precision density meter measuring in full compliance with ASTM D4052 and ISO 12185. Its revolutionary vertically aligned x-oscillating metal U-tube design is extremely reliable and insensitive to toughest ambient conditions, making the density meter eradens X the perfect solution for density testing in stationary as well as in mobile laboratories.
Technical Specifications
- Standards
- ASTM D4052, D5002, D5931, ISO 12185
- Density Range
- 0 – 3 g/cm3
- Temperature Range
- 0 °C to 100 °C (32 °F to 212 °F)
- Density Repeatability (SD)
- 0.000005 g/cm3 (according to ISO 5725)
- Density Resolution
- 0.00001 g/cm3
- Temperature Accuracy
- 0.02 °C (0.04 °F)
- Pressure Range
- 0 -10 bar (145 psi) absolute pressure
- Measurement Time
- 15 sec (after temperature equilibration)
- Sample Volume
- 2 mL
- Oscillating Tube
- Hastelloy C276 (Patent: US 11,630,044, AT522941 B1)
- Bubble Detection
- FillingProof®- automated bubble detection and bubble quantification (Patent: US 11,493,417 B2; AT522940 B1)
- Viscosity Correction
- yes – full range correction (Patent: AT523471 A1)
- Tables & Functions
- API, specific gravity, sugar, alcohol, etc, and freely programmable tables
- Special Features
- Integrated fully-automated drying pump, built-in ambient pressure sensor
- Result Database
- Over 100 000 detailed test reports stored
- Remote Service
- Remote service capability via Ethernet
- Interfaces
- Built-in PC with Ethernet, 4 x front and rear USB and RS232 interfaces; Wi-Fi via USB dongle
Direct LIMS connectivity via LAN, output to printer or PC and export as CSV or PDF
Optional input by keyboard, mouse, and barcode reader - Display
- Industry-proven 8.4“ multilingual color touchscreen
- Power Requirements
- 85 – 264 V AC 47- 63 Hz, max 150 W
- Operating Conditions
- 5 °C – 45 °C up to 90 % rel. humidity (non-condensing)
- Dimensions & Weight
- (W x D x H) = 18.0 x 28.6 x 29.3 cm (7.1 x 11.2 x 11.5 in) / 7 kg (15 lb)
