Applications

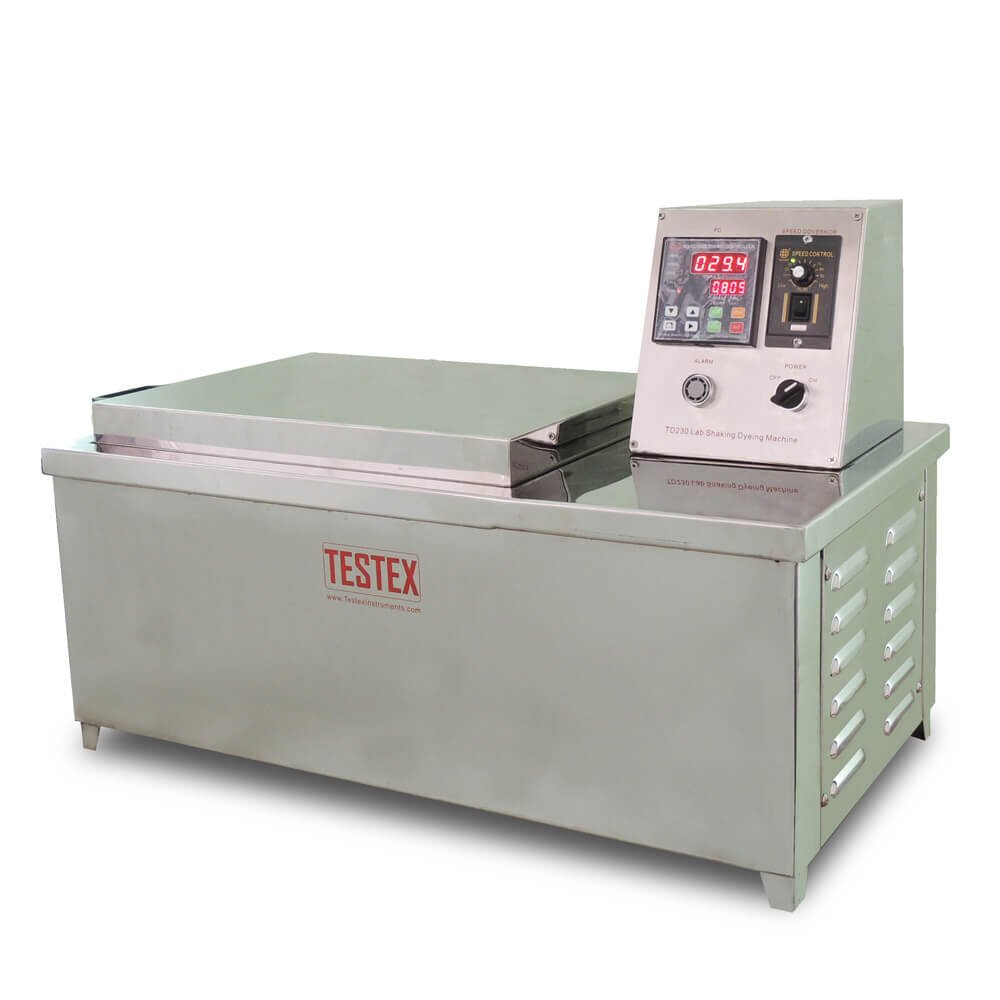

Osillation Dyeing Machine is used for dyeing and washing sample test at room temperature for textile, printing industry, for the dyeing factory and dyes, additives, chemical plant sample.

This machine is a professional equipment for sample dyeing and washing test at room temperature in weak alkaline environment or conventional conditions, for fabrics, fiber or yarn. Ultra quiet design greatly enhances levelness of specimen dyeing.

Specifications

  • Number of Beakers   24
  • Beaker Capacity         250ml
  • Shaking distance       42mm
  • Speed                           0 ~ 140 cpm
  • Max Temperature     99 oC

Features

  • Totally made of high quality mirror stainless steel could use in any poor environment without any problem
  • Specially design high speed, low noise and enough dyeing liquid moving
  • Good micro-processor supply 9 patterns and 10 steps, same as factory dyeing
  • High quality spring hold dyeing beakers exactly without inclination dyeing beakers
  • High quality motor could adjust speed according to customer’s requirement.
  • Easy adding auxiliary during dyeing process

Power

220 V 50 Hz 4 Kw

Weight

60 Kg

Dimensions

1060 x 550 x 720 mm (L x W x H)
