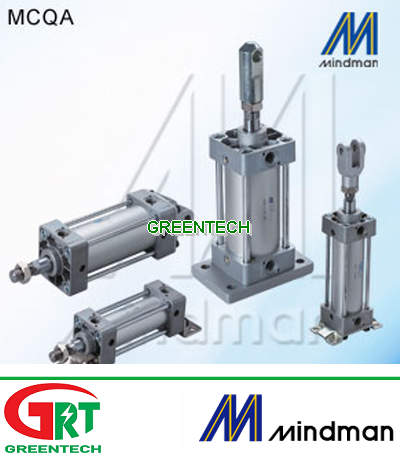

MCQA-11-100-200-FAC | Mindman MCQA-11-100-200-FAC | Xilanh khí nén

CHI TIẾT

Tube I.D. φ40, 50, 63, 80, 100, 125, 150, 200 (mm). Designs of oil-filled alloy. special housing and bushing provide the needed self-lubrication of piston rod.

Non-lubricationSpecial housing and bushing enables self lubrication of piston rod.
High quality-long service lifeHard anodised aluminium cylinder tubes offer a high resistance to corrosion and low internal friction.
Non-standard typeCustom cylinders are available as are non standard strokes, rod extensions and special rod threads.
Cylinder mountingsAvailable with comprehensive internationally recognised range of fixed and flexible mountings.

Tube I.D. (mm)	40, 50, 63, 80, 100, 125, 150, 200
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5~＋60℃ (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RCA
Sensor switch holder	HV2, HV4, PM14, PM16, HA5

MFC Floating joint

Cyl. dia. φ 6~160（mm）,The minor error connects between two shafts can be removed. The machining accuracy can be neglected.

PHS Female rod ends

Wide range available. Grease nipple as standard.

RCA Sensor switch

RCA (Reed switch),RDA (Without), RNA (NPN), RPA (PNP), Assembling style: MCQA、MCQV、MCQV2、MCQV2L、MCBQV2、MCQN、MCMA、MCMB、 MCKMB、MCMBL、MCMI、MCKMI、MCCG、MCCN、MGT*、MCKA、MCKG、MSB*。

THÔNG SỐ KỸ THUẬT

SẢN PHẨM TƯƠNG ĐƯƠNG

-350-N, MCMA-11-20-375-N, MCMA-11-20-400-N, MCMA-11-20-500-N
MCMA-11-25-10-N, MCMA-11-25-15-N , MCMA-11-25-20-N, MCMA-11-25-25-N, MCMA-11-25-30-N, MCMA-11-25-35-N , MCMA-11-25-40-N, MCMA-11-25-45-N, MCMA-11-25-50-N, MCMA-11-25-60-N，MCMA-11-25-70-N, MCMA-11-25-75-N, MCMA-11-25-80-N, MCMA-11-25-100-N, MCMA-11-25-125-N , MCMA-11-25-140-N, MCMA-11-25-150-N, MCMA-11-25-175-N, MCMA-11-25-180-N, MCMA-11-25-200-N, MCMA-11-25-225-N, MCMA-11-25-250-N, MCMA-11-25-300-N, MCMA-11-25-350-N, MCMA-11-25-375-N, MCMA-11-25-400-N, MCMA-11-25-500-N
MCMA-11-32-10-N, MCMA-11-32-15-N , MCMA-11-32-20-N, MCMA-11-32-25-N, MCMA-11-32-30-N, MCMA-11-32-35-N , MCMA-11-32-40-N, MCMA-11-32-45-N, MCMA-11-32-50-N, MCMA-11-32-60-N，MCMA-11-32-70-N, MCMA-11-32-75-N, MCMA-11-32-80-N, MCMA-11-32-100-N, MCMA-11-32-125-N , MCMA-11-32-140-N, MCMA-11-32-150-N, MCMA-11-32-175-N, MCMA-11-32-180-N, MCMA-11-32-200-N, MCMA-11-32-225-N, MCMA-11-32-250-N, MCMA-11-32-300-N, MCMA-11-32-350-N, MCMA-11-32-375-N, MCMA-11-32-400-N, MCMA-11-32-500-N
MCMA-11-40-10-N, MCMA-11-40-15-N , MCMA-11-40-20-N, MCMA-11-40-25-N, MCMA-11-40-30-N, MCMA-11-40-35-N , MCMA-11-40-40-N, MCMA-11-40-45-N, MCMA-11-40-50-N, MCMA-11-40-60-N，MCMA-11-40-70-N, MCMA-11-40-75-N, MCMA-11-40-80-N, MCMA-11-40-100-N, MCMA-11-40-125-N , MCMA-11-40-140-N, MCMA-11-40-150-N, MCMA-11-40-175-N, MCMA-11-40-180-N, MCMA-11-40-200-N, MCMA-11-40-225-N, MCMA-11-40-250-N, MCMA-11-40-300-N, MCMA-11-40-350-N, MCMA-11-40-375-N, MCMA-11-40-400-N, MCMA-11-40-500-N
MCMA-11-25-10-A-N, MCMA-11-25-15-A-N , MCMA-11-25-20-A-N, MCMA-11-25-25-A-N, MCMA-11-25-30-A-N, MCMA-11-25-35-A-N , MCMA-11-25-40-A-N, MCMA-11-25-45-A-N, MCMA-11-25-50-A-N, MCMA-11-25-60-A-N，MCMA-11-25-70-A-N, MCMA-11-25-75-A-N, MCMA-11-25-80-A-N, MCMA-11-25-100-A-N, MCMA-11-25-125-A-N , MCMA-11-25-140-A-N, MCMA-11-25-150-A-N, MCMA-11-25-175-A-N, MCMA-11-25-180-A-N, MCMA-11-25-200-A-N, MCMA-11-25-225-A-N, MCMA-11-25-250-A-N, MCMA-11-25-300-A-N, MCMA-11-25-350-A-N, MCMA-11-25-375-A-N, MCMA-11-25-400-A-N, MCMA-11-25-500-A-N
MCMA-11-32-10-A-N, MCMA-11-32-15-A-N , MCMA-11-32-20-A-N, MCMA-11-32-25-A-N, MCMA-11-32-30-A-N, MCMA-11-32-35-A-N , MCMA-11-32-40-A-N, MCMA-11-32-45-A-N, MCMA-11-32-50-A-N, MCMA-11-32-60-A-N，MCMA-11-32-70-A-N, MCMA-11-32-75-A-N, MCMA-11-32-80-A-N, MCMA-11-32-100-A-N, MCMA-11-32-125-A-N , MCMA-11-32-140-A-N, MCMA-11-32-150-A-N, MCMA-11-32-175-A-N, MCMA-11-32-180-A-N, MCMA-11-32-200-A-N, MCMA-11-32-225-A-N, MCMA-11-32-250-A-N, MCMA-11-32-300-A-N, MCMA-11-32-350-A-N, MCMA-11-32-375-A-N, MCMA-11-32-400-A-N, MCMA-11-32-500-A-N
MCMA-11-40-10-A-N, MCMA-11-40-15-A-N , MCMA-11-40-20-A-N, MCMA-11-40-25-A-N, MCMA-11-40-30-A-N, MCMA-11-40-35-A-N , MCMA-11-40-40-A-N, MCMA-11-40-45-A-N, MCMA-11-40-50-A-N, MCMA-11-40-60-A-N，MCMA-11-40-70-A-N, MCMA-11-40-75-A-N, MCMA-11-40-80-A-N, MCMA-11-40-100-A-N, MCMA-11-40-125-A-N , MCMA-11-40-140-A-N, MCMA-11-40-150-A-N, MCMA-11-40-175-A-N, MCMA-11-40-180-A-N, MCMA-11-40-200-A-N, MCMA-11-40-225-A-N, MCMA-11-40-250-A-N, MCMA-11-40-300-A-N, MCMA-11-40-350-A-N, MCMA-11-40-375-A-N, MCMA-11-40-400-A-N, MCMA-11-40-500-A-N
MCMA-11-25-10-A, MCMA-11-25-15-A , MCMA-11-25-20-A, MCMA-11-25-25-A, MCMA-11-25-30-A, MCMA-11-25-35-A , MCMA-11-25-40-A, MCMA-11-25-45-A, MCMA-11-25-50-A, MCMA-11-25-60-A，MCMA-11-25-70-A, MCMA-11-25-75-A, MCMA-11-25-80-A, MCMA-11-25-100-A, MCMA-11-25-125-A , MCMA-11-25-140-A, MCMA-11-25-150-A, MCMA-11-25-175-A, MCMA-11-25-180-A, MCMA-11-25-200-A, MCMA-11-25-225-A, MCMA-11-25-250-A, MCMA-11-25-300-A, MCMA-11-25-350-A, MCMA-11-25-375-A, MCMA-11-25-400-A, MCMA-11-25-500-A
MCMA-11-32-10-A, MCMA-11-32-15-A , MCMA-11-32-20-A, MCMA-11-32-25-A, MCMA-11-32-30-A, MCMA-11-32-35-A , MCMA-11-32-40-A, MCMA-11-32-45-A, MCMA-11-32-50-A, MCMA-11-32-60-A，MCMA-11-32-70-A, MCMA-11-32-75-A, MCMA-11-32-80-A, MCMA-11-32-100-A, MCMA-11-32-125-A , MCMA-11-32-140-A, MCMA-11-32-150-A, MCMA-11-32-175-A, MCMA-11-32-180-A, MCMA-11-32-200-A, MCMA-11-32-225-A, MCMA-11-32-250-A, MCMA-11-32-300-A, MCMA-11-32-350-A, MCMA-11-32-375-A, MCMA-11-32-400-A, MCMA-11-32-500-A
MCMA-11-40-10-A, MCMA-11-40-15-A , MCMA-11-40-20-A, MCMA-11-40-25-A, MCMA-11-40-30-A, MCMA-11-40-35-A , MCMA-11-40-40-A, MCMA-11-40-45-A, MCMA-11-40-50-A, MCMA-11-40-60-A，MCMA-11-40-70-A, MCMA-11-40-75-A, MCMA-11-40-80-A, MCMA-11-40-100-A, MCMA-11-40-125-A , MCMA-11-40-140-A, MCMA-11-40-150-A, MCMA-11-40-175-A, MCMA-11-40-180-A, MCMA-11-40-200-A, MCMA-11-40-225-A, MCMA-11-40-250-A, MCMA-11-40-300-A, MCMA-11-40-350-A, MCMA-11-40-375-A, MCMA-11-40-400-A, MCMA-11-40-500-A
