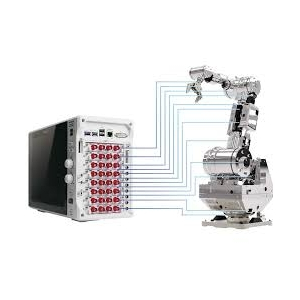

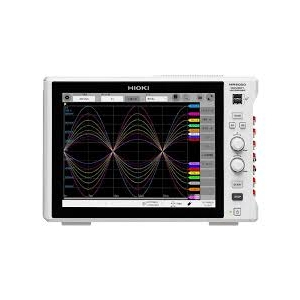

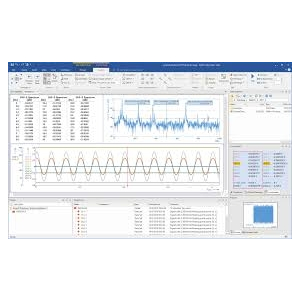

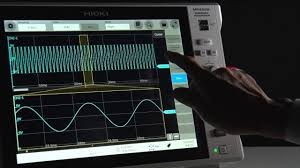

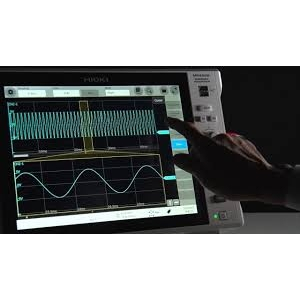

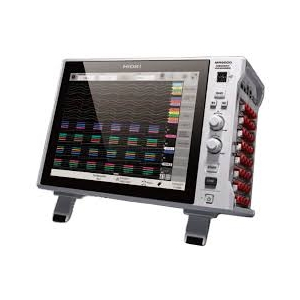

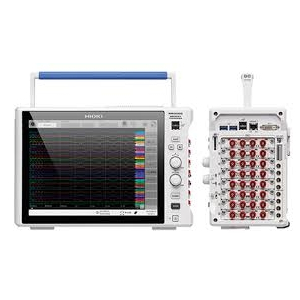

Options
Factory-installed option A
*Must specify when ordering
*Power can be supplied to up to 8 current sensors, including the current sensors connected to the CURRENT UNIT 8971.
PROBE POWER UNIT Z5021
Specified upon order of the MR6000, power max. 4 × CT6710 series, or max. 8 × other probes
Factory-installed option B
*Must specify when ordering
SSD UNIT U8332
Specified upon order, built-in type, 256 GB
Factory-installed option C
*Must specify when ordering
HD UNIT U8333
Specified upon order, built-in type, 320 GB
Storage media
*Precaution
*Use only the storage media sold by HIOKI. Compatibility and performance are not guaranteed for storage media made by other manufacturers. You may be unable to read from or save data to such media.
SD MEMORY CARD 2GB Z4001
2 GB capacity
SD MEMORY CARD Z4003
8 GB capacity
USB DRIVE Z4006
16 GB, Long-life, High-reliability SLC Flash Memory
Input modules
*Input cords not included. Please purchase separately.
*When using 9709 with CURRENT UNIT 8971, a total of 7 current probes can be used.
HIGH SPEED ANALOG UNIT U8976
・ 2 ch ・ DC to 30 MHz bandwidth
Learn more
4CH ANALOG UNIT U8975
・ 4 ch ・ DC to 2 MHz bandwidth
Learn more
HIGH VOLTAGE UNIT U8974
・ 2 ch, High-voltage input ・ Max. 1000 VDC, 700 VAC rms ・ DC to 100 kHz bandwidth
Learn more
ANALOG UNIT 8966
• 2 ch, instantly waveforms • DC to 5 MHz bandwidth
Learn more
HIGH RESOLUTION UNIT 8968
• 2 ch, high resolution measurement • DC to 100 kHz bandwidth
Learn more
DC/RMS UNIT 8972
• 2 ch, instantly waveform/RMS • DC to 400 kHz bandwidth • RMS: DC and 30 to 100 kHz
Learn more
CURRENT UNIT 8971
• 2 ch, measuring current • DC to 400 kHz bandwidth • Direct connectable with current sensors
Learn more
DIGITAL VOLTMETER UNIT MR8990
・ For minute voltage measurement ・ Max. 0.1 μV resolution ・ 500 times/s sampling
Learn more
TEMP UNIT 8967
• 2 ch, Temperature • Thermocouple input
Learn more
STRAIN UNIT U8969
• 2 ch, acceleration, load, pressure or strain • Strain gauge converter amp
Learn more
FREQ UNIT 8970
• 2 ch, Rotation, Frequency • DC to 100 kHz
Learn more
LOGIC UNIT 8973
• 16 ch, logic signal • up to four logic probes
Learn more
3CH CURRENT UNIT U8977
・ 3 ch, current measurement ・ DC to 2 MHz bandwidth
Learn more
4CH ANALOG UNIT U8978
・ 4 ch instantaneous waveforms ・ DC to 2 MHz bandwidth
Learn more
CHARGE UNIT U8979
・ Measure acceleration waveforms across 2 channels ・ Charge output type acceleration pickup ・ Preamplifier built-in acceleration pickup
Learn more
External sampling measurement
CONNECTION CABLE L9795-01
Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to alligator clip, 1.5 m (4.92 ft) length
CONNECTION CABLE L9795-02
Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to BNC terminal, 1.5 m (4.92 ft) length
INPUT CORD (A)
*Voltage is limited to the specifications of the input modules in use.
CONNECTION CORD L9790
• Flexible φ 4.1 mm (0.16 in) thin dia. • Cable allowing for up to 600 V input • 1.8 m (5.91 ft) length
ALLIGATOR CLIP L9790-01
Red/black set attaches to the ends of the Connection Cord L9790
GRABBER CLIP 9790-02
Red/black set attaches to the ends of the Connection Cord L9790
CONTACT PIN 9790-03
Red/black set attaches to the ends of the Connection Cord L9790
INPUT CORD (B)
*Voltage is limited to the specifications of the input modules in use.
CONNECTION CORD L9198
•φ 5.0 mm (0.20 in) dia. •Cable allows for up to 300 V input •1.7 m (5.58 ft) length •Small alligator clip
CONNECTION CORD L9197
•φ 5.0 mm (0.20 in) dia •Cable allows for up to 600 V input •1.8 m (5.91 ft) length •Includes detachable large alligator clips
GRABBER CLIP 9243
Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V
INPUT CORD (C)
*Voltage is limited to the specifications of the input modules in use.
10:1PROBE 9665
・1 kV rms Max. (500 kHz or less) ・Max. rated voltage to earth depends on input unit.
Learn more
100:1PROBE 9666
・5 kV peak Max. (1 MHz or less) ・Max. rated voltage to earth depends on input unit.
Learn more
INPUT CORD (D)
*Voltage to ground is within this product's specifications. *Separate power source is also required.
DIFFERENTIAL PROBE P9000
• Waveform only for exclusive use with Memory HiCorders (P9000-01) or waveform/RMS value switchable (P9000-02) • For use with input of up to 1 kV AC/DC • Requires separate power supply
Learn more
AC ADAPTER Z1008
100 to 240V AC
Custom cable For P9000. Inquire with your local Hioki distributor.
(1) Bus powered USB cable
(2) USB(A)- Micro B cable
(3) 3-prong cable
INPUT CORD (E)
*Voltage to ground is within this product's specifications. *Separate power source is also required.
DIFFERENTIAL PROBE 9322
• For up to 2 kV DC or 1 kV AC • Use with AC Adapter 9418-15 • Frequency band width up to 10MHz
Learn more
AC ADAPTER 9418-15
100 to 240V AC
INPUT CORD (F)
*Voltage input via banana terminals limited by the voltage specifications of the respective input unit.
CONNECTION CABLE SET L4940
Banana plug - banana plug, 1.5 m (4.92 ft) length, red/black each 1
EXTENSION CABLE SET L4931
Expands the length of the cable with banana plug, 1.5 m (4.92 ft) length
ALLIGATOR CLIP SET L4935
Attaches to the tip of the banana plug cable, CAT IV 600V, CAT III 1000V
BUS BAR CLIP SET L4936
Attaches to the tip of the banana plug cable, CAT III 600V
MAGNETIC ADAPTER SET L4937
Attaches to the tip of the banana plug cable, CAT III 1000V
GRABBER CLIP 9243
Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V
INPUT CORD (G)
*For the MR8990 *Voltage is limited to the specifications of the input modules in use.
TEST LEAD L2200
70 cm (2.30ft) length, detachable large alligator clips or needle tips are bundled, CAT IV 600V, CAT III 1000V
Non-contact voltage measuring
NON-CONTACT AC VOLTAGE PROBE SP3000
• Supports φ1mm to 2.5mm covered wires • 10Hz to 100kHz frequency bandwidth • 5Vrms 14Vp-p rated measurement voltage
Learn more
Other options for input
CONNECTION CORD L9217
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
CONVERSION ADAPTER 9199
Receiving side banana, output BNC terminal
Temperature sensor
THERMOCOUPLE
*For reference only. Please purchase locally.
Logic signal measurement
LOGIC PROBE 9327
• 4 channels for contact voltage signals • High-speed 100ns response
Learn more
LOGIC PROBE MR9321-01
• 4 isolated channels • ON/OFF detection of AC/DC voltage • Large terminal type
Learn more
LOGIC PROBE 9320-01
• 4 channels for contact voltage signals • 500ns response • Miniature terminal type
Learn more
Up to 200 A (High precision)
*A separate power supply (CT955x) is required in order to use a high-precision current sensor.
*Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x.
*The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with a PL23 (10-pin) terminal.
AC/DC CURRENT SENSOR CT6862-05
• DC to 1MHz (Phase: up to 300kHz) • Rated 50A AC/DC • φ 24 mm (0.94 in) core dia.
Learn more
AC/DC CURRENT SENSOR CT6863-05
• DC to 500kHz (Phase: up to 300kHz) • Rated 200A AC/DC • φ 24 mm (0.94 in) core dia.
Learn more
AC/DC CURRENT PROBE CT6841-05
• DC to 1MHz (Phase: up to 300kHz) • Rated 20A AC/DC • φ 20 mm (0.79 in) core dia.
Learn more
AC/DC CURRENT PROBE CT6843-05
• DC to 500kHz (Phase: up to 300kHz) • Rated 200A AC/DC • φ 20 mm (0.79 in) core dia.
Learn more
CLAMP ON SENSOR 9272-05
• 1Hz to 100kHz (Phase: 5Hz to 50kHz) • Rated 20A/200A AC/DC • φ 46 mm (1.81 in) core dia.
Learn more
Up to 1000 A (High precision)
*A separate power supply (CT955x) is required in order to use a high-precision current sensor.
*Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x.
*The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with a PL23 (10-pin) terminal.
AC/DC CURRENT SENSOR 9709-05
• DC to 100kHz (Phase: up to 100kHz) • Rated 500A AC/DC • φ 36 mm (1.42 in) core dia.
Learn more
AC/DC CURRENT PROBE CT6844-05
• DC to 200kHz (Phase: up to 200kHz) • Rated 500A AC/DC • φ 20 mm (0.79 in) core dia.
Learn more
AC/DC CURRENT PROBE CT6845-05
• DC to 100kHz (Phase: up to 100kHz) • Rated 500A AC/DC • φ 50 mm (1.97 in) core dia.
Learn more
AC/DC CURRENT PROBE CT6846-05
• DC to 20kHz (Phase: up to 20kHz) • Rated 1000A AC/DC • φ 50 mm (1.79 in) core dia.
Learn more
AC/DC CURRENT SENSOR CT6865-05
• DC to 20kHz (Phase: up to 1kHz) • Rated 1000A AC/DC • φ 36 mm (1.42 in) core dia.
Learn more
AC/DC CURRENT SENSOR CT6875
• DC to 2MHz (Phase: up to 1MHz) • Rated 500A AC/DC • φ 36 mm (1.42 in) core dia.
Learn more
AC/DC CURRENT SENSOR CT6876
• DC to 1.5MHz (Phase: up to 1MHz) • Rated 1000A AC/DC • φ 36 mm (1.42 in) core dia.
Learn more
PL23 (10-pin) - ME15W (12-pin) conversion
CONVERSION CABLE CT9900
Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal
POWER SUPPLY for Current Sensors
*A separate power supply (CT955x) is required in order to use a high-precision current sensor.
*Only sensors with ME15W (12-pin) terminals (-05 type) can be connected to the CT955x
*The separately available CONVERSION CABLE CT9900 is required in order to use a sensor with a PL23 (10-pin) terminal.
SENSOR UNIT CT9555
• Power supply for current sensors when used alone • 1ch, with waveform output
Learn more
SENSOR UNIT CT9556
• Power supply for current sensors when used alone • 1ch, with waveform / RMS output
Learn more
SENSOR UNIT CT9557
• Power supply for current sensors when used alone • 4ch, with waveform / total waveform / total RMS output
Learn more
CONNECTION CORD L9217
Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length
Directly connectable with the Current Sensor
*Up to 4 CURRENT UNITS 8971 can be connected to the MEMORY HiCORDER main unit, and up to 8 current sensors can be used, including those connected to the PROBE POWER UNIT Z5021.
*The separately available CONVERSION CABLE CT9901 is required in order to use a high-precision current sensor equipped with a ME15W (12-pin) terminal (-05 type) with the CURRENT UNIT 8971.
*While the CT955x is not required in order to use a sensor equipped with a PL23 (10-pin) terminal with the 8971, the CONVERSION CABLE 9318 (which comes with the 8971) is required for that setup.
CURRENT UNIT 8971
• 2 ch, measuring current • DC to 400 kHz bandwidth • Direct connectable with current sensors
Learn more
CONVERSION CABLE 9318
To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length
CONVERSION CABLE CT9901
ME15W (12 pin) to PL23 (10 pin) connector
Precautions for connecting high-precision current sensors
- High-precision current sensor (ME15W) + CT9901 +
9318 → CURRENT UNIT 8971
- High-precision current sensor (ME15W) + CT955x + BNC cable → except CURRENT UNIT 8971
- High-precision current sensor (PL23) + 9318 → CURRENT UNIT 8971
- High-precision current sensor (PL23) + CT9900 + CT955x + BNC cable → except CURRENT UNIT 8971
*The 9318 comes with the CURRENT UNIT 8971.
10 mA class to 500 A (High speed)
CLAMP ON PROBE 3273-50
• DC to 50MHz (−3dB) • 30 Arms maximum • φ 5 mm (0.20 in) Core dia.
Learn more
CLAMP ON PROBE 3274
• DC to 10MHz (−3dB) • 150 Arms maximum • φ 20 mm (0.79 in) Core dia.
Learn more
CLAMP ON PROBE 3275
• DC to 2MHz (−3dB) • 500 Arms maximum • φ 20 mm (0.79 in) Core dia.
Learn more
CLAMP ON PROBE 3276
• DC to 100 MHz (−3dB) • 30 Arms maximum • φ 5 mm (0.20 in) Core dia.
Learn more
Power supply
* Necessary for use the 3270 seies current probes
POWER SUPPLY 3272
• Power 1 × CT6700, 3270 series
Learn more
POWER SUPPLY 3269
• Power 2 × CT6710 series or 4 × CT6700, 3270 series • 100 to 240 VAC
Learn more
Leak Current
*For commercial power lines, 50/60 Hz
CLAMP ON LEAK HiTESTER 3283
• AC leak current and load current testing • 10 mA leak current range with 10 µA resolution • Load current up to 200 A
Learn more
OUTPUT CORD L9094
3.5 mm (0.14 in) dia. mini plug to banana, 1.5 m (4.92 ft) length
OUTPUT CORD L9095
Connect to BNC terminal, 1.5 m (4.92 ft) length
OUTPUT CORD L9096
Connect to terminal block, 1.5 m (4.92 ft) length
CONVERSION ADAPTER 9199
Receiving side banana, output BNC terminal
AC ADAPTER 9445-02
For USA, 100 to 240 V AC, 9 V/ 1 A
AC ADAPTER 9445-03
For EU, 100 to 240 V AC, 9 V/ 1 A
Case
CARRYING CASE C1010
For the MR6000, hard trunk type, for storing options
