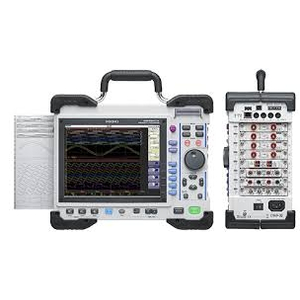

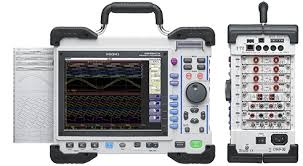

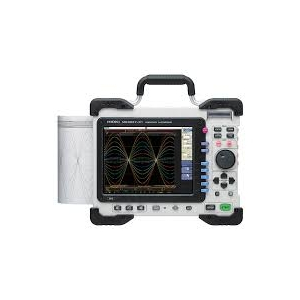

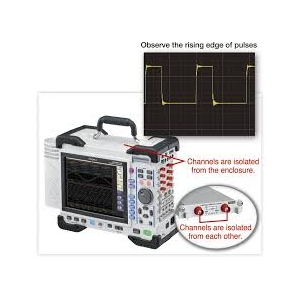

MEMORY HiCORDER MR8847A

(1 đánh giá)

Mã SP: MR8847A

Giá bán : Vui lòng gọi

Số lượng:
Các tính năng chính • Hỗ trợ nhiều phép đo khác nhau với tổng số 13 mô đun trình cắm • Tạo và ghi lại với một đơn vị • Kiểm tra đầu vào điện áp cao 1000 V trực tiếp • Lấy mẫu tốc độ cao lên đến 20MS / giây với các đầu vào được cách ly hoàn toàn • 16 kênh logic + 16 kênh thành 64 logic + 10 kênh tương tự • Lấy mẫu tốc độ cao với chức năng phán đoán dạng sóng • Xây dựng chịu đất mạnh mẽ chống lại môi trường làm việc bất lợi • Nút lớn được phủ để chịu được dầu và cặn công nghiệp

Thông tin người bán

HIOKI VIỆT NAM

6 Hoa Ma, Hai Ba Trung, Ha Noi

Hotline: 0917047888

Email: hiokivietnam.vic@gmail.com

Thông số kỹ thuật

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Max. Number of channels 16 ch analog + 16 ch logic, or 10 ch analog + 64 ch logic (when used with built-in logic input + plug-in Logic Unit 8973 × 3)
Number of slots 8 slots (Max. 8), [Limitation on number of slots] when using the Current Unit 8971: Max. 4, when using the Logic Unit 8973: Max. 3
Number of logic channels 16 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1 or 2.
[Limitation on using built-in logic input] (with logic measurement ON)
• Measurement resolution on slots 1 and 2 is limited up to 12 bits
• Cannot use Frequency Unit 8970 on slots 1 or 2.
Measurement ranges (20 div full-scale) [Analog unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D)
[High Voltage Unit U8974]: 200 mV/div to 50 V/div, 8 ranges, resolution : 1/1600 of range (using 16-bit A/D)
Max. allowable input 400 V DC (using the 8966), 1000 V DC (using the U8974)
Frequency characteristics DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (using the U8794)
Time axis (Memory function) 5 µs to 5 min/div (100 samples/div) 26 ranges, External sampling (100 samples/div, or free setting), Time axis zoom: x2 to x10 in 3 stages, compression: 1/2 to 1/200 000 in 16 stages
Measurement functions MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT
Other functions Waveform judgment (at Memory or FFT function)
Memory capacity MR8847-51: Total 64 M-words (Memory expansion: none)
32 MW/ch (using 2 Analog channels), to 4 MW/ch (using 16 Analog channels)
MR8847-52: Total 256 M-words (Memory expansion: none)
128 MW/ch (using 2 Analog channels), to 16 MW/ch (using 16 Analog channels)
MR8847-53: Total 512 M-words (Memory expansion: none)
256 MW/ch (using 2 Analog channels), to 32 MW/ch (using 16 Analog channels)
Removable storage CF card slot (standard) ×1 (up to 2GB, FAT, or FAT-32 format), SSD (128 GB, optional), USB memory stick (USB 2.0)
Printing 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s
Display 10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
Displayable languages English, Japanese, Korean, Chinese
External interfaces [LAN] 100BASE-TX (FTP server, HTTP server), [USB] USB2.0 compliant, series A receptacle ×1, series B receptacle ×1, (File transfer internal drive/CF card to PC, or remote control from PC)
Power supply 100 to 240 V AC, 50/60 Hz (130 VA max., when using printer: 220 VA max.),
10 to 28 V DC (when using the optional factory-installed DC Power Unit 9784)
Dimensions and mass 351 mm (13.82 in) W × 261 mm (10.28 in) H × 140 mm (5.51 in) D,
7.6 kg (268.1 oz) (main unit only)
Accessories Instruction manual ×1, Measurement guide ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1, Input cord label ×1, USB cable ×1, Printer paper ×1, Roll paper attachment ×2, Ferrite clamp ×1

Catalog sản phẩm

Options

Printer options

RECORDING PAPER 9231

A4 width 216 mm (8.50 in) × 30 m (98.43 ft), 6 rolls/set

Factory-installed option

*Must specify when ordering

SSD UNIT U8331

Specify upon order, built-in type, 128 GB



DC POWER UNIT 9784

Factory-installed option - not user installable, built in on the bottom case. 10 to 28 V DC drive.

Storage media

*The CF card includes a PC card adapter.

Use only CF Cards or USB drives sold by HIOKI. Compatibility and performance are not guaranteed for CF cards/USB memory sticks made by other manufacturers. You may be unable to read from or save data to such cards.

PC CARD 512M 9728

• 512 MB capacity • PC card adapter bundled

Learn more



PC CARD 1G 9729

• 1 GB capacity • PC card adapter bundled

Learn more



PC CARD 9830

• 2 GB capacity • PC card adapter bundled

Learn more



USB DRIVE Z4006

16 GB, Long-life, High-reliability SLC Flash Memory

Input modules

*Input cords are not included. Please purchase them separately. *When using 9709 with Current Unit 8971, a total of 7 current probes can be used.

ANALOG UNIT 8966

• 2 ch, instantly waveforms • DC to 5 MHz bandwidth

Learn more



TEMP UNIT 8967

• 2 ch, Temperature • Thermocouple input

Learn more



HIGH RESOLUTION UNIT 8968

• 2 ch, high resolution measurement • DC to 100 kHz bandwidth

Learn more



FREQ UNIT 8970

• 2 ch, Rotation, Frequency • DC to 100 kHz

Learn more

CURRENT UNIT 8971

• 2 ch, measuring current • DC to 400 kHz bandwidth • Direct connectable with current sensors

Learn more



DC/RMS UNIT 8972

• 2 ch, instantly waveform/RMS • DC to 400 kHz bandwidth • RMS: DC and 30 to 100 kHz

Learn more



LOGIC UNIT 8973

• 16 ch, logic signal • up to four logic probes

Learn more



DIGITAL VOLTMETER UNIT MR8990

・ For minute voltage measurement ・ Max. 0.1 μV resolution ・ 500 times/s sampling

Learn more

HIGH VOLTAGE UNIT U8974

・ 2 ch, High-voltage input ・ Max. 1000 VDC, 700 VAC rms ・ DC to 100 kHz bandwidth

Learn more



STRAIN UNIT U8969

• 2 ch, acceleration, load, pressure or strain • Strain gauge converter amp

Learn more

Output modules

* Input cords not included. Please purchase separately.

ARBITRARY WAVEFORM GENERATOR UNIT U8793

・Arbitrary waveform generator ・10 mHz - 100kHz FG ・Max.15 V output

Learn more



PULSE GENERATOR UNIT MR8791

・8 ch ・0.1 Hz to 20 kHz pulse ・Pattern output

Learn more



WAVEFORM GENERATOR UNIT MR8790

・4 ch ・±10 V DC output ・1 Hz to 20 kHz sine waveform output

Learn more

Output cables

* Please contact your local HIOKI distributor for connectors that support Model MR8791.

CONNECTION CABLE L9795-01

Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to alligator clip, 1.5 m (4.92 ft) length



CONNECTION CABLE L9795-02

Max. rated voltage to earth: 33 Vrms AC or 70 V DC, SMB to BNC terminal, 1.5 m (4.92 ft) length

Input cable (A)

*Voltage is limited to the specifications of the input modules in use.

CONTACT PIN 9790-03

Red/black set attaches to the ends of the Connection Cord L9790



GRABBER CLIP 9790-02

Red/black set attaches to the ends of the Connection Cord L9790



ALLIGATOR CLIP L9790-01

Red/black set attaches to the ends of the Connection Cord L9790



CONTACT PIN 9790-03

Red/black set attaches to the ends of the Connection Cord L9790

Input cable (B)

*Voltage is limited to the specifications of the input modules in use.

GRABBER CLIP 9243

Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V



CONNECTION CORD L9198

•φ 5.0 mm (0.20 in) dia. •Cable allows for up to 300 V input •1.7 m (5.58 ft) length •Small alligator clip



CONNECTION CORD L9197

•φ 5.0 mm (0.20 in) dia •Cable allows for up to 600 V input •1.8 m (5.91 ft) length •Includes detachable large alligator clips

Input cord (C)

* This probe does not expand the maximum rated voltage above ground of an isolated input.

10:1PROBE 9665

・1 kV rms Max. (500 kHz or less) ・Max. rated voltage to earth depends on input unit.

Learn more



100:1PROBE 9666

・5 kV peak Max. (1 MHz or less) ・Max. rated voltage to earth depends on input unit.

Learn more

Input cable (D)

* Voltage to ground is within this product’s specifications, separate power source is also required.

DIFFERENTIAL PROBE P9000

• Waveform only for exclusive use with Memory HiCorders (P9000-01) or waveform/RMS value switchable (P9000-02) • For use with input of up to 1 kV AC/DC • Requires separate power supply

Learn more



AC ADAPTER Z1008

100 to 240V AC

Custom cable

*For P9000. Inquire with your Hioki distributor.

(1) Bus powered USB cable
(2) USB(A)- Micro B cable
(3) 3-prong cable



Input cable (E)

*Voltage to ground is within this product's specifications. Separate power source is also required.

DIFFERENTIAL PROBE 9322

• For up to 2 kV DC or 1 kV AC • Use with AC Adapter 9418-15 • Frequency band width up to 10MHz

Learn more



AC ADAPTER 9418-15

100 to 240V AC

Input cable (F)

* Voltage input via banana terminals limited by the voltage specifications of the respective input unit.

CONNECTION CABLE SET L4940

Banana plug - banana plug, 1.5 m (4.92 ft) length, red/black each 1



EXTENSION CABLE SET L4931

Expands the length of the cable with banana plug, 1.5 m (4.92 ft) length



ALLIGATOR CLIP SET L4935

Attaches to the tip of the banana plug cable, CAT IV 600V, CAT III 1000V



BUS BAR CLIP SET L4936

Attaches to the tip of the banana plug cable, CAT III 600V

MAGNETIC ADAPTER SET L4937

Attaches to the tip of the banana plug cable, CAT III 1000V



GRABBER CLIP 9243

Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V

Input cable (G)

* For the MR8990 *Voltage is limited to the specifications of the input modules in use.

TEST LEAD L2200

70 cm (2.30ft) length, detachable large alligator clips or needle tips are bundled, CAT IV 600V, CAT III 1000V

Non-contact voltage measurement

NON-CONTACT AC VOLTAGE PROBE SP3000

Sold individually



NON-CONTACT AC VOLTAGE PROBE SP3000

• Supports φ1mm to 2.5mm covered wires • 10Hz to 100kHz frequency bandwidth • 5Vrms 14Vp-p rated measurement voltage

Learn more



AC VOLTAGE PROBE SP9001

Sold individually

Other options for input

CONNECTION CORD L9217

Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length



CONNECTION CORD 9165

Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length



CONVERSION CABLE 9318

To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length



CONVERSION ADAPTER 9199

Receiving side banana, output BNC terminal

Temperature sensor

*For reference only. Please purchase locally.

Thermocouple



Logic signal measurement

* Only the small terminal types can be used.

* The 9323 is not required for the small-terminal types 9327, 9320-01, 9321-01 and MR9321-01.

LOGIC PROBE 9327

• 4 channels for contact voltage signals • High-speed 100ns response

Learn more



LOGIC PROBE 9320-01

• 4 channels for contact voltage signals • 500ns response • Miniature terminal type

Learn more



LOGIC PROBE MR9321-01

• 4 isolated channels • ON/OFF detection of AC/DC voltage • Large terminal type

Learn more



CONVERSION CABLE 9323

• Used for connecting the 9320/9321/MR9321 and the 9324 to the Memory HiCorder with small logic terminal models

Up to 200 A (High precision)

AC/DC CURRENT SENSOR CT6862-05

• DC to 1MHz (Phase: up to 300kHz) • Rated 50A AC/DC • φ 24 mm (0.94 in) core dia.

Learn more



AC/DC CURRENT SENSOR CT6863-05

• DC to 500kHz (Phase: up to 300kHz) • Rated 200A AC/DC • φ 24 mm (0.94 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6841-05

• DC to 1MHz (Phase: up to 300kHz) • Rated 20A AC/DC • φ 20 mm (0.79 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6843-05

• DC to 500kHz (Phase: up to 300kHz) • Rated 200A AC/DC • φ 20 mm (0.79 in) core dia.

Learn more

CLAMP ON SENSOR 9272-05

• 1Hz to 100kHz (Phase: 5Hz to 50kHz) • Rated 20A/200A AC/DC • φ 46 mm (1.81 in) core dia.

Learn more

Up to 1000 A (High precision)

AC/DC CURRENT SENSOR 9709-05

• DC to 100kHz (Phase: up to 100kHz) • Rated 500A AC/DC • φ 36 mm (1.42 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6845-05

• DC to 100kHz (Phase: up to 100kHz) • Rated 500A AC/DC • φ 50 mm (1.97 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6844-05

• DC to 200kHz (Phase: up to 200kHz) • Rated 500A AC/DC • φ 20 mm (0.79 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6846-05

• DC to 20kHz (Phase: up to 20kHz) • Rated 1000A AC/DC • φ 50 mm (1.79 in) core dia.

Learn more

Power supply

*Not necessary when using Current Unit 8971.

CONNECTION CORD L9217

Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length

Directly connect currents sensors

*The separately available Conversion Cable CT9901 is required in order to use a high-precision current sensor equipped with a ME15W (12-pin) terminal (-05 type) with the Current Unit 8971 (which is designed for use with the MR8847, MR8827, and MR8740).

*While the CT955x is not required in order to use a sensor equipped with a PL23 (10-pin) terminal with the 8971 or 8940, the Conversion Cable 9318 (which comes with the 8971) is required for that setup.

CURRENT UNIT 8971

• 2 ch, measuring current • DC to 400 kHz bandwidth • Direct connectable with current sensors

Learn more



CONVERSION CABLE 9318

To connect the CT6841-6846, CT6865/63/62, 9709, 9272-10 to the 8971/40/51, 38 cm (14.96 in) length



CONVERSION CABLE CT9901

ME15W (12 pin) to PL23 (10 pin) connector

10 mA class to 500 A (High speed)

CLAMP ON PROBE 3273-50

• DC to 50MHz (−3dB) • 30 Arms maximum • φ 5 mm (0.20 in) Core dia.

Learn more



CLAMP ON PROBE 3276

• DC to 100 MHz (−3dB) • 30 Arms maximum • φ 5 mm (0.20 in) Core dia.

Learn more



CLAMP ON PROBE 3274

• DC to 10MHz (−3dB) • 150 Arms maximum • φ 20 mm (0.79 in) Core dia.

Learn more



CLAMP ON PROBE 3275

• DC to 2MHz (−3dB) • 500 Arms maximum • φ 20 mm (0.79 in) Core dia.

Learn more

Power supply

* Necessary for using the 3270 seies current probes

POWER SUPPLY 3272

• Power 1 × CT6700, 3270 series

Learn more



POWER SUPPLY 3269

• Power 2 × CT6710 series or 4 × CT6700, 3270 series • 100 to 240 VAC

Learn more

100 A to 2000 A (Medium speed)

The CM7290 (available separately) is required in order to use these current sensors.

AC/DC CURRENT SENSOR CT7631

・ DC to 10kHz (-3dB) ・Rated 100 A AC/DC ・φ 33 mm (1.30 in) core dia.

Learn more



AC/DC CURRENT SENSOR CT7636

・ DC to 10kHz (-3dB) ・Rated 600 A AC/DC ・φ 33 mm (1.30 in) core dia.

Learn more



AC/DC CURRENT SENSOR CT7642

・ DC to 10kHz (-3dB) ・Rated 2000 A AC/DC ・φ 55 mm (2.17 in) core dia.

Learn more



AC/DC AUTO-ZERO CURRENT SENSOR CT7731

・ DC to 5 kHz (-3dB) ・ Rated 100 A AC/DC ・φ 33 mm (1.30 in) core dia.

Learn more

AC/DC AUTO-ZERO CURRENT SENSOR CT7736

・ DC to 5 kHz (-3dB) ・ Rated 600 A AC/DC ・φ 33 mm (1.30 in) core dia.

Learn more



AC/DC AUTO-ZERO CURRENT SENSOR CT7742

・ DC to 5 kHz (-3dB) ・ Rated 2000 A AC/DC ・φ 55 mm (2.17 in) core dia.

Learn more



DISPLAY UNIT CM7290

• Use with CT7000 series • DCA, ACA, (DC+AC)A, frequency • WAVE, RMS, PEAK, Hz output

Learn more



DISPLAY UNIT CM7291

• Built in Bluetooth(R) wireless technology • Use with CT7000 series • DCA, ACA, (DC+AC)A, frequency • WAVE, RMS, PEAK, Hz output

Learn more

500 A to 5000 A

*For commercial power lines, 50/60 Hz

CLAMP ON PROBE 9018-50

• Excellent phase characteristics • 40 Hz to 3 kHz • 10 to 500A AC • φ 46 mm (1.81 in) core dia.

Learn more



CLAMP ON PROBE 9132-50

• Use for level measurement • 40 Hz to 1 kHz • 20 to 1000A AC • φ 55 mm (2.17 in) core dia.

Learn more



AC FLEXIBLE CURRENT SENSOR CT9667

• 10 Hz to 20 kHz (±3dB) • 5000 A/ 500 A AC rated input

Learn more

Leak Current

*For commercial power lines, 50/60 Hz

CLAMP ON LEAK HiTESTER 3283

• AC leak current and load current testing • 10 mA leak current range with 10 µA resolution • Load current up to 200 A

Learn more



AC ADAPTER 9445-02

For USA, 100 to 240 V AC, 9 V/ 1 A



CONVERSION ADAPTER 9199

Receiving side banana, output BNC terminal



OUTPUT CORD L9094

3.5 mm (0.14 in) dia. mini plug to banana, 1.5 m (4.92 ft) length

Up to 2000 A (Curent meter)

*Clamp sensor sold separately



PC Software

WAVE PROCESSOR 9335

• For the Memory HiCorder • Convert data, print and display waveforms

Learn more



LAN COMMUNICATOR 9333

• For LAN communication with the Memory HiCorder • Data collection and remote control

Learn more



iPad App for Memory HiCorder HMR Terminal

• For Memory HiCorder • (Exclusively for Apple Inc. iPad) Free download from the App Store

Learn more



LAN CABLE 9642

Straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m (16.41 ft) length

FlexPro

• Third party software • For detailed analysis of Memory HiCorder data

Learn more

Case

CARRYING CASE 9783

For the MR8847s/8847s, includes compartment for options, hard trunk type

Bình chọn sản phẩm: (5.0 / 1 Bình chọn)

Thiết kế Web gian hàng chuyên nghiệp chỉ với 30 phút
