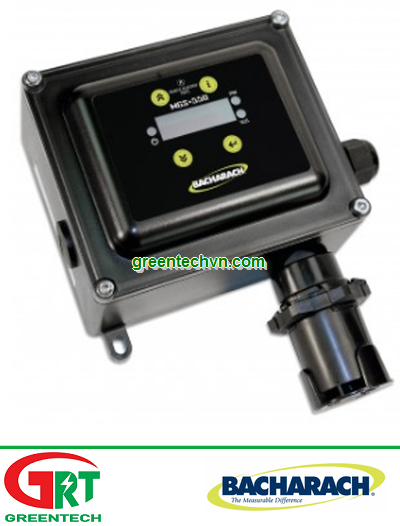

MGS-550 | 6600-8025 | Cảm biến nồng độ O2 0-30 Vol% | O2 Sensor | Detector

CHI TIẾT

Bacharach’s advanced MGS-550 Gas Detector Series can utilize any combination of sensor technologies, including electrochemical, semiconductor (MOS), catalytic bead or infrared, in a single platform for unparalleled detection capability. The MGS-550 can easily be connected to any central control system using the current and volt analog output or the Modbus RTU interface. With three user assignable relays, it can also function as a stand-alone unit without the need to wire alarm devices back to a central system.

The straightforward menu structure is identical throughout the platform reducing the amount of training required for installing and maintaining this product family. At any point in time, the instrument can be upgraded from a one sensor to a two sensor system by simply registering another sensor. The MGS-550 is furnished with two analog outputs which can be assigned as redundant for one or for transmit the signal of two sensors.

Type

Gas detector using Semiconductor, Electrochemical, Infrared or Catalytic Bead sensor.

For one or two sensor configuration

Gases

Toxic gases:

Ammonia, Carbon Dioxide, Carbon Monoxide, Chlorine, Ethylene, Fluorine, Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Sulfide, Nitrogen Dioxide, Ozone, Sulfur Dioxide, VOCs and Oxygen

Combustible gases:

Methane, Propane, Butane, LPG, and Hydrogen

Refrigerants:

Ammonia, Carbon Dioxide, Hydrocarbons, and HFCs, HCFCs, CFCs

Measuring Range

O2 30 Vol%

CO 1,000 ppm

H2S*** 100 ppm

NH3*,*** 100 / 1,000 / 5,000 / 10,000 ppm / 100 %LEL

CO2 5,000 / 10,000 / 20,000 / 30,000 / 40,000 / 50,000 ppm

Refrigerants 1,000 / 10,000 ppm

Combustible Gases 100 %LEL

H2 10,000 ppm

C2H4 2,000 ppm

VOC 1,000 ppm

CI2** 10 ppm

F2** 1 ppm

HCI** 10 ppm

SO2*** 10 ppm

NO2*** 20 ppm

HCN*** 30 ppm

O3** 1 ppm

Display

5-digit, 7-segment red LED and green status LEDs

Output

Analog

4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V

Digital

Modbus RTU via RS 485

Power Supply

19.5 to 28.5 VDC or 24 VAC ± 20%; 3- or 4-wire

Relay

3 relays, SPDT, user assignable

Rating 1 A @ 24 VDC, 0.25 A @ 240 VAC, resistive load

Alarm delay 0 to 15 minutes; user-programmable

Ambient Conditions

Temperature

- 40 to +120 °F (40 to +50 °C)

Humidity

5 to 90 %RH, non condensing

Altitude

0 to 10,000 ft (3,050 m)

Enclosure options

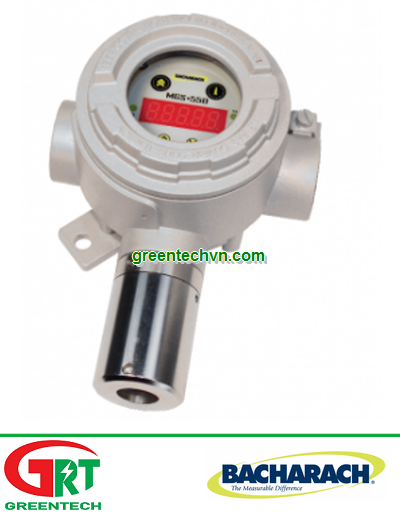

Explosion-proof: Powder coated, copper free aluminum, with four M20 x 1.5 portsGeneral Purpose: IP66 Rated ABS with four M20 x 1.5 ports

Size (w x h x d)

General Purpose: 8.3” x 8.9” x 3.4” (210 x 225 x 85 mm)Explosion-proof: 4.9” x 7.5” x 3.5” (125 x 190 x 90 mm)

Weight

General Purpose: 2 lbs (1 kg)

Explosion-proof: 3.5 lbs (1.6 kg)

Approvals

CE, UL, CSA, IEC, EN 61010-1

II 2G Ex d IIC Gb; XP enclosure only

*Ammonia available as low temperature version -40°F / -40°C (not for 5,000 ppm electrochemical sensor)

**Not IP66 rated; not available for XP enclosure

***Not available for XP enclosure

Part Number

Description

6600-8010

MGS-550 Gas Detector, IP66, CO2, 0-5,000 ppm

6600-8011

MGS-550 Gas Detector, IP66, CO2, 0-10,000 ppm

6600-8016

MGS-550 Gas Detector, IP66, Butane, 0-100 %LEL

6600-8017

MGS-550 Gas Detector, IP66, Methane, 0-100 %LEL

6600-8018

MGS-550 Gas Detector, IP66, Propane, 0-100 %LEL

6600-8019

MGS-550 Gas Detector, IP66, NH3, 0-100 ppm

6600-8020

MGS-550 Gas Detector, IP66, NH3, 0-1,000ppm

6600-8021

MGS-550 Gas Detector, IP66, NH3, 0-5,000 ppm

6600-8023

MGS-550 Gas Detector, IP66, CO, 0-1,000 ppm

6600-8024

MGS-550 Gas Detector, IP66, NO2, 0-20 ppm

6600-8025

MGS-550 Gas Detector, IP66, O2, 0-30 Vol%

6600-8026

MGS-550 Gas Detector, No IP Rating, Cl2, 0-10 ppm

6600-8027

MGS-550 Gas Detector, No IP Rating, F2, 0-1 ppm

6600-8028

MGS-550 Gas Detector, No IP Rating, O3, 0-1 ppm

6600-8029

MGS-550 Gas Detector, IP66, SO2, 0-10 ppm

6600-8030

MGS-550 Gas Detector, IP66, H2S, 0-100 ppm

6600-8031

MGS-550 Gas Detector, no IP Rating, HCl, 0-10 ppm

6600-8032

MGS-550 Gas Detector, IP66, HCN, 0-30 ppm

6600-8033

MGS-550 Gas Detector, IP66, H2, 0-10,000 ppm

6600-8034

MGS-550 Gas Detector, IP66, NH3, 0-100 %LEL

6600-8035

MGS-550 Gas Detector, IP66, LPG, 0-100 %LEL

6600-8036

MGS-550 Gas Detector, IP66, Methane, 0-100 %LEL

6600-8040

MGS-550 Gas Detector, IP66, R-22, 0-1,000 ppm

6600-8041

MGS-550 Gas Detector, IP66, R-32, 0-1,000 ppm

6600-8042

MGS-550 Gas Detector, IP66, R-134a, 0-1,000 ppm

6600-8043

MGS-550 Gas Detector, IP66, R-404a, 0-1,000 ppm

6600-8045

MGS-550 Gas Detector, IP66, R-407c, 0-1,000 ppm

6600-8047

MGS-550 Gas Detector, IP66, R-410a, 0-1,000 ppm

6600-8048

MGS-550 Gas Detector, IP66, R-422, 0-1,000 ppm

6600-8049

MGS-550 Gas Detector, IP66, R-422d, 0-1,000 ppm

6600-8050

MGS-550 Gas Detector, IP66, R-427a, 0-1,000 ppm

6600-8051

MGS-550 Gas Detector, IP66, R-507, 0-1,000 ppm

6600-8052

MGS-550 Gas Detector, IP66, HFO1234YF, 0-1,000 ppm

6600-8053

MGS-550 Gas Detector, IP66, HFO1234ZE, 0-1,000 ppm

6600-8076

MGS-550 Gas Detector, IP66, SC, R-448a, 0-1,000ppm

6600-8077

MGS-550 Gas Detector, IP66, SC, R-449a, 0-1,000ppm

6600-8078

MGS-550 Gas Detector, IP66, SC, R-452a, 0-1,000ppm

6600-8079

MGS-550 Gas Detector, IP66, SC, R-513a, 0-1,000ppm

6600-8176

MGS-550 IP66 Sensing Head, 5m, SC, R-448a, 0-1,000ppm

6600-8177

MGS-550 IP66 Sensing Head, 5m, SC, R-449a, 0-1,000ppm

6600-8178

MGS-550 IP66 Sensing Head, 5m, SC, R-452a, 0-1,000ppm

6600-8179

MGS-550 IP66 Sensing Head, 5m, SC, R-513a, 0-1,000ppm

6600-8876

MGS-550 IP66 Sensing Head, Integrated, SC, R-448a, 0-1,000ppm

6600-8877

MGS-550 IP66 Sensing Head, Integrated, SC, R-449a, 0-1,000ppm

6600-8878

MGS-550 IP66 Sensing Head, Integrated, SC, R-452a, 0-1,000ppm

6600-8879

MGS-550 IP66 Sensing Head, Integrated, SC, R-513a, 0-1,000ppm

6600-8305

Calibrated Sensor Assy., SC, R-448a, 0-1,000ppm, IP66 Sensing Head

6600-8306

Calibrated Sensor Assy., SC, R-449a, 0-1,000ppm, IP66 Sensing Head

6600-8307

Calibrated Sensor Assy., SC, R-452a, 0-1,000ppm, IP66 Sensing Head

6600-8308

Calibrated Sensor Assy., SC, R-513a, 0-1,000ppm, IP66 Sensing Head
