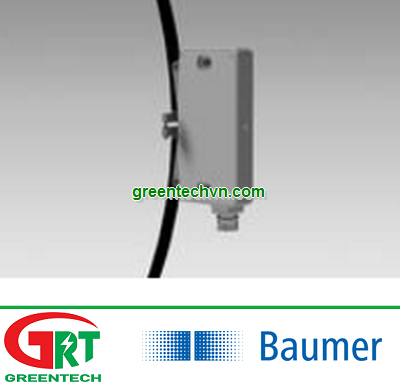

| Technical data - electrical ratings |
|---|
| Voltage supply | 4.75...30 VDC |
| Consumption w/o load | ≤300 mA (24 VDC) |
| Output signals | SSI data (Linedriver RS485) |
| Position resolution | 0...20 bit singleturn |
| Speed resolution | ≤18 bit (±20...±2000 rpm) |
| Code | Gray or binary |
| Code sequence | Positiv at CW |
| Input signals | SSI clock, set zero, counting direction |
| Additional outputs | Square-wave HTL, TTL/RS422 or SinCos |
| Status indicator | Color-LED, system OK output |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-3 |
| Approval | CE |
| Technical data - electrical ratings (square-wave) |
|---|
| Pulses per revolution | 1024...4096 |
| Phase shift | 90° ±2° |
| Scan ratio | 45...55 % |
| Output frequency | ≤500 kHz (HTL), ≤2 MHz (TTL) |
| Output signals | A+, A-, B+, B- |
| Output stages | HTL, TTL/RS422 |
| Technical data - electrical ratings (SinCos) |
|---|
| Sinewave cycles per turn | 1024...4096 |
| Phase shift | 90° ±2° |
| Output frequency | ≤500 kHz |
| Output signals | A+, A-, B+, B- |
| Output stages | SinCos 1 Vpp |
| Technical data - mechanical design |
|---|
| Dimensions (sensor head) | 165 x 25 x 93 mm |
| Shaft type | ø300...3183 mm (through hollow shaft) |
| Axial tolerance | ±5 mm (belt to head) |
| Radial tolerance | 1...3 mm (belt to head) |
| Protection DIN EN 60529 | IP 67 |
| Operating temperature | -40...+85 °C |
| Operating speed | 1850 rpm (ø300 mm)150 rpm (ø1500 mm) see diagram below |
| Resistance | IEC 60068-2-6 Vibration 30 g, 10-2000 Hz IEC 60068-2-27 Shock 300 g, 6 ms |
| Connection | Flange connector M23, 17-pin |
| Weight approx. | 730 g (head) 120 g (belt/m), 17 g (lock) |
