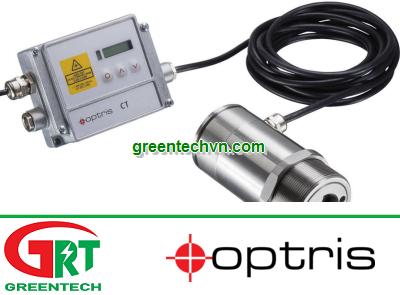

Optris CTlaser LTF | Infrared thermometer | Nhiệt kế hồng ngoại Optris CTlaser LTF

CHI TIẾT

- - Công ty TNHH TM DV GREENTECH là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay

Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.

< SALE & TECHNICAL SUPPORT >

< PROJECT SUPPORT >
Email : sales@greentechvn.com

-------------------------------------------------------------------

-------------------------------------------------------------------

Base Model	CS	CSmicro	CSmicro 2W	CSmicro 2W	CSmicro 2W
Type	LT	LT02 / LT15 / 3M	LT15 / LT15H / LT22H	hs LT	2M
Classification /	Single-piece sensor	Single-piece sensor with	Single-piece two-wire	Single-piece two-wire	Single-piece two-wire
special features	with smart LED display	electronics in cable and	sensor with electronics in	sensor with electronics in	sensor with electronics
	(self diagnostics,	smart LED display	cable; smart LED display	cable with high thermal	in applications;
	aiming support, alarm,	(aiming support, alarm,	(aiming support, alarm,	sensitivity; smart LED	smart LED display;
	temperature code)	temperature code)	temperature code)	display; temperature code	temperature code
Detector	Thermopile	Thermopile / 3M: Ext. InGaAs	Thermopile	Thermopile	InGaAs
Sensing head exchangeable	–	–	–	–	–
Head cable shortening	■	■ (behind electronics)	■ (behind electronics)	■ (behind electronics)	■ (behind electronics)
Thread (sensing head)	M12x1	M12x1	M12x1	M18x1	M12x1
Spectral range	8 – 14 μm	8 – 14 μm / 3M: 2.3 μm	8 – 14 μm	8 – 14 μm	1.6 μm
Temperature ranges	–40 °C ... 1030 °C	–40 °C ... 1030 °C	–40 °C ... 1030 °C	–20 °C ... 150 °C	2ML: 250 °C ... 800 °C
		3ML: 50 °C ... 350 °C			2MH: 385 °C ... 1600 °C
		3MH: 100 °C ... 600 °C
Temperature resolution	0.1 K	0.1 K	0.1 K	0.025 K [>20 °C]	0.1 K
Optical resolution	15:01	LT02: 2:1 / LT15: 15:1 /	LT15: 15:1 / LT15H: 15:1 /	15:01	2ML: 40:1
		3ML: 22:1 / 3MH: 33:1	LT22H: 22:1		2MH: 75:1
Option: CF lens	■	■	■	■	■
Smallest spot (CF optics / add. CF lens)	0.8 mm @ 10 mm	LT02: 2.5 mm @ 23 mm	LT15: 0.8 mm @ 10 mm	0.8 mm @ 10 mm	2MH: 1.5 mm@110 mm
		LT15: 0.8 mm @ 10 mm	LT15H: 0.8 mm @ 10 mm		2ML: 2.7 mm@110 mm
		3M: 1.5 mm @ 10 mm	LT22H: 0.6 mm @ 10 mm
Smallest spot (SF optics)	7 mm	7 mm	7 mm	7 mm	7 mm
Sighting	LED aiming	LED aiming	LED aiming	LED aiming	LED aiming
Response time (90 %)	25 ms	30 ms	LT: 30 ms / LTH: 150 ms	150 ms	10 ms
Accuracy	±1.5 °C or ±1.5 %	±1.5 °C or ±1.5 %	±1.5 °C or ±1 %	±1 °C or ±1 %	±(0.3 % Tmeas +2 °C)
Outputs analog: 0 – 20 mA /	– / – / ■ / ■ / ■	– / – / ■ / ■ / –	– / ■ / – / – / –	– / ■ / – / – / –	– / ■ / – / – / –
4 – 20 mA / 0 – 5 V / 0 – 10 V / t/c (K/J)
Second analog output	–	–	–	–	–
Interfaces: USB / RS232 /	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –
RS485 / Profibus / Ethernet
Signal processing:	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
Peak / Valley / AVG / Advanced hold
TAmb Head min.	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
TAmb Head max.	80 °C	LT02 / LT15: 120 °C	LT15: 120 °C	75 °C	125 °C
		3M: 85 °C	LT15H / LT22H: 180 °C
TAmb Electronics max.	80 °C	80 °C	75 °C	75 °C	75 °C
Functional inputs / number	■ / 1	■ / 1	– / –	– / –	– / –
External emissivity adjustment	■ (via Vcc adjust)	■ (via Vcc adjust)	–	–	–
External background temperature control	■	■	–	–	–
Trigger input for reset of hold functions	■	■	–	–	–
Digital I/O pins / number	–	–	–	–	–
Simultaneous analog and digital output	–	–	■	■	■
Alarm output as an alternative to analog output	■	■	■	■	■
Additional alarm output / switching output	■	■	■	■	■
Voltage supply	5 – 30 V DC	5 – 30 V DC	5 – 30 V DC	5 – 30 V DC	5 – 30 V DC
Standard cable length	1 m	1 m	1 m	4 m	1 m
Cable length options	3 / 8 / 15 m	Options up to 9 m	Options up to 9 m	–	Options up to 9 m

CT	CTfast	CThot	CT	CT	CT	CT
LT02 / LT15 / LT22	LT15F / LT25F	LT02H / LT10H	1M / 2M	3M	G5	P7
Two-piece sensor with	Two-piece sensor with	Two-piece sensor for	Two-piece sensor for high	Two-piece sensor for low	Two-piece sensor for	Two-piece sensor for
separate electronic box	fast response time and	hot surroundings with	temp. meas. of metal	temp. meas. of metal	temp. meas. of glass	temp. meas. on plastic foils
incl. programming keys	separate electronic box	separate electronic box	with separate electronic	with separate electronic	with separate electronic	and glass with separate
and display	incl. programming keys	incl. programming keys	box incl. progr. keys and	box incl. progr. keys and	box incl. progr. keys and	electronic box incl. progr.
	and display	and display	display	display	display	keys and display
Thermopile	Thermopile	Thermopile	1M: Si / 2M: InGaAs	Extended InGaAs	Thermopile	Thermopile
■	–	–	■ [+CTlaser 1M/2M]	■ [+CTlaser 3M]	■	–
■ [–0.1 K/m]	■ [max. 3 m]	■ [–0.1 K/m]	■ [max. 3 m]	■	■ [–0.1 K/m]	–
M12x1	M12x1	M18x1	M12x1	M12x1	M12x1	M18x1
8 – 14 μm	8 – 14 μm	8 – 14 μm	1M: 1.0 μm / 2M: 1.6 μm	2.3 μm	5.0 μm	7.9 μm
LT02: –50 °C ... 600 °C	–50 °C ... 975 °C	–40 °C ... 975 °C	1ML: 485 °C ... 1050 °C	L: 50 °C ... 400 °C	L: 100 °C ... 1200 °C	0 °C ... 710 °C
LT15: –50 °C ... 600 °C			1MH: 650°C ... 1800 °C	H: 100 °C ... 600 °C	H: 250 °C ... 1650 °C
LT22: –50 °C ... 975 °C			1MH1: 800 °C ... 2200 °C	H1: 150 °C ... 1000 °C
			2ML: 250 °C ... 800 °C	H2: 200 °C ... 1500 °C
			2MH: 385 °C ... 1600 °C	H3: 250 °C ... 1800 °C
			2MH1: 490 °C ... 2000 °C
0.1 K	LT15F: 0.2 K	0.25 K	0.1 K	0.1 K	L: 0.1 K	0.5 K
	LT25F: 0.4 K				H: 0.2 K
LT02: 2:1 / LT15: 15:1 /	LT15F: 15:1	LT02H: 2:1	L: 40:1	L: 22:1 / H: 33:1 /	L: 10:1	10:01
LT22: 22:1	LT25F: 25:1	LT10H: 10:1	H: 75:1	H1–H3: 75:1	H: 20:1
■	■	■	■	■	–	–
LT02: 2.5 mm @ 23 mm	0.6 mm @ 10 mm	LT02H: 2.5 mm @ 23 mm	1.5 mm @ 110 mm	3.4 mm @ 110 mm	–	1.2 mm @ 10 mm
LT15: 0.8 mm @ 10 mm		LT10H: 1.2 mm @ 10 mm
LT22: 0.6 mm @ 10 mm
7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
–	–	–	–	–	–	–
150 ms	LT15F: 9 ms / LT25F: 6 ms	100 ms	1 ms	1 ms	L: 120 ms / H: 80 ms	150 ms
±1 °C or ±1 %	±2 °C or ±1 %	±1.5 °C or ±1 %	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±2 °C or ±1 %	±1.5 °C or ±1 %
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
■	■	■	–	–	■	■
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
LT02: 130 °C	120 °C	250 °C	1M: 100 °C	85 °C	85 °C	85 °C
LT15 / LT22: 180 °C			2M: 125 °C
85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	■ / 3
■	■	■	■	■	■	■
■	■	■	■	■	■	■
■	■	■	■	■	■	■
–	–	–	–	–	–	–
■	■	■	■	■	■	■
■	■	■	■	■	■	■
■	■	■	■	■	■	■
8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC
1 m	1 m	3 m	3 m	3 m	3 m	3 m
3 / 8 / 15 m	3 / 8 / 15 m	8 / 15 m	8 / 15 m	–	8 / 15 m	8 / 15 m

Base Model	CSlaser	CSlaser	CSlaser	CTlaser	CTlaser
Type	LT / hs LT	2M	G5HF	LT / LTF	05M
Classification /	Single-piece two-wire	Single-piece two-wire	Single-piece two-wire	Two-piece sensor with	Two-piece sensor with
special features	sensor with electronics	sensor with electronics	infrared thermometer	separate electronic	separate electronic
	in sensing head	in sensing head for	for temperature	box with fast response	box for high temp.
		measurement of metal	measurement of glass	time, incl. programming	measurement of liquid
				keys and display	metal, incl. programming
					keys and display
Detector	Thermopile	InGaAs	Thermopile	Thermopile	Si
Sensing head exchangeable	–	–	–	■	■
Head cable shortening	■	■	■	■ [max. 6 m]	■ [max. 6 m]
Thread (sensing head)	M48x1.5	M48x1.5	M48x1.5	M48x1.5	M48x1.5
Spectral range	8 – 14 μm	1.6 μm	5.0 μm	8 – 14 μm	0.525 μm
Temperature ranges	LT: –30 °C ... 1000 °C	L: 250 °C ... 800 °C	200 ... 1650 °C	–50 °C ... 975 °C	1000 °C ... 2000 °C
	hs LT: –20 °C ... 150 °C	H: 385 °C ... 1600 °C
Temperature resolution	LT: 0.1 K / hs LT: 0.025 K	0.1 K	0.1 K	LT: 0.1 K / LTF: 0.5 K	0.2 K
Optical resolution	50:01:00	300:01:00	45:01:00	LT: 75:1	150:01:00
				LTF: 50:1
Option: CF lens	–	–	–	–	–
Smallest spot (CF optics / add. CF lens)	1.4 mm @ 70 mm	0.5 mm @ 150 mm	1.6 mm @ 70 mm	LT: 0.9 mm @ 70 mm	–
				LTF: 1.4 mm @ 70 mm
Smallest spot (SF optics)	24 mm @ 1200 mm	3.7 mm @ 1100 mm	27 mm @ 1200 mm	LT: 16 mm @ 1200 mm	7.3 mm @ 1100 mm
				LTF: 24 mm @ 1200 mm
Sighting	Double laser	Double laser	Double laser	Double laser	Double laser
Response time (90 %)	150 ms	10 ms	30 ms	LT: 120 ms / LTF: 9 ms	1 ms
Accuracy	±1 °C or ±1 %	±(0.3 % Tmeas +2 °C)	±1% or ±1°C	LT: ±1 °C or ±1 %	±(0.3 % Tmeas +2 °C)
				LTF: ±1.5 °C or ±1.5 %
Outputs analog: 0 – 20 mA /	– / ■ / – / – / –	– / ■ / – / – / –	– / ■ / – / – / –	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
4 – 20 mA / 0 – 5 V / 0 – 10 V / t/c (K/J)
Second analog output	–	–	–	■	–
Interfaces:	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
USB / RS232 / RS485 / Profibus / Ethernet
Signal processing:	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
Peak / Valley / AVG / Advanced hold
TAmb Head min.	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
TAmb Head max.	85 °C	85 °C	85 °C	85 °C	85 °C
TAmb Electronics max.	85 °C	85 °C	85 °C	85 °C	85 °C
Functional inputs / number	– / –	– / –	– / –	■ / 3	■ / 3
External emissivity adjustment	–	–	–	■	■
External background temperature control	–	–	–	■	■
Trigger input for reset of hold functions	–	–	–	■	■
Digital I/O pins / number	–	–	–	–	–
Simultaneous analog and digital output	■	■	■	■	■
Alarm output as alternative to analog output	■	■	■	■	■
Additional alarm output / switching output	■	■	■	■	■
Voltage supply	5 – 30 V DC	5 – 30 V DC	5 – 28 V DC	8 – 36 V DC	8 – 36 V DC
Standard cable length	3 m	3 m	3 m	3 m	3 m
Cable length options	8 / 15 m	8 / 15 m	3 m / 8 m / 15 m	8 / 15 m	8 / 15 m

CTlaser	CTlaser	CT XL	CTlaser	CTlaser	CTlaser	CTratio
1M / 2M	3M	3M	MT / F2 / F6	G5	P7	1M
Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Ratio pyrometer with
separate electronic	separate electronic	separate electronic box	separate electronic box	separate electronic box	separate electronic	separate electronic box
box for high temp.	box for low temp.	for laser applications,	incl. progr. keys and	for measurement of	box for measurement	for high temp. measure-
measurement of metal,	measurement of metal,	incl. programming keys	display for measurement:	glass, incl. programming	of plastic foils, incl.	ment of metal feat.
incl. programming keys	incl. programming keys	and display (no laser)	MT: through flames	keys and display	programming keys and	glass fiber cable and
and display	and display		F2: CO2 flame gas		display	laser, incl. programming
			F6: CO flame gas			keys and display
1M: Si / 2M: InGaAs	Extended InGaAs	Extended InGaAs	Thermopile	Thermopile	Thermopile	Si sandwich
■ [+CT 1M / 2M]	■ [+CT 3M]	–	■	■	■	–
■ [max. 6 m]	■ [max. 6 m]	■	■ [max. 6 m]	■ [max. 6 m]	■ [max. 6 m]	–
M48x1.5	M48x1.5	M30x1	M48x1.5	M48x1.5	M48x1.5	M18x1
1M: 1.0 μm	2.3 μm	2.3 μm	MT: 3.9 μm / F2: 4.24 μm /	5.0 μm	7.9 μm	0.7 – 1.1 μm
2M: 1.6 μm			F6: 4.64 μm
1ML: 485 °C ... 1050 °C	L: 50 °C ... 400 °C	H: 100 °C ... 600 °C	200 °C ... 1650 °C	L: 100 °C ... 1200 °C	0 °C ... 710 °C	700 °C ... 1800 °C
1MH: 650 °C ... 1800 °C	H: 100 °C ... 600 °C	H1: 150 °C ... 1000 °C		H: 250 °C ... 1650 °C
1MH1: 800 °C ... 2200 °C	H1: 150 °C ... 1000 °C	H2: 200 °C ... 1500 °C		HF: 200 °C ... 1650 °C
2ML: 250 °C ... 800 °C	H2: 200 °C ... 1500 °C	H3: 250 °C ... 1800 °C
2MH: 385 °C ... 1600 °C	H3: 250 °C ... 1800 °C
2MH1: 490 °C ... 2000 °C
0.1 K	0.1 K	0.1 K	0.1 K	L: 0.1 K / H,HF: 0.2 K	0.5 K	0.1 K (> 900 °C)
L: 150:1	L: 60:1 / H: 100:1 /	H: 100:1	45:01:00	L/HF: 45:1	45:01:00	40:01:00
H: 300:1	H1-H3: 300:1	H1-H3: 300:1		H: 70:1
–	–	–	–	–	–	–
0.5 mm @ 150 mm	0.5 mm @ 150 mm	0.5 mm @ 150 mm	1.6 mm @ 70 mm	1 mm @ 70 mm	1.6 mm @ 70 mm	7.7 mm @ 305 mm
3.7 mm @ 1100 mm	11 mm @ 1100 mm	11 mm @ 1100 mm	27 mm @ 1200 mm	17 mm @ 1200 mm	27 mm @ 1200 mm	31.3 mm @ 1143 mm
Double laser	Double laser	–	Double laser	Double laser	Double laser	Laser
1 ms	1 ms	1 ms	10 ms	L: 120 ms / H: 80 ms	150 ms	5 ms
				HF: 10 ms
±(0,3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±1.5 °C or ±1 %	±1.5 °C or ±1 %	±1.5 °C or ±1 %	±(0.5 % Tmeas +1 °C)
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / –
–	–	–	■	■	■	–
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	– / – / – / – / –
■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	250 °C
85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	– / –
■	■	■	■	■	■	–
■	■	■	■	■	■	–
■	■	■	■	■	■	■ (via I/O pins)
–	–	–	–	–	–	■ / 2
■	■	■	■	■	■	■
■	■	■	■	■	■	■
■	■	■	■	■	■	■ (via I/O pins)
8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC
3 m	3 m	3 m	3 m	3 m	3 m	3 m
8 / 15 m	8 / 15 m	–	8 / 15 m	8 / 15 m	8 / 15 m	6 / 10 / 15 / 22 m

Base Modell	CSvideo	CTvideo	CTvideo
Type	2M (L / H)	1M / 2M (L / H)	3M (L / H)
Classification /	Single-piece two wire sensor with	Two-piece sensor with electronic box for	Two-piece sensor with electronic box for
special features	electronics in sensing head, video camera	high temperature measurement of metals,	low temperature measurement of metals,
	and cross hair laser for measuring metal	video camera and cross hair laser	video camera and cross hair laser
Detector	InGaAs	1M: Si / 2M: InGaAs	Extended InGaAs
Sensing head exchangeable	–	[+CT 1M / 2M]	[+CT 3M]
Head cable shortening	■	[max. 6 m]	[max. 6 m]
Thread (sensing head)	M48x1.5	M48x1.5	M48x1.5
Spectral range	1.6 μm	1M: 1.0 μm / 2M: 1.6 μm	2.3 μm
Temperature ranges	250 °C ... 800 °C (2ML)	485 °C ... 1050 °C (1ML)	50 °C ... 400 °C (3ML)
(scalable via software)	385 °C ... 1600 °C (2MH)	650 °C ... 1800 °C (1MH)	100 °C ... 600 °C (3MH)
		800 °C ... 2200 °C (1MH1)	150 °C ... 1000 °C (3MH1) 1)
		250 °C ... 800 °C (2ML)	200 °C ... 1500 °C (3MH2) 1)
		385 °C ... 1600 °C (2MH)	250 °C ... 1800 °C (3MH3) 1)
		490 °C ... 2000 °C (2MH1)
Temperature resolution	0.1 K	ML: 0.1 K / MH: 0.2 K	0.1 K
Optical resolution	2MH: 300:1 / 2ML: 150:1	L: 150:1 / H: 300:1	L: 60:1 / H: 100:1 / H1 – H3: 300:1
Smallest spot (CF optics)	2ML: 0.6 mm @ 90 mm (CF)	1ML/2ML: 0.6 mm @ 90 mm (CF)	3ML: 1.5 mm @ 90 mm (CF)
CF vario optics: focusable from	2MH: 0.3 mm @ 90 mm (CF)	1MH-H1/ 2MH-H1: 0.3 mm @ 90 mm (CF)	3MH: 0.9 mm @ 90 mm (CF)
90 mm to 250 mm			3MH1 – H3: 0.3 mm @ 90 mm (CF)
Smallest spot (SF optics)	2ML: 1.3 mm @ 200 mm (SF)	1ML/2ML: 1.3 mm @ 200 mm (SF)	3MH: 3.3 mm @ 200 mm (SF)
SF vario optics: focusable from	2MH: 0.7 mm @ 200 mm (SF)	1MH-H1/ 2MH-H1: 0.7 mm @ 200 mm (SF)	3MH: 2.0 mm @ 200 mm (SF)
200 mm to infinity			3MH1 – H3: 0.7 mm @ 200 mm (SF)
Sighting	video camera and cross hair laser	video camera and cross hair laser	video camera and cross hair laser
Response time (90 %)	10 ms	1 ms	1 ms
Accuracy	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)
Outputs analog: 0 – 20 mA /	– / ■ / – / – / –	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
4 – 20 mA / 0 – 5 V / 0 – 10 V / t/c (K/J)
Interfaces: USB / RS232 /	■ / – / – / – / ■	■ / – / – / – / ■	■ / – / – / – / ■
RS485 / Profibus / Ethernet
Signal processing:	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
Peak / Valley / AVG / Advanced hold
TAmb Head min.	–20 °C	–20 °C	–20 °C
TAmb Head max.	70 °C	85 °C	85 °C
TAmb Electronics max.	70 °C	85 °C	85 °C
Functional inputs / number	– / –	■ / 3	■ / 3
External emissivity adjustment	–	■	■
External background temperature	–	■	■
control
Trigger input for reset of hold	–	■	■
functions
Simultaneous analog and digital	■	■	■
output
Alarm output as an alternative to	■	■	■
analog output
Additional alarm output	0 – 30 V / 500 mA (open-collector)	24 V / 50 mA (open-collector)	24 V / 50 mA (open-collector)
Voltage supply	5 – 28 V DC	8 – 36 V DC	8 – 36 V DC
Standard cable length	3 m	3 m	3 m
Cable length options	8 / 15 m	5 / 10 m	5 / 10 m

Base Model		PI 160	PI 200 / PI 230	PI 400 / PI 450
Type		IR	BI-SPECTRAL	IR
Detector		FPA, uncooled (25 μm x 25 μm)	FPA, uncooled (25 μm x 25 μm)	FPA, uncooled (25 μm x 25 μm)
Optical resolution		160 x 120 pixel	160 x 120 pixel	382 x 288 pixel
Spectral range		7.5 – 13 μm	7.5 – 13 μm	7.5 – 13 μm
Temperature ranges		–20 °C ... 100 °C, 0 °C ... 250 °C,	–20 °C ... 100 °C, 0 °C ... 250 °C,	–20 °C ... 100 °C, 0 °C ... 250 °C,
		150 °C ... 900 °C, additional range:	150 °C ... 900 °C, additional range:	150 °C ... 900 °C, additional range:
		200 °C ... 1500 °C (option) *	200 °C ... 1500 °C (option) *	200 °C ... 1500 °C (option for PI 400)
Frame rate		120 Hz	128 Hz ***	80 Hz
Optics (FOV)		23° x 17° / f = 10 mm or	23° x 17° ** / f = 10 mm or	38° x 29° / f = 15 mm or
		6° x 5° / f = 35.5 mm or	6° x 5° / f = 35.5 mm or	13° x 10° / f = 41 mm or
		41° x 31° / f = 5.7 mm or	41° x 31° ** / f = 5.7 mm or	62° x 49° / f = 11 mm or
		72° x 52° / f = 3.3 mm	72° x 52° / f = 3.3 mm	80° x 56° / f = 7.7 mm
Thermal sensitivity		0.08 K with 23° x 17° FOV / F = 0.8	0.08 K with 23° x 17° FOV / F = 0.8	PI 400: 0.08 K
(NETD)		0.3 K with 6° x 5° FOV / F = 1.6	0.3 K with 6° x 5° FOV / F = 1.6	PI 450: 0.04 K with 38° x 29° FOV / F = 0.8
		0.1 K with 41° x 31° FOV and	0.1 K with 41° x 31° FOV and	PI 400: 0.08 K
		72° x 52° FOV / F = 1	72° x 52° FOV / F = 1	PI 450: 0.04 K with 62° x 49° FOV / F = 0.8
				PI 400: 0.1 K
				PI 450: 0.06 K with 13° x 10° FOV / F = 1.0
Option for visual camera		–	Optical resolution: 640 x 480 pixel	–
(only for BI-SPECTRAL			Frame rate: 32 Hz ***
camera)			Optics (FOV): PI 200: 54° x 40°,
			PI 230: 30° x 23°
Accuracy		±2 °C or ±2 %, whichever is greater	±2 °C or ±2 %, whichever is greater	±2 °C or ±2 %, whichever is greater
PC interface		USB 2.0	USB 2.0	USB 2.0
Process	Standard PIF	0 – 10 V input, digital input (max. 24 V),	0 – 10 V input, digital input (max. 24 V),	0 – 10 V input, digital input (max. 24 V),
interface		0 – 10 V output	0 – 10 V output	0 – 10 V output
(PIF)	Industrial PIF	2 x 0 – 10 V inputs, digital input (max. 24 V),		2 x 0 – 10 V inputs, digital input (max. 24 V),
	(option)	3 x 0 – 10 V outputs,		3 x 0 – 10 V outputs,
		3 x relay (0 – 30 V / 400 mA), fail-safe relay		3 x relay (0 – 30 V / 400 mA), fail-safe relay
Ambient temperature (TAmb)		0 °C ... 50 °C	0 °C ... 50 °C	PI 400: 0 °C ... 50 °C / PI 450: 0 °C ... 70 °C
Storage temperature		– 40 °C ... 70 °C	– 40 °C ... 70 °C	PI 400: – 40 °C ... 70 °C
				PI 450: – 40 °C ... 85 °C
Relative humidity		20 – 80 %, non-condensing	20 – 80 %, non-condensing	20 – 80 %, non-condensing
Housing (size / rating)		45 mm x 45 mm x 62 mm / IP 67 (NEMA 4)	45 mm x 45 mm x 62 mm / IP 67 (NEMA 4)	46 mm x 56 mm x 90 mm / IP 67 (NEMA 4)
Weight		195 g, incl. lens	215 g, incl. lens	320 g, incl. lens
Shock / vibration		Shock: IEC 60068-2-27 (25 g and 50 g)	Shock: IEC 60068-2-27 (25 g and 50 g)	Shock: IEC 60068-2-27 (25 g and 50 g)
		Vibration: IEC 60068-2-6 (sinus-shaped)/	Vibration: IEC 60068-2-6 (sinus-shaped)/	Vibration: IEC 60068-2-6 (sinus-shaped)/
		IEC 60068-2-64 (broadband noise)	IEC 60068-2-64 (broadband noise)	IEC 60068-2-64 (broadband noise)
Tripod mount		¼ -20 UNC	¼ - 20 UNC	¼ - 20 UNC
Voltage supply		via USB	via USB	via USB
Scope of supply (standard)		• USB camera with 1 lens	• USB camera with 1 lens and	• USB camera with 1 lens
		• USB cable (1 m)	BI-SPECTRAL technology	• USB cable (1 m)
		• Table-top tripod	• USB cable (1 m)	• Table-top tripod
		• PIF cable with connecting terminal strip (1 m)	• Table-top tripod	• PIF cable with connecting terminal strip (1 m)
		• optris® PI Connect software package	• Focus tool	• optris® PI Connect software package
		• Aluminium case	• PIF cable with connecting terminal strip (1 m)	• Aluminium case (PI400)
			• optris® PI Connect software package	• Robust hard shell case (PI 450)
			• Aluminium case

* The additional range is not available for 72° HFOV optics			** For ideal combination of IR and VIS image, a 41° HFOV lens is
			recommended (PI 200). For the PI 230, a 23° lens is recommended.

Base Model	LS	P20	P20	MS	MSPlus	MSPro
Type	LT	LT	1M / 2M / 05M	LT	LT	LT
Detector	Thermopile	Thermopile	Si / InGaAs	Thermopile	Thermopile	Thermopile
Spectral range	8 – 14 μm	8 – 14 μm	1M: 1.0 μm	8 – 14 μm	8 – 14 μm	8 – 14 μm
			2M: 1.6 μm
			05M: 525 nm
Temperature ranges	–35 °C ... 900 °C	0 °C ... 1300 °C	1M: 650 °C ... 1800 °C	–32 °C ... 420 °C	–32 °C ... 530 °C	–32 °C ... 760 °C
			2M: 385 °C ... 1600 °C
			05M:
			1000 °C ... 2000 °C
Temperature resolution	0,1 K	1 K	1 K	0.2 K	0.1 K	0.1 K
Optical resolution	75:01:00	120:01:00	1M / 2M: 300:1	20:01	20:01	40:01:00
			05M: 150:1
Switchable optics	■	–	–	–	–	–
Smallest spot	1 mm @ 62 mm	–	–	–	–	–
(CF optics)
Smallest spot	16 mm @ 1200 mm	100 mm @ 12 m	1M / 2M:	13 mm @ 140 mm	13 mm @ 140 mm	13 mm @ 260 mm
(SF optics)			12 mm @ 3.6 m
			05M: 24 mm @ 3.6 m
Sighting	Cross hair laser	Double laser	Double laser	Laser	Laser	Laser
Response time (90 %)	150 ms	300 ms	100 ms	300 ms	300 ms	300 ms
Accuracy	±0,75 % (100 to 900 °C)	±2 °C or ±1 %	±(0.3 % Tmeas +2 °C)	±1 °C or ±1 %	±1 °C or ±1 %	±1 °C or ±1 %
(at TAmb 23 ± 5 °C)	±0,75 °C (20 to 99,9 °C)
(at TAmb 23 ± 5 °C)	±1,5 °C (-20 to 19,9 °C)
	±1,5 °C (-20 to 19,9 °C)
	±2,5 °C (-35 to -20,1 °C)
PC interface	USB	USB	USB	USB	USB	USB
Software	■	■	■	■	■	■
Probe connection (t/c)	■	–	–	–	–	■
TAmb Min. / Max.	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C
Display	■	■	■	■	■	■
MAX / MIN / HOLD	■	■	■	–	■	■
HIGH / LOW alarm	■	■	■	–	■	■
Data logger / capacity	■ / 100	■ / 2000	■ / 2000	–	–	■ / 20
Emissivity	0.100 ... 1.100	0.100 ... 1.100	0.100 ... 1.100	0.95 fixed	0.100 ... 1.100	0.100 ... 1.100

THÔNG SỐ KỸ THUẬT

Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.

< SALE & TECHNICAL SUPPORT >

< PROJECT SUPPORT >
Email : sales@greentechvn.com

-------------------------------------------------------------------

Base Model	CS	CSmicro	CSmicro 2W	CSmicro 2W	CSmicro 2W
Type	LT	LT02 / LT15 / 3M	LT15 / LT15H / LT22H	hs LT	2M
Classification /	Single-piece sensor	Single-piece sensor with	Single-piece two-wire	Single-piece two-wire	Single-piece two-wire
special features	with smart LED display	electronics in cable and	sensor with electronics in	sensor with electronics in	sensor with electronics
	(self diagnostics,	smart LED display	cable; smart LED display	cable with high thermal	in applications;
	aiming support, alarm,	(aiming support, alarm,	(aiming support, alarm,	sensitivity; smart LED	smart LED display;
	temperature code)	temperature code)	temperature code)	display; temperature code	temperature code
Detector	Thermopile	Thermopile / 3M: Ext. InGaAs	Thermopile	Thermopile	InGaAs
Sensing head exchangeable	–	–	–	–	–
Head cable shortening	■	■ (behind electronics)	■ (behind electronics)	■ (behind electronics)	■ (behind electronics)
Thread (sensing head)	M12x1	M12x1	M12x1	M18x1	M12x1
Spectral range	8 – 14 μm	8 – 14 μm / 3M: 2.3 μm	8 – 14 μm	8 – 14 μm	1.6 μm
Temperature ranges	–40 °C ... 1030 °C	–40 °C ... 1030 °C	–40 °C ... 1030 °C	–20 °C ... 150 °C	2ML: 250 °C ... 800 °C
		3ML: 50 °C ... 350 °C			2MH: 385 °C ... 1600 °C
		3MH: 100 °C ... 600 °C
Temperature resolution	0.1 K	0.1 K	0.1 K	0.025 K [>20 °C]	0.1 K
Optical resolution	15:01	LT02: 2:1 / LT15: 15:1 /	LT15: 15:1 / LT15H: 15:1 /	15:01	2ML: 40:1
		3ML: 22:1 / 3MH: 33:1	LT22H: 22:1		2MH: 75:1
Option: CF lens	■	■	■	■	■
Smallest spot (CF optics / add. CF lens)	0.8 mm @ 10 mm	LT02: 2.5 mm @ 23 mm	LT15: 0.8 mm @ 10 mm	0.8 mm @ 10 mm	2MH: 1.5 mm@110 mm
		LT15: 0.8 mm @ 10 mm	LT15H: 0.8 mm @ 10 mm		2ML: 2.7 mm@110 mm
		3M: 1.5 mm @ 10 mm	LT22H: 0.6 mm @ 10 mm
Smallest spot (SF optics)	7 mm	7 mm	7 mm	7 mm	7 mm
Sighting	LED aiming	LED aiming	LED aiming	LED aiming	LED aiming
Response time (90 %)	25 ms	30 ms	LT: 30 ms / LTH: 150 ms	150 ms	10 ms
Accuracy	±1.5 °C or ±1.5 %	±1.5 °C or ±1.5 %	±1.5 °C or ±1 %	±1 °C or ±1 %	±(0.3 % Tmeas +2 °C)
Outputs analog: 0 – 20 mA /	– / – / ■ / ■ / ■	– / – / ■ / ■ / –	– / ■ / – / – / –	– / ■ / – / – / –	– / ■ / – / – / –
4 – 20 mA / 0 – 5 V / 0 – 10 V / t/c (K/J)
Second analog output	–	–	–	–	–
Interfaces: USB / RS232 /	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –
RS485 / Profibus / Ethernet
Signal processing:	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
Peak / Valley / AVG / Advanced hold
TAmb Head min.	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
TAmb Head max.	80 °C	LT02 / LT15: 120 °C	LT15: 120 °C	75 °C	125 °C
		3M: 85 °C	LT15H / LT22H: 180 °C
TAmb Electronics max.	80 °C	80 °C	75 °C	75 °C	75 °C
Functional inputs / number	■ / 1	■ / 1	– / –	– / –	– / –
External emissivity adjustment	■ (via Vcc adjust)	■ (via Vcc adjust)	–	–	–
External background temperature control	■	■	–	–	–
Trigger input for reset of hold functions	■	■	–	–	–
Digital I/O pins / number	–	–	–	–	–
Simultaneous analog and digital output	–	–	■	■	■
Alarm output as an alternative to analog output	■	■	■	■	■
Additional alarm output / switching output	■	■	■	■	■
Voltage supply	5 – 30 V DC	5 – 30 V DC	5 – 30 V DC	5 – 30 V DC	5 – 30 V DC
Standard cable length	1 m	1 m	1 m	4 m	1 m
Cable length options	3 / 8 / 15 m	Options up to 9 m	Options up to 9 m	–	Options up to 9 m

CT	CTfast	CThot	CT	CT	CT	CT
LT02 / LT15 / LT22	LT15F / LT25F	LT02H / LT10H	1M / 2M	3M	G5	P7
Two-piece sensor with	Two-piece sensor with	Two-piece sensor for	Two-piece sensor for high	Two-piece sensor for low	Two-piece sensor for	Two-piece sensor for
separate electronic box	fast response time and	hot surroundings with	temp. meas. of metal	temp. meas. of metal	temp. meas. of glass	temp. meas. on plastic foils
incl. programming keys	separate electronic box	separate electronic box	with separate electronic	with separate electronic	with separate electronic	and glass with separate
and display	incl. programming keys	incl. programming keys	box incl. progr. keys and	box incl. progr. keys and	box incl. progr. keys and	electronic box incl. progr.
	and display	and display	display	display	display	keys and display
Thermopile	Thermopile	Thermopile	1M: Si / 2M: InGaAs	Extended InGaAs	Thermopile	Thermopile
■	–	–	■ [+CTlaser 1M/2M]	■ [+CTlaser 3M]	■	–
■ [–0.1 K/m]	■ [max. 3 m]	■ [–0.1 K/m]	■ [max. 3 m]	■	■ [–0.1 K/m]	–
M12x1	M12x1	M18x1	M12x1	M12x1	M12x1	M18x1
8 – 14 μm	8 – 14 μm	8 – 14 μm	1M: 1.0 μm / 2M: 1.6 μm	2.3 μm	5.0 μm	7.9 μm
LT02: –50 °C ... 600 °C	–50 °C ... 975 °C	–40 °C ... 975 °C	1ML: 485 °C ... 1050 °C	L: 50 °C ... 400 °C	L: 100 °C ... 1200 °C	0 °C ... 710 °C
LT15: –50 °C ... 600 °C			1MH: 650°C ... 1800 °C	H: 100 °C ... 600 °C	H: 250 °C ... 1650 °C
LT22: –50 °C ... 975 °C			1MH1: 800 °C ... 2200 °C	H1: 150 °C ... 1000 °C
			2ML: 250 °C ... 800 °C	H2: 200 °C ... 1500 °C
			2MH: 385 °C ... 1600 °C	H3: 250 °C ... 1800 °C
			2MH1: 490 °C ... 2000 °C
0.1 K	LT15F: 0.2 K	0.25 K	0.1 K	0.1 K	L: 0.1 K	0.5 K
	LT25F: 0.4 K				H: 0.2 K
LT02: 2:1 / LT15: 15:1 /	LT15F: 15:1	LT02H: 2:1	L: 40:1	L: 22:1 / H: 33:1 /	L: 10:1	10:01
LT22: 22:1	LT25F: 25:1	LT10H: 10:1	H: 75:1	H1–H3: 75:1	H: 20:1
■	■	■	■	■	–	–
LT02: 2.5 mm @ 23 mm	0.6 mm @ 10 mm	LT02H: 2.5 mm @ 23 mm	1.5 mm @ 110 mm	3.4 mm @ 110 mm	–	1.2 mm @ 10 mm
LT15: 0.8 mm @ 10 mm		LT10H: 1.2 mm @ 10 mm
LT22: 0.6 mm @ 10 mm
7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
–	–	–	–	–	–	–
150 ms	LT15F: 9 ms / LT25F: 6 ms	100 ms	1 ms	1 ms	L: 120 ms / H: 80 ms	150 ms
±1 °C or ±1 %	±2 °C or ±1 %	±1.5 °C or ±1 %	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±2 °C or ±1 %	±1.5 °C or ±1 %
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
■	■	■	–	–	■	■
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
LT02: 130 °C	120 °C	250 °C	1M: 100 °C	85 °C	85 °C	85 °C
LT15 / LT22: 180 °C			2M: 125 °C
85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	■ / 3
■	■	■	■	■	■	■
■	■	■	■	■	■	■
■	■	■	■	■	■	■
–	–	–	–	–	–	–
■	■	■	■	■	■	■
■	■	■	■	■	■	■
■	■	■	■	■	■	■
8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC
1 m	1 m	3 m	3 m	3 m	3 m	3 m
3 / 8 / 15 m	3 / 8 / 15 m	8 / 15 m	8 / 15 m	–	8 / 15 m	8 / 15 m

Base Model	CSlaser	CSlaser	CSlaser	CTlaser	CTlaser
Type	LT / hs LT	2M	G5HF	LT / LTF	05M
Classification /	Single-piece two-wire	Single-piece two-wire	Single-piece two-wire	Two-piece sensor with	Two-piece sensor with
special features	sensor with electronics	sensor with electronics	infrared thermometer	separate electronic	separate electronic
	in sensing head	in sensing head for	for temperature	box with fast response	box for high temp.
		measurement of metal	measurement of glass	time, incl. programming	measurement of liquid
				keys and display	metal, incl. programming
					keys and display
Detector	Thermopile	InGaAs	Thermopile	Thermopile	Si
Sensing head exchangeable	–	–	–	■	■
Head cable shortening	■	■	■	■ [max. 6 m]	■ [max. 6 m]
Thread (sensing head)	M48x1.5	M48x1.5	M48x1.5	M48x1.5	M48x1.5
Spectral range	8 – 14 μm	1.6 μm	5.0 μm	8 – 14 μm	0.525 μm
Temperature ranges	LT: –30 °C ... 1000 °C	L: 250 °C ... 800 °C	200 ... 1650 °C	–50 °C ... 975 °C	1000 °C ... 2000 °C
	hs LT: –20 °C ... 150 °C	H: 385 °C ... 1600 °C
Temperature resolution	LT: 0.1 K / hs LT: 0.025 K	0.1 K	0.1 K	LT: 0.1 K / LTF: 0.5 K	0.2 K
Optical resolution	50:01:00	300:01:00	45:01:00	LT: 75:1	150:01:00
				LTF: 50:1
Option: CF lens	–	–	–	–	–
Smallest spot (CF optics / add. CF lens)	1.4 mm @ 70 mm	0.5 mm @ 150 mm	1.6 mm @ 70 mm	LT: 0.9 mm @ 70 mm	–
				LTF: 1.4 mm @ 70 mm
Smallest spot (SF optics)	24 mm @ 1200 mm	3.7 mm @ 1100 mm	27 mm @ 1200 mm	LT: 16 mm @ 1200 mm	7.3 mm @ 1100 mm
				LTF: 24 mm @ 1200 mm
Sighting	Double laser	Double laser	Double laser	Double laser	Double laser
Response time (90 %)	150 ms	10 ms	30 ms	LT: 120 ms / LTF: 9 ms	1 ms
Accuracy	±1 °C or ±1 %	±(0.3 % Tmeas +2 °C)	±1% or ±1°C	LT: ±1 °C or ±1 %	±(0.3 % Tmeas +2 °C)
				LTF: ±1.5 °C or ±1.5 %
Outputs analog: 0 – 20 mA /	– / ■ / – / – / –	– / ■ / – / – / –	– / ■ / – / – / –	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
4 – 20 mA / 0 – 5 V / 0 – 10 V / t/c (K/J)
Second analog output	–	–	–	■	–
Interfaces:	■ / – / – / – / –	■ / – / – / – / –	■ / – / – / – / –	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
USB / RS232 / RS485 / Profibus / Ethernet
Signal processing:	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
Peak / Valley / AVG / Advanced hold
TAmb Head min.	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
TAmb Head max.	85 °C	85 °C	85 °C	85 °C	85 °C
TAmb Electronics max.	85 °C	85 °C	85 °C	85 °C	85 °C
Functional inputs / number	– / –	– / –	– / –	■ / 3	■ / 3
External emissivity adjustment	–	–	–	■	■
External background temperature control	–	–	–	■	■
Trigger input for reset of hold functions	–	–	–	■	■
Digital I/O pins / number	–	–	–	–	–
Simultaneous analog and digital output	■	■	■	■	■
Alarm output as alternative to analog output	■	■	■	■	■
Additional alarm output / switching output	■	■	■	■	■
Voltage supply	5 – 30 V DC	5 – 30 V DC	5 – 28 V DC	8 – 36 V DC	8 – 36 V DC
Standard cable length	3 m	3 m	3 m	3 m	3 m
Cable length options	8 / 15 m	8 / 15 m	3 m / 8 m / 15 m	8 / 15 m	8 / 15 m

CTlaser	CTlaser	CT XL	CTlaser	CTlaser	CTlaser	CTratio
1M / 2M	3M	3M	MT / F2 / F6	G5	P7	1M
Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Two-piece sensor with	Ratio pyrometer with
separate electronic	separate electronic	separate electronic box	separate electronic box	separate electronic box	separate electronic	separate electronic box
box for high temp.	box for low temp.	for laser applications,	incl. progr. keys and	for measurement of	box for measurement	for high temp. measure-
measurement of metal,	measurement of metal,	incl. programming keys	display for measurement:	glass, incl. programming	of plastic foils, incl.	ment of metal feat.
incl. programming keys	incl. programming keys	and display (no laser)	MT: through flames	keys and display	programming keys and	glass fiber cable and
and display	and display		F2: CO2 flame gas		display	laser, incl. programming
			F6: CO flame gas			keys and display
1M: Si / 2M: InGaAs	Extended InGaAs	Extended InGaAs	Thermopile	Thermopile	Thermopile	Si sandwich
■ [+CT 1M / 2M]	■ [+CT 3M]	–	■	■	■	–
■ [max. 6 m]	■ [max. 6 m]	■	■ [max. 6 m]	■ [max. 6 m]	■ [max. 6 m]	–
M48x1.5	M48x1.5	M30x1	M48x1.5	M48x1.5	M48x1.5	M18x1
1M: 1.0 μm	2.3 μm	2.3 μm	MT: 3.9 μm / F2: 4.24 μm /	5.0 μm	7.9 μm	0.7 – 1.1 μm
2M: 1.6 μm			F6: 4.64 μm
1ML: 485 °C ... 1050 °C	L: 50 °C ... 400 °C	H: 100 °C ... 600 °C	200 °C ... 1650 °C	L: 100 °C ... 1200 °C	0 °C ... 710 °C	700 °C ... 1800 °C
1MH: 650 °C ... 1800 °C	H: 100 °C ... 600 °C	H1: 150 °C ... 1000 °C		H: 250 °C ... 1650 °C
1MH1: 800 °C ... 2200 °C	H1: 150 °C ... 1000 °C	H2: 200 °C ... 1500 °C		HF: 200 °C ... 1650 °C
2ML: 250 °C ... 800 °C	H2: 200 °C ... 1500 °C	H3: 250 °C ... 1800 °C
2MH: 385 °C ... 1600 °C	H3: 250 °C ... 1800 °C
2MH1: 490 °C ... 2000 °C
0.1 K	0.1 K	0.1 K	0.1 K	L: 0.1 K / H,HF: 0.2 K	0.5 K	0.1 K (> 900 °C)
L: 150:1	L: 60:1 / H: 100:1 /	H: 100:1	45:01:00	L/HF: 45:1	45:01:00	40:01:00
H: 300:1	H1-H3: 300:1	H1-H3: 300:1		H: 70:1
–	–	–	–	–	–	–
0.5 mm @ 150 mm	0.5 mm @ 150 mm	0.5 mm @ 150 mm	1.6 mm @ 70 mm	1 mm @ 70 mm	1.6 mm @ 70 mm	7.7 mm @ 305 mm
3.7 mm @ 1100 mm	11 mm @ 1100 mm	11 mm @ 1100 mm	27 mm @ 1200 mm	17 mm @ 1200 mm	27 mm @ 1200 mm	31.3 mm @ 1143 mm
Double laser	Double laser	–	Double laser	Double laser	Double laser	Laser
1 ms	1 ms	1 ms	10 ms	L: 120 ms / H: 80 ms	150 ms	5 ms
				HF: 10 ms
±(0,3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±1.5 °C or ±1 %	±1.5 °C or ±1 %	±1.5 °C or ±1 %	±(0.5 % Tmeas +1 °C)
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / –
–	–	–	■	■	■	–
■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■	– / – / – / – / –
■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C	–20 °C
85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	250 °C
85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	■ / 3	– / –
■	■	■	■	■	■	–
■	■	■	■	■	■	–
■	■	■	■	■	■	■ (via I/O pins)
–	–	–	–	–	–	■ / 2
■	■	■	■	■	■	■
■	■	■	■	■	■	■
■	■	■	■	■	■	■ (via I/O pins)
8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC	8 – 36 V DC
3 m	3 m	3 m	3 m	3 m	3 m	3 m
8 / 15 m	8 / 15 m	–	8 / 15 m	8 / 15 m	8 / 15 m	6 / 10 / 15 / 22 m

Base Modell	CSvideo	CTvideo	CTvideo
Type	2M (L / H)	1M / 2M (L / H)	3M (L / H)
Classification /	Single-piece two wire sensor with	Two-piece sensor with electronic box for	Two-piece sensor with electronic box for
special features	electronics in sensing head, video camera	high temperature measurement of metals,	low temperature measurement of metals,
	and cross hair laser for measuring metal	video camera and cross hair laser	video camera and cross hair laser
Detector	InGaAs	1M: Si / 2M: InGaAs	Extended InGaAs
Sensing head exchangeable	–	[+CT 1M / 2M]	[+CT 3M]
Head cable shortening	■	[max. 6 m]	[max. 6 m]
Thread (sensing head)	M48x1.5	M48x1.5	M48x1.5
Spectral range	1.6 μm	1M: 1.0 μm / 2M: 1.6 μm	2.3 μm
Temperature ranges	250 °C ... 800 °C (2ML)	485 °C ... 1050 °C (1ML)	50 °C ... 400 °C (3ML)
(scalable via software)	385 °C ... 1600 °C (2MH)	650 °C ... 1800 °C (1MH)	100 °C ... 600 °C (3MH)
		800 °C ... 2200 °C (1MH1)	150 °C ... 1000 °C (3MH1) 1)
		250 °C ... 800 °C (2ML)	200 °C ... 1500 °C (3MH2) 1)
		385 °C ... 1600 °C (2MH)	250 °C ... 1800 °C (3MH3) 1)
		490 °C ... 2000 °C (2MH1)
Temperature resolution	0.1 K	ML: 0.1 K / MH: 0.2 K	0.1 K
Optical resolution	2MH: 300:1 / 2ML: 150:1	L: 150:1 / H: 300:1	L: 60:1 / H: 100:1 / H1 – H3: 300:1
Smallest spot (CF optics)	2ML: 0.6 mm @ 90 mm (CF)	1ML/2ML: 0.6 mm @ 90 mm (CF)	3ML: 1.5 mm @ 90 mm (CF)
CF vario optics: focusable from	2MH: 0.3 mm @ 90 mm (CF)	1MH-H1/ 2MH-H1: 0.3 mm @ 90 mm (CF)	3MH: 0.9 mm @ 90 mm (CF)
90 mm to 250 mm			3MH1 – H3: 0.3 mm @ 90 mm (CF)
Smallest spot (SF optics)	2ML: 1.3 mm @ 200 mm (SF)	1ML/2ML: 1.3 mm @ 200 mm (SF)	3MH: 3.3 mm @ 200 mm (SF)
SF vario optics: focusable from	2MH: 0.7 mm @ 200 mm (SF)	1MH-H1/ 2MH-H1: 0.7 mm @ 200 mm (SF)	3MH: 2.0 mm @ 200 mm (SF)
200 mm to infinity			3MH1 – H3: 0.7 mm @ 200 mm (SF)
Sighting	video camera and cross hair laser	video camera and cross hair laser	video camera and cross hair laser
Response time (90 %)	10 ms	1 ms	1 ms
Accuracy	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)	±(0.3 % Tmeas +2 °C)
Outputs analog: 0 – 20 mA /	– / ■ / – / – / –	■ / ■ / ■ / ■ / ■	■ / ■ / ■ / ■ / ■
4 – 20 mA / 0 – 5 V / 0 – 10 V / t/c (K/J)
Interfaces: USB / RS232 /	■ / – / – / – / ■	■ / – / – / – / ■	■ / – / – / – / ■
RS485 / Profibus / Ethernet
Signal processing:	■ / ■ / ■ / ■	■ / ■ / ■ / ■	■ / ■ / ■ / ■
Peak / Valley / AVG / Advanced hold
TAmb Head min.	–20 °C	–20 °C	–20 °C
TAmb Head max.	70 °C	85 °C	85 °C
TAmb Electronics max.	70 °C	85 °C	85 °C
Functional inputs / number	– / –	■ / 3	■ / 3
External emissivity adjustment	–	■	■
External background temperature	–	■	■
control
Trigger input for reset of hold	–	■	■
functions
Simultaneous analog and digital	■	■	■
output
Alarm output as an alternative to	■	■	■
analog output
Additional alarm output	0 – 30 V / 500 mA (open-collector)	24 V / 50 mA (open-collector)	24 V / 50 mA (open-collector)
Voltage supply	5 – 28 V DC	8 – 36 V DC	8 – 36 V DC
Standard cable length	3 m	3 m	3 m
Cable length options	8 / 15 m	5 / 10 m	5 / 10 m

Base Model		PI 160	PI 200 / PI 230	PI 400 / PI 450
Type		IR	BI-SPECTRAL	IR
Detector		FPA, uncooled (25 μm x 25 μm)	FPA, uncooled (25 μm x 25 μm)	FPA, uncooled (25 μm x 25 μm)
Optical resolution		160 x 120 pixel	160 x 120 pixel	382 x 288 pixel
Spectral range		7.5 – 13 μm	7.5 – 13 μm	7.5 – 13 μm
Temperature ranges		–20 °C ... 100 °C, 0 °C ... 250 °C,	–20 °C ... 100 °C, 0 °C ... 250 °C,	–20 °C ... 100 °C, 0 °C ... 250 °C,
		150 °C ... 900 °C, additional range:	150 °C ... 900 °C, additional range:	150 °C ... 900 °C, additional range:
		200 °C ... 1500 °C (option) *	200 °C ... 1500 °C (option) *	200 °C ... 1500 °C (option for PI 400)
Frame rate		120 Hz	128 Hz ***	80 Hz
Optics (FOV)		23° x 17° / f = 10 mm or	23° x 17° ** / f = 10 mm or	38° x 29° / f = 15 mm or
		6° x 5° / f = 35.5 mm or	6° x 5° / f = 35.5 mm or	13° x 10° / f = 41 mm or
		41° x 31° / f = 5.7 mm or	41° x 31° ** / f = 5.7 mm or	62° x 49° / f = 11 mm or
		72° x 52° / f = 3.3 mm	72° x 52° / f = 3.3 mm	80° x 56° / f = 7.7 mm
Thermal sensitivity		0.08 K with 23° x 17° FOV / F = 0.8	0.08 K with 23° x 17° FOV / F = 0.8	PI 400: 0.08 K
(NETD)		0.3 K with 6° x 5° FOV / F = 1.6	0.3 K with 6° x 5° FOV / F = 1.6	PI 450: 0.04 K with 38° x 29° FOV / F = 0.8
		0.1 K with 41° x 31° FOV and	0.1 K with 41° x 31° FOV and	PI 400: 0.08 K
		72° x 52° FOV / F = 1	72° x 52° FOV / F = 1	PI 450: 0.04 K with 62° x 49° FOV / F = 0.8
				PI 400: 0.1 K
				PI 450: 0.06 K with 13° x 10° FOV / F = 1.0
Option for visual camera		–	Optical resolution: 640 x 480 pixel	–
(only for BI-SPECTRAL			Frame rate: 32 Hz ***
camera)			Optics (FOV): PI 200: 54° x 40°,
			PI 230: 30° x 23°
Accuracy		±2 °C or ±2 %, whichever is greater	±2 °C or ±2 %, whichever is greater	±2 °C or ±2 %, whichever is greater
PC interface		USB 2.0	USB 2.0	USB 2.0
Process	Standard PIF	0 – 10 V input, digital input (max. 24 V),	0 – 10 V input, digital input (max. 24 V),	0 – 10 V input, digital input (max. 24 V),
interface		0 – 10 V output	0 – 10 V output	0 – 10 V output
(PIF)	Industrial PIF	2 x 0 – 10 V inputs, digital input (max. 24 V),		2 x 0 – 10 V inputs, digital input (max. 24 V),
	(option)	3 x 0 – 10 V outputs,		3 x 0 – 10 V outputs,
		3 x relay (0 – 30 V / 400 mA), fail-safe relay		3 x relay (0 – 30 V / 400 mA), fail-safe relay
Ambient temperature (TAmb)		0 °C ... 50 °C	0 °C ... 50 °C	PI 400: 0 °C ... 50 °C / PI 450: 0 °C ... 70 °C
Storage temperature		– 40 °C ... 70 °C	– 40 °C ... 70 °C	PI 400: – 40 °C ... 70 °C
				PI 450: – 40 °C ... 85 °C
Relative humidity		20 – 80 %, non-condensing	20 – 80 %, non-condensing	20 – 80 %, non-condensing
Housing (size / rating)		45 mm x 45 mm x 62 mm / IP 67 (NEMA 4)	45 mm x 45 mm x 62 mm / IP 67 (NEMA 4)	46 mm x 56 mm x 90 mm / IP 67 (NEMA 4)
Weight		195 g, incl. lens	215 g, incl. lens	320 g, incl. lens
Shock / vibration		Shock: IEC 60068-2-27 (25 g and 50 g)	Shock: IEC 60068-2-27 (25 g and 50 g)	Shock: IEC 60068-2-27 (25 g and 50 g)
		Vibration: IEC 60068-2-6 (sinus-shaped)/	Vibration: IEC 60068-2-6 (sinus-shaped)/	Vibration: IEC 60068-2-6 (sinus-shaped)/
		IEC 60068-2-64 (broadband noise)	IEC 60068-2-64 (broadband noise)	IEC 60068-2-64 (broadband noise)
Tripod mount		¼ -20 UNC	¼ - 20 UNC	¼ - 20 UNC
Voltage supply		via USB	via USB	via USB
Scope of supply (standard)		• USB camera with 1 lens	• USB camera with 1 lens and	• USB camera with 1 lens
		• USB cable (1 m)	BI-SPECTRAL technology	• USB cable (1 m)
		• Table-top tripod	• USB cable (1 m)	• Table-top tripod
		• PIF cable with connecting terminal strip (1 m)	• Table-top tripod	• PIF cable with connecting terminal strip (1 m)
		• optris® PI Connect software package	• Focus tool	• optris® PI Connect software package
		• Aluminium case	• PIF cable with connecting terminal strip (1 m)	• Aluminium case (PI400)
			• optris® PI Connect software package	• Robust hard shell case (PI 450)
			• Aluminium case

* The additional range is not available for 72° HFOV optics			** For ideal combination of IR and VIS image, a 41° HFOV lens is
			recommended (PI 200). For the PI 230, a 23° lens is recommended.

Base Model	LS	P20	P20	MS	MSPlus	MSPro
Type	LT	LT	1M / 2M / 05M	LT	LT	LT
Detector	Thermopile	Thermopile	Si / InGaAs	Thermopile	Thermopile	Thermopile
Spectral range	8 – 14 μm	8 – 14 μm	1M: 1.0 μm	8 – 14 μm	8 – 14 μm	8 – 14 μm
			2M: 1.6 μm
			05M: 525 nm
Temperature ranges	–35 °C ... 900 °C	0 °C ... 1300 °C	1M: 650 °C ... 1800 °C	–32 °C ... 420 °C	–32 °C ... 530 °C	–32 °C ... 760 °C
			2M: 385 °C ... 1600 °C
			05M:
			1000 °C ... 2000 °C
Temperature resolution	0,1 K	1 K	1 K	0.2 K	0.1 K	0.1 K
Optical resolution	75:01:00	120:01:00	1M / 2M: 300:1	20:01	20:01	40:01:00
			05M: 150:1
Switchable optics	■	–	–	–	–	–
Smallest spot	1 mm @ 62 mm	–	–	–	–	–
(CF optics)
Smallest spot	16 mm @ 1200 mm	100 mm @ 12 m	1M / 2M:	13 mm @ 140 mm	13 mm @ 140 mm	13 mm @ 260 mm
(SF optics)			12 mm @ 3.6 m
			05M: 24 mm @ 3.6 m
Sighting	Cross hair laser	Double laser	Double laser	Laser	Laser	Laser
Response time (90 %)	150 ms	300 ms	100 ms	300 ms	300 ms	300 ms
Accuracy	±0,75 % (100 to 900 °C)	±2 °C or ±1 %	±(0.3 % Tmeas +2 °C)	±1 °C or ±1 %	±1 °C or ±1 %	±1 °C or ±1 %
(at TAmb 23 ± 5 °C)	±0,75 °C (20 to 99,9 °C)
(at TAmb 23 ± 5 °C)	±1,5 °C (-20 to 19,9 °C)
	±1,5 °C (-20 to 19,9 °C)
	±2,5 °C (-35 to -20,1 °C)
PC interface	USB	USB	USB	USB	USB	USB
Software	■	■	■	■	■	■
Probe connection (t/c)	■	–	–	–	–	■
TAmb Min. / Max.	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C	0 °C / 50 °C
Display	■	■	■	■	■	■
MAX / MIN / HOLD	■	■	■	–	■	■
HIGH / LOW alarm	■	■	■	–	■	■
Data logger / capacity	■ / 100	■ / 2000	■ / 2000	–	–	■ / 20
Emissivity	0.100 ... 1.100	0.100 ... 1.100	0.100 ... 1.100	0.95 fixed	0.100 ... 1.100	0.100 ... 1.100
