Hardware feature
- 1U Design-Occupies only 1U of the rack space
- Fit for standard 19” rack mounting
- Standard VGA connector-Connect to a server or KVM switch via a standard VGA connector
Management Way
- Convenient computer switching via front panel pushbuttons, OSD menu and mouse
- Auto scan feature for monitoring user-selected computers
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
High Resolution
- Resolution is up to 2048×1536;DDC2B
Cascade Feature

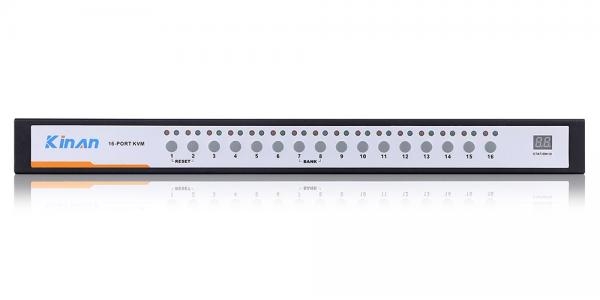

- Directly access and control up to 16 servers with single XM0116
- By cascading to 31 additional switches, as many as 512 computers can be controlled from single XM0116
Security
- Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
