| Ordering details | |
| Product type description | TS 235-11Z - |
| Article number | 101165678 |
| EAN code | 4030661211039 |
| eCl@ss | 27-27-26-01 |
| Approval | |
| Approval |
USA/CAN
CCC
|
| Classification | |
| Standards | ISO 13849-1 |
| B10d Opener (NC) | 20.000.000 |
| Mission time | 20 Years |
| notice |
|
| Global Properties | |
| Product name | T 236 Plunger S |
| Standards | IEC 60947-5-1, ISO 13849-1, BG-GS-ET-15 |
| Compliance with the Directives (Y/N)
| Yes |
| Suitable for safety functions (Y/N) | Yes |
| Actuator type | B to EN 50047 |
| Materials | |
| - Material of the housings | Zink |
| - Material of the contacts | Silver |
| Housing coating | painted |
| Housing construction form | Norm construction design |
| Weight | 145 g |
| Mechanical data | |
| Design of electrical connection | Screw connection |
| Cable section | |
| - Min. Cable section | 0,75 mm² |
| - Max. Cable section | 2.5 mm² |
| Mechanical life | 20.000.000 operations |
| Switching frequency | max. 5000 /h |
| notice | All indications about the cable section are including the conductor ferrules. |
| Design of actuating element | Plunger |
| Actuating force | min. 9 N |
| Bounce duration | in accordance with actuating speed |
| Switchover time | in accordance with actuating speed |
| Positive break force | 19 N |
| Actuating speed for vertical actuation | |
| - Min. Actuating speed | 60 mm/min |
| - Max. Actuating speed | 1 m/s |
| Ambient conditions | |
| Ambient temperature | |
| - Min. environmental temperature | −30 °C |
| - Max. environmental temperature | +80 °C |
| Protection class | IP67 |
| Electrical data | |
| Design of control element | Normally open contact (NO), Opener (NC) |
| Switching principle | Creep circuit element |
| - positive break NC contact
| |
| Number of auxiliary contacts | 1 piece |
| Number of safety contacts | 1 piece |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated insulation voltage Ui | 500 V |
| Thermal test current Ithe | 10 A |
| Utilisation category | AC-15: 230 V / 4 A,DC-13: 24 V / 1 A |
| Required rated short-circuit current | 1000 A |
| Max. fuse rating | 6 A gG D-fuse |
| ATEX | |
| Explosion protection categories for gases | None |
| Explosion protected category for dusts | None |
| Dimensions | |
| Dimensions of the sensor | |
| - Width of sensor | 30 mm |
| - Height of sensor | 75.5 mm |
| - Length of sensor | 30 mm |
| Diagram | |
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact | |
| Switch travel diagram | |
Notes Switch travel diagram
Contact closed
Contact open
Setting range
Break point
Positive opening sequence/- angleVS adjustable range of NO contactVÖ adjustable range of NC contactN after travel | |
| Ordering suffix | |
| The applicable ordering suffix is added at the end of the part number of the safety switch.Order example: TS 235-11Z-1637 | |
| ...-1637 | 0,3 µm gold-plated contacts |
| ...-NPT | Cable entry NPT 1/2“ |
| ...-ST
| M12 connector with A-codingRated impulse withstand voltage Uimp: 0,8 kVRated insulation voltage Ui: 50 VRated operating voltage Ue: 50 VOperating current Ie: 4 ACaution! The versions with connector may only be used in PELV circuits to EN 60204-1. |
| ...-2310
| M12 connector with B-codingRated impulse withstand voltage Uimp: 0,8 kVRated insulation voltage Ui: 50 VRated operating voltage Ue: 50 VOperating current Ie: 4 ACaution! The versions with connector may only be used in PELV circuits to EN 60204-1. |
| ...-2574 | $missingName$ |
| K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, D-42279 WuppertalThe data and values have been checked throroughly. Technical modifications and errors excepted.Generiert am 11.06.2017 - 13:41:39h Kasbase 3.2.6.F.64I | |

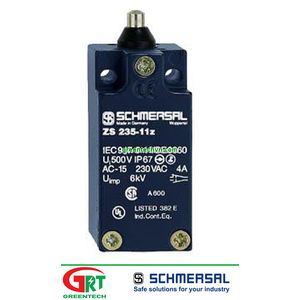

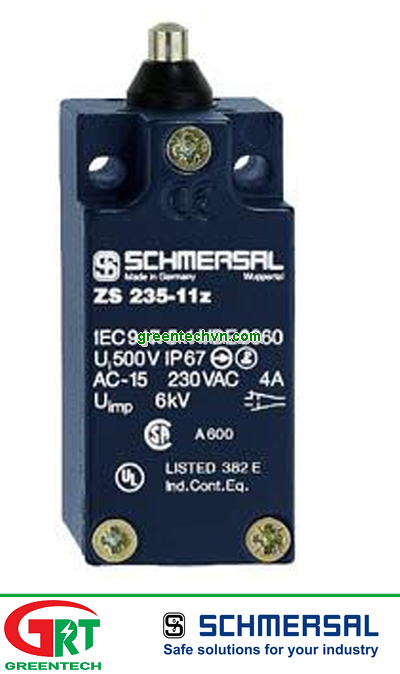

TS235-11Z-2482 | Schmersal | Công tắc hành trình | Công tắc giới hạn vị trí | Schmersal Việt Nam
Mã SP: TS235-11Z-2482
Giá bán : Vui lòng gọi
Số lượng:
• Metal enclosure
• Wide range of alternative actuators
• Good resistance to oil and petroleum spirit
• 30 mm x 63,5 mm x 30 mm
• Actuator heads can be repositioned by 4 x 90°
• Mounting details to EN 50047
• 1 Cable entry M 20 x 1.5
Thông tin người bán
Công ty TNHH Thương mại dịch vụ GREENTECH
33 Đường DC5, Phường Sơn Kỳ, Quận Tân Phú, Tp.HCM
Hotline: 0935 04 1313
Email: sales@greentechvn.com
CHI TIẾT
THÔNG SỐ KỸ THUẬT
| LIMITSWITCHCông tắc giới hạn | ui 500V, ip 65, uimp 6KV | ZS 335-11Z | SCHMERSAL |
| PNEUMATIC ON/OFF VALVE Cơ cấu đóng/mở van khí nén | Pressure Conection: G1/8" 90⁰ Rotation | VT522 | AirTorque |
| COALESCING FILTER Bộ lọc hệ thống CEMS | Pmax= 4 bar, Nhiệt độ môi trường 150 độ C, trọng lượng 570g | Model: 7F4759 | ASE |
| Pressure Control valve Bộ điều khiển áp suất khí điều khiển van | Pmax=784 kpa, P làm việc=40-60 kpa, nhiệt độ 0 đến 60 độ C, trọng lương 500 g | Model: RU5-435 | ASE |
| BELT TRACKING SWITCH Công tắc chuyển đổi hệ thống nhiên liệu | Input: AC230V, NO | ELAP-20N | MATSUSHIMA |
| TRAVEL LIMIT SWITCH Công tắc giới hạn | 15-34 VDC/J=200 mA, EN 50 008-A23 sn 15mm | 3RG40 24-0JB00- | Siemens |
| TRAVEL LIMIT SWITCH Công tắc giới hạn | AC 15 230V, 3A IP66,67 | 3SE5 112-0CH51 | Siemens |
| Limit switch Công tắc giới hạn | AC 15 230V, 3A IP66,67 | 3SE5 112-0CT011 | Siemens |
| Under speed Cảm biến giới hạn tốc độ | 250VAC/5A. Speed 1399 RPM | ESRDP-200KN | MASUSHIMA |
| Trip wire switch | 10A-125/250 VAC,1/2A- 125VDC | ELAW-31 | MASUSHIMA |
| LIMIT SWITCH Công tắc giới hạn | AC 15, NC | T2L-035-11Z-M20 | SCHMERSAL |
| POSITION LIMIT SWITCH Cảm biến giới hạn | 120VA/W, max 3A 250VAC/DC | BN2011RZM16 | SCHMERSAL |
| BELT TRACKING SWITCH Công tắc giới hạn | TM250-11Z-242 | SCHMERSAL | |
| Travel limitswitch Công tắc giới hạn | ui 500V, ip 65, uimp 6KV, AC15 | Z4V7H335-11Z-2272/2654 | SCHMERSAL |
