Thông số kỹ thuật của van rũ bụi ANT-Z-25
| Model | ANT-Z-25 |
| Size | 1'' |
| Kiểu kết nối | Ren trong |
| Điện áp cuộn coil | 220AVC / 24DVC / 110AVC |
| Tiêu chuẩn bảo vệ | IP65 |
| Phụ kiện thay thế | Cuộn coil, ty dẫn hướng cuộn coil, màng van |
| Model | Port Size (inch) | Port Size (mm) | Diaphragm Number | Body Material | Working Pressure Range | Coil Voltage |
| ANT-Z-20 | 3/4'' | 27mm | 1 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-ZM-20 | 3/4'' | 27mm | 1 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Z-25 | 1'' | 34mm | 1 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-ZM-25 | 1'' | 34mm | 1 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Y-25 | 1'' | 34mm | 1 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Z-40S | 1-1/2'' | 48mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-ZM-40S | 1-1/2'' | 48mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Y-40S | 1-1/2'' | 48mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Z-50S | 2'' | 60mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Y-50S | 2'' | 60mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Z-62S | 2-1/2'' | 73mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Y-62S | 2-1/2'' | 73mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Z-76S | 3'' | 90mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |
| ANT-Y-76S | 3'' | 90mm | 2 | Aluminum Alloy | 0.1 to 0.8 MPa (Recommended Pressure 0.2-0.6MPa) | 220VAC / 110VAC / 24VDC |

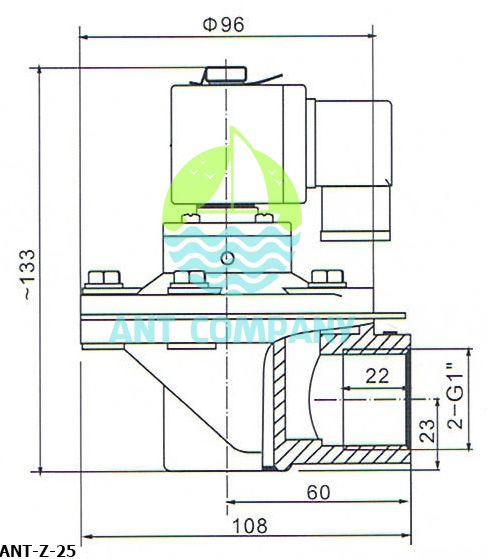

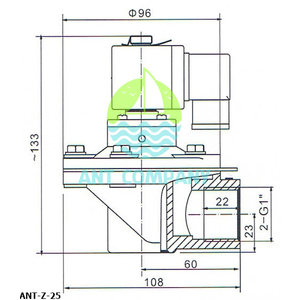

Kích thước của van rũ bụi ANT-Z-25
