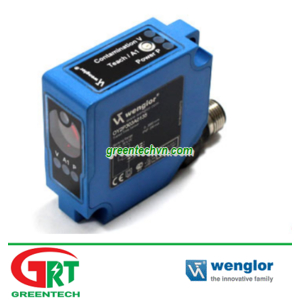

Manufacturer: WENGLOR
Type: PHOTOELECTRIC DISTANCE SENSOR, HIGH PERFORMANCE
Model: OY2P303A0135
Sensing range: 0 … 3000 mm
Adjustable range: 200 … 3000 mm
Operating Voltage: 10 … 30 V DC
Switching current: 200 mA
Switching frequency: 1000 Hz
Electrical design: PNP
Switching output: Antivalent Normally open/Normally closed
Light source: Red laser
Connector type: M12 Connector, 5-pin
Protection class: III
Enclosure rating: IP68
Ambient Operating temperature: -40 … 60°C
Dimensions: 50 x 20 x 50 mm
Housing material: Plastic
Sensing face material: PMMA
