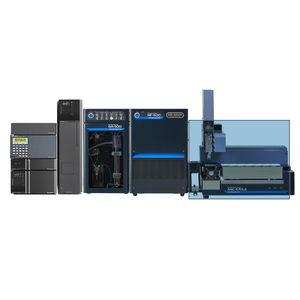

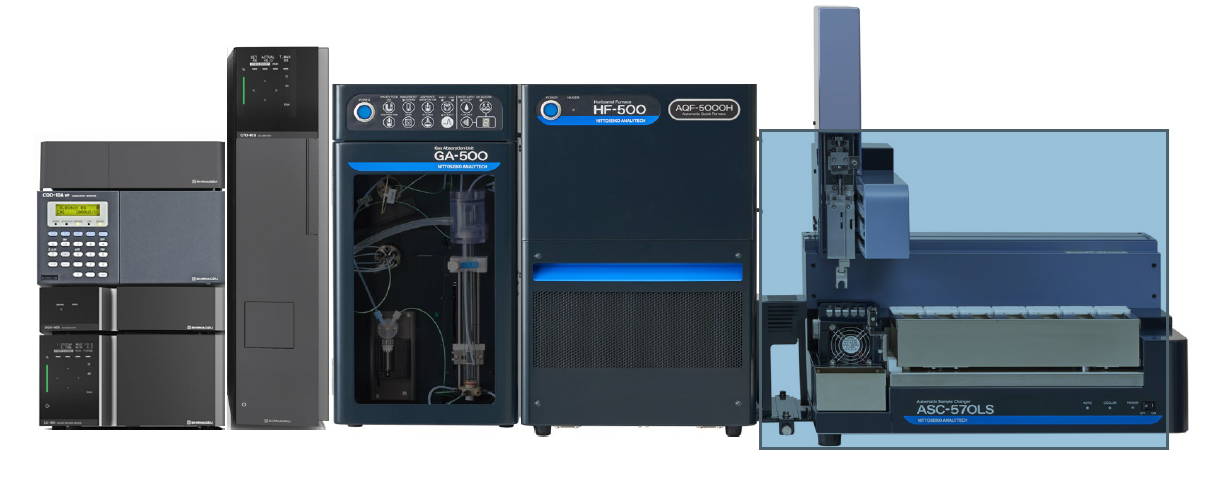

AQF-5000H Automatic Quick Furnace for Combustion Ion Chromatography
Advanced, developed to the fourth generation Powerful fast solution for Sulfur and Halogen analysis , (Fluoride, Chloride, Bromide and Iodide)
Features
PARALLEL OPERATION FOR HIGH THROUGHPUT
Parallel operation of sample preparation (combustion) and ion chromatography (quantification) enables fast cycling times and increases sample throughput (or number of replicates).
Standard Specification
| Sample introduction | Automated boat control |
|---|---|
| Sample | Solid, Liquid |
| Amount |
1-150mg (solid), 5-100µL (Liquid) |
| Sample pyrolysis | High purity quartz tube (ceramic option) |
| Ekectric furnace |
Max. 1,100℃, Openable electric furnace, 2 heating zones (Temperature individually controlled) |
| Injection to IC | Loop 100µL (5, 20, 50, 200, 500, 1000µL option) |
| Tubing material | Fluoro-resin (low blank), PEEK |
| Signal output | Contact signal to start Ion Chromatograph) |
| Gas |
Argon (purity 99.98% or higher, 0.3±0.1MPa) Oxgen (purity 99.98% or higher, 0.3±0.1MPa) |
| Power supply |
AC100-240VAC, 50/60Hz |
Options
Automatic Sample Changer Model ASC-570LS for Solid and Liquid samples
ASC570LS can automatically measure each measurement target by switching between liquid measurement mode and solid measurement mode.
Automatic Boat Controller Model ABC-500
Manually inject liquid samples and set up boats.
The boat is introduced into the horizontal furnace
according to a set program.
Syringe Pump SP-C for calibration
It can be prepared calibration curve solutions of different concentrations from one calibration curve solution by automatic dilution.
Absorption Solution Collector AC-500
Automation of sample decomposition, gas absorption and preparative isolation for absorption solutions.
