Card ghi hình Magewell USB Capture HDMI Plus 4K live stream video Facebook, youtube

(0 đánh giá)

Mã SP: Magewell USB Capture
11,900,000 VND

Xuất xứ :Magewell

Nơi rao bán :Toàn quốc

Tình trạng :Mới 100%

Ngày cập nhật :04-10-2020 14:21:58

Bảo hành :12 tháng

Capture Device with Built-In Auto Scaler Supports Input Resolutions up to 4K Scales to 2K for Recording/Streaming Loop-Through HDMI Port for Monitoring

Số lượng:
Mua ngay Thêm vào giỏ hàng

LIÊN HỆ VỚI NGƯỜI BÁN

VNM CO.,LTD

897 Lê Thanh Nghị - TP. Hải Dương

0946112556

product.vnm@gmail.com

http://dienmayviet.com.vn

Ghi chú: GianHangVN không trực tiếp bán sản phẩm, vui lòng liên hệ trực tiếp với người bán bên trên.

>> Hướng dẫn đặt hàng trực tuyến

Giá có thể thay đổi chưa kịp cập nhật, xin vui lòng liên hệ trực tiếp để biết giá

Tên thiết bị: Card ghi hình Magewell USB Capture HDMI Plus 4K live stream video Facebook, youtube...

Model:   Magewell USB Capture HDMI Plus 4K

Thương hiệu:  Magewell

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Hình ảnh thiết bị như hình chụp

  • Capture Device with Built-In Auto Scaler
  • Supports Input Resolutions up to 4K
  • Scales to 2K for Recording/Streaming
  • Loop-Through HDMI Port for Monitoring

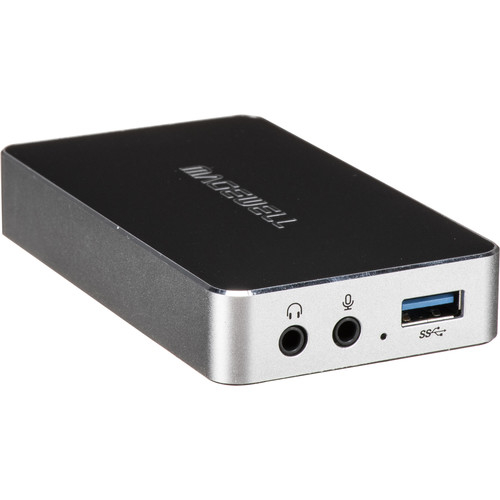

The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.

The USB Capture HDMI Plus is compatible with Windows, Mac, and Linux. It works plug-and-play and can be operated 24 hours a day, 7 days a week.

HDMI Features

  • 297 MHz HDMI receiver
  • Support for up to 4096 x 2160 4:4:4/4:2:2 input at 30 fps or 4:2:0 at 60 fps input signals
  • For 4:2:0 input signals, the horizontal and vertical resolution are reduced to 1/2 for capturing
  • For 4:4:4/4:2:2 input at more than 170 MHz, the horizontal resolution is reduced to 1/2 for capturing
  • Adaptive HDMI equalizer support for cables lengths up to 98 ft
  • Customized EDID support
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 2 channel ISC60958 audio streams
  • Support for extraction of audio formation information and channel status data, video timing information, 3D format information
  • Support for Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D modes

Analog Audio Features

  • Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo jack
  • Capture of analog audio via 3.5mm microphone interface
  • Integrate the functions of a USB audio card
  • Playback audio via 3.5mm headphones interface
  • Support for recording the playback audio of the computer

Video Processing Features

  • Video processing pipelines with 160 megapixels processing bandwidth
  • Video cropping
  • Video scaling
  • Video deinterlacing (Weave, Blend Top & Bottom Field, Top Field Only, Bottom Field Only)
  • Auto or manual selection of input and output aspect ratios
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of output color format, quantization range, and saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full, and "Extended Gamut" saturation range
  • Video frame rate conversion
  • Vertical flip and mirror

Magewell 32040 Specs

Host Connection USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)
Input
Video Input Connectors 1 x HDMI (HDMI 1.4)
1 x DVI-D DL
Input Video Format HDMI (4:4:4/4:2:2)
DCI 4K: 30 fps
HDMI (4:2:0)
DCI 4K: 60 fps
Audio Input Connectors 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone
Output
Audio Output Connectors 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone
Hardware
OS Compatibility Windows 7 or Later
Linux
macOS 10.9 or Later
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 158°F / -20 to 70°C
General
Dimensions 3.86 x 2.24 x 0.67" / 98.1 x 56.8 x 17 mm
Warranty Length Limited 3-Year Warranty
Packaging Info
Package Weight 0.44 lb
Box Dimensions (LxWxH) 5.4 x 5.25 x 1"
