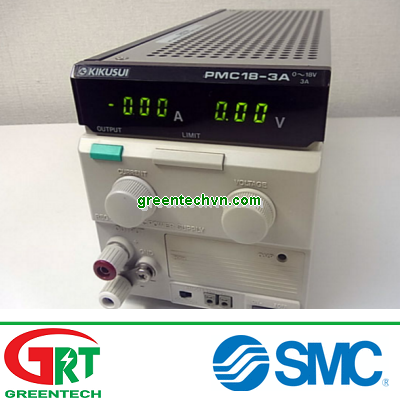

PMC18-3A | PMC 18-3A | Kukusui | Compact DC Power Supply | Bộ nguồn điện DC | Kikusui Vietnam

PMC-A Series

Compact DC Power Supply (Series regulated system, CV/CC) : 7 Models





 Outline

 Features

 Lineup

 Options (Related products)

PIA4810

Power Supplies Controller
The power supply controller capable of analog and digital control. It is equipped with the GPIB and RS-232C interfaces and 4 slots, which allow 4 each of PIA4800 Series-specific control boards to be installed. A control board is capable of analog control of 2 channels of DC power supplies or electronic loads; a total of 8 channels can be controlled



PIA4820

Power Supplies Controller
The expansion unit that can be connected to the PIA4810 or PIA4830 via a TP-BUS to provide additional control channels. In the same way as the PIA4810, it allows a maximum of 4 control boards to be installed.



PIA4850

Power Supplies Controller
The power supply controller only for digital control. It is equipped with the USB interface. And it is capable of digitally controlling of Kikusui PWR, PAS, PAM and PMR Series DC power supplies via the TP-BUS.



SH10

Option(s) for Power Supplies Controller
Discontinued.
Shunt Unit, 10A, for Models having output current rating of 2.5A to 10A



SC03-PIA

Option(s) for Power Supplies Controller
2-core shielded cable for connecting OP01-PIA control board with PMC-A series DC power supplies. (J2 connector: 14-pins)



SC04-PIA

Option(s) for Power Supplies Controller
2-core shielded cable for connecting OP02-PIA control board with PMC-A series DC power supplies .



SC05-PIA

Option(s) for Power Supplies Controller
2-core shielded cable for connecting OP01-PIA control board with PMC-A series DC power supplies . (J2 connector: 26-pins)



OP01-PIA

Option(s) for Power Supplies Controller
The control board designed exclusively for the PIA4810 and PIA4820. A single control board is capable of analog control of 2 channels of DC power supplies or electronic loads. The OP01-PIA is a full-control board with voltage and current setting and read-back functions,



OP02-PIA

Option(s) for Power Supplies Controller
The control board designed exclusively for the PIA4810 and PIA4820. A single control board is capable of analog control of 2 channels of DC power supplies or electronic loads. The OP02-PIA has only the voltage and current setting feature.



CH01-PMC

Option(s) for PMC-A/PMC series
Carrying handle



GP01-PMC

Option(s) for PMC-A/PMC series
Guard cap, Applicable for TYPE II models



OTC01-PMC

Option(s) for PMC-A/PMC series
Output terminal cover
