Thông số kỹ thuật:

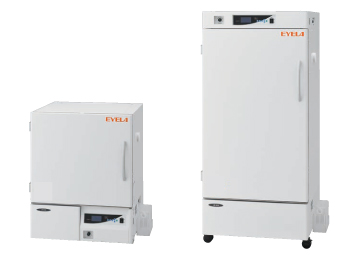

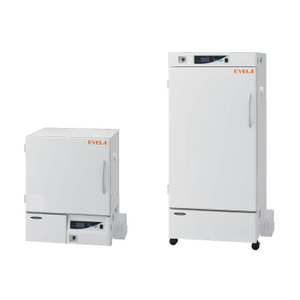

Product Low Temperature Incubator
Model LTE-510 LTE-1010
Cat. No. 274408 274418
Convection method Forced convection system
Temperature control range -10 to 60°C
Temperature control accuracy ECO. mode:±1.5°C (with refrigerator ON-OFF control)，土0.1 to 0.2°C (with heater control), CONT. mode: 士0.1 to 0.2°C
Temperature distribution Spatial temperature deviation 0.7°C or less, Temperature ramp 1.5°C or less (at 37°C) Spatial temperature deviation 1.5°C or less, Temperature ramp 2.0°C or less (at 37°C)
Safety features Earth leakage・overcurrent breaker, Variable independent overheat protector, Door switch, Refrigerator: High pressure switch, Overload relay (automatic recovery), Built-in outlet: Fuse, Condenser fan: Thermal fuse, Blower fan in chamber: Burnout prevention circuit, Temperature controller self-diagnostic function (upper and lower temperature limit alarm, heater・sensor disconnection, power failure, watch dog, refrigerator abnormal high pressure, overheat, door alarm, temperature ramp failure, heater SSR failure)
Temperature control ECO. mode: refrigerator ON-OFF, CONT. mode: heater PID control + refrigerator continuous operation
Setting・display (temperature) Membrane keypad digital setting・LCD digital display (min. 0.1°C)
Defrosting Automatic defrost (auto/timer), Manual defrost
Timer Auto-start, Auto-stop, Auto-start + Auto-stop
Program functions 1-step and 2-step programs, 24-hour cycle program, temperature ramp (up to 8 steps)
Temperature sensor Platinum resistance thermometer Pt100 ohms
Heater 550W 700W
Refrigerator・refrigerant Air-cooled, output 175W・R134a Air-cooled, output 300W・R134a
Fluorescent lamp Option
Inner chamber dimensions (mm) 600W x 500D x 500H 600W x 500D x 1000H
Chamber capacity 150L 300L
Shelf board load capacity Uniform load max. 15kg/shelf
Shelf board material PE coating
Number of shelf boards included 2 shelf boards 4 shelf boards
Shelf pitch・number of steps 30mm・11 steps 30mm・27 steps
Max. unit number of stacking Two-tier －
Exterior Bonded steel plate, melamine resin baked coating
Interior Stainless steel
Cable hole 1 location on the right side, 40mm ID
Built-in outlet 2 external ports, 100VAC Max. 4A 2 external ports, 100VAC Max. 2A
Ambient temperature range 5 to 35°C
Power input・supply voltage 4.6A, 1kVA・220VAC 50/60Hz 5.5A, 1.2kVA・220VAC 50/60Hz
Outer dimensions (mm) 700(808)W x 730(820)D×890H 700(808)W x 730(820)D x 1550H
Weight Approx. 92kg Approx. 145kg
Accessories Fixing bracket, Drainage tank, Drainage tank rack
