Thông số kỹ thuật:

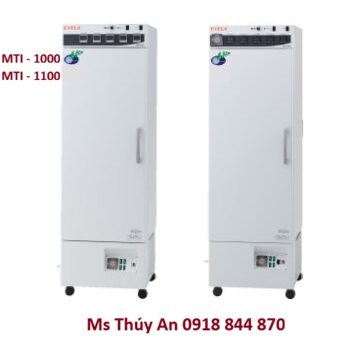

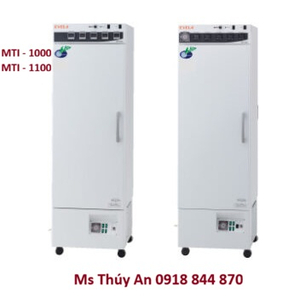

Product Multi-tier incubator
Model MTI-1000 MTI-1100
Cat. No. 283330 283340
Temperature control method Constant temperature control 2-step temperature control
External output － Chamber 1 to 5 measured temperature output
Temperature control range 5 to 50°C
Temperature control accuracy Chamber 1:±2.5°C or more, Chamber 2: ±1.5°C or more, Chamber 3 to 5:±1.0°C or more
Number of chambers 5 chambers
Temperature control Chamber 1 (bottom level) refrigerator ON-OFF control (NORM. mode), refrigerator ON-OFF + timer control (INT. mode), Other chambers heater PID control
Illumination 40W daylight-white straight tube LED lamps × 4
Program functions Illumination: 24-hour timer (minimum setting 15 minutes) ON, OFF setting
Heater 600W
Refrigerator・refrigerant Air-cooled, 400W output, R448A
Communication USB communication terminal
Inner built-in outlet Each chamber has one unit (maximum total of 0.5A for all five chambers)
Shelf load capacity・material Maximum uniform load: 25 kg per shelf; tempered glass
One chamber inner dimensions・capacity 400(375)W x 470D x 195H (mm)・approx. 37L・stainless steel
Ambient temperature range 5 to 30°C
Outer dimensions・weight 560W x 670(711)D x 1780H(mm)・approx. 160kg
Power input 15A, 1.5kVA
Power supply 100VAC　50/60Hz
Power utility 15A, 100VAC  (power plug included)
