Thông số kỹ thuật:
| Model Number | Volume | Barrel Inner Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 1001 | 1 mL | 4.61 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1002 | 2.5 mL | 7.29 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1005 | 5 mL | 10.30 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1010 | 10 mL | 14.57 mm | 60 mm | 1 MPa | 10 - 115 °C1 |
| 1025 | 25 mL | 23.03 mm | 60 mm | 0.7 MPa | 10 - 80 °C1 |
| 1050 | 50 mL | 32.54 mm | 60 mm | 0.7 MPa | 10 - 80 °C1 |
| 1100 | 100 mL | 32.54 mm | 120 mm | 0.7 MPa | 10 - 80 °C1 |
Tùy chọn chi tiết:
| 5495-35 | 500 µL | Gastight, Half-Height | PTFE Luer Lock (TLL) | Single Pack | |||
| 69000-35 | 500 µL | Gastight, Bubble Free Prime, Half-Height | Bubble Free Prime™ (BFP, 5/16"-28) | Single Pack | |||
| 8250-35 | 500 µL | Long-Life Gastight Half-Height | PTFE Luer Lock (TLL) | Single Pack | |||
| 87800 | 833 µL | Gastight | Luer Tip (LT) | No Needle Included | No Needle Included | Single Pack | |
| 10165379 | 1 mL | Gastight, Half-Height | ChemSeal (C, 1/4"-28) | Single Pack | |||
| 10165792 | 1 mL | Gastight, Half-Height | ChemSeal (C, 1/4"-28) | Single Pack | |||

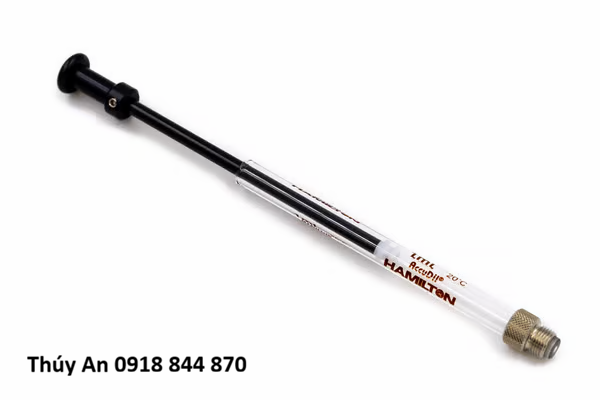

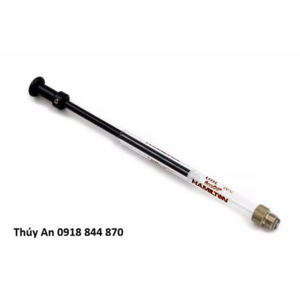

| 201200 | 1 mL | Gastight | AccuDil® (AD) | Single Pack | |||
| 201700 | 1 mL | Gastight | Diluter AccuDil® (DAD) | Single Pack | |||
| 203081 | 1 mL | Gastight | Fixed Needle (FN) | 3: Blunt | 2.00 inches (50.8 mm) | Single Pack | |
| 203082 | 1 mL | Gastight | Luer Tip Needle (LTN) | 5: Conical Side Port | 56 mm (2.20 inches) | Single Pack | |
| 203141 | 1 mL | Gastight | Luer Tip Needle (LTN) | 5: Conical Side Port | 56 mm (2.20 inches) | Single Pack | |
| 203540 | 1 mL | Gastight | ChemSeal (C, 1/4"-28) | Single Pack | |||
| 208335 | 1 mL | Gastight, Saltline | 5/16”-28 | Single Pack | |||
| 208641 | 1 mL | Gastight, Half-Height | ChemSeal (C, 1/4"-28) | No Needle Included | No Needle Included | ||
| 209682 | 1 mL | Gastight, Headspace | Glue-Free (GF) | 5: Conical Side Port | 56 mm (2.20 inches) | Single Pack | |
| 54661-01 | 1 mL | Gastight | ChemSeal (C, 1/4"-28) | Single Pack | |||
| 5495-38 | 1 mL | Gastight, Half-Height | PTFE Luer Lock (TLL) | Single Pack | |||
| 59000-35 | 1 mL | Gastight, Bubble Free Prime | Bubble Free Prime™ (BFP, 5/16"-28) | Single Pack | |||
| 69000-38 | 1 mL | Gastight, Bubble Free Prime, Half-Height | Bubble Free Prime™ (BFP, 5/16"-28) | Single Pack | |||
| CAL7649-01 | 1 mL | Gastight | Removable Needle (RN) | No Needle Included | No Needle Included | Calibrated, Single Pack | 1 |
