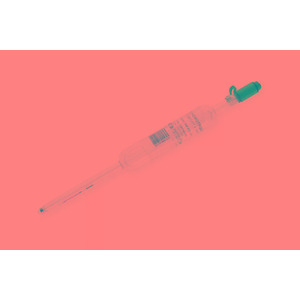

ChemoTrode ORP Specifications:
| Wetted Parts | Platinum GΙass Ceramic |
|---|---|
| Electrical Connector | S7 |
| Measuring Range | -2000 mV to +2000 mV |
| Electrolyte | Viscous 3 M KCl-LR |
| ORP Element | Pt ring |
| Membrane Shape | Spherical |
| Diaphragm | HP-Ceramic |
| Number of Diaphragms | 3 |
| Reference System | Hamilton Everef-F, Silver ion barrier included |
| Liquid Earth | No |
| Temperature Sensor | No |
| Serial Number | Yes |
| Recommended Storage | Hamilton Storage Solution or 3 M KCl |
| Certificate | No |
| ATEX Approval | II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db |
| IECEx Approval | II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db |
| Diameter | 30 mm |
| Autoclavable | No |
| Steam Sterilizable | Yes |
| CIP | Yes |
| Operating Temperature Range | 0 to 130 °C |
| Sample min Conductivity | 50 µS/cm |
| Pressure Range bar g | 0 to 6 bar |
| Shaft Diameter Below | 12 mm |
